Innolux 23.6inch LCD Display Panel Desktop LCD Monitor with 1920x1080 Pixels 250 cd/m² Brightness and 30PIN Connector

Name: Innolux 23.6inch LCD Display Panel Desktop LCD Monitor with 1920x1080 Pixels 250 cd/m² Brightness and 30PIN Connector
Brand: FOCUS VISION TECHNOLOGY LIMITED
SKU: M236HJJ-L31
Price: 30.00 USD
Availability: InStock

Brand Name:	Innolux
Model Number:	M236HJJ-L31
MOQ:	10pcs
Price:	Negotiation
Payment Terms:	T/T,Western Union,MoneyGram
Supply Ability:	3000pcs per week

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Rohs,CE,FCC

Quality:

Brand New Original

Package:

Original Industrial Packing

Material:

Glass

Brightness:

250ccd/m2

Resolution:

1920*1080pixels

Contrast Ratio:

300:1

Color:

16.7M

Working Life:

40k Hours

Connector:

30P

Touch Panel:

Without

Packaging Details:

Industrial packing

Highlight:

23.6inch Desktop lcd display

30PIN Desktop lcd display

M236HJJ-L31 laptop lcd monitor

Product Description

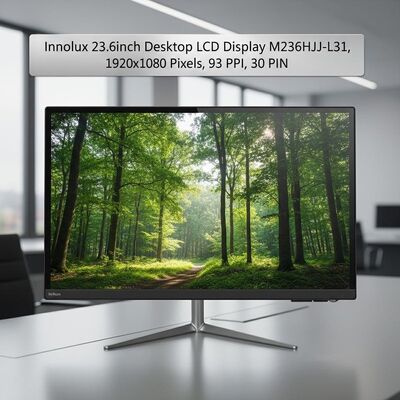

Innolux 23.6-inch Desktop LCD Display M236HJJ-L31

High-performance 23.6-inch LCD display panel with Full HD resolution, designed for desktop monitor applications. This MVA panel delivers excellent color reproduction and wide viewing angles.

Product Overview

The Innolux M236HJJ-L31 is a 23.6-inch diagonal a-Si TFT-LCD display panel featuring an integrated WLED backlight system. This panel operates within a temperature range of 0~50°C and offers WLED backlighting, reverse interface, matte surface, and TCO 6.0 compliance.

Technical Specifications

Brand	Innolux
Model Number	M236HJJ-L31
Diagonal Size	23.6 inches
Panel Type	a-Si TFT-LCD, LCM
Resolution	1920 * 1080 (FHD), 93 PPI
Active Area	521.28 * 293.22 mm
Brightness	250 cd/m² (Typical)
Contrast Ratio	3000:1 (Typical)
Viewing Angle	89/89/89/89 (Left/Right/Up/Down)
Display Mode	MVA, Normally Black, Transmissive
Response Time	20 ms (G to G, Typical)
Display Colors	16.7 Million, 72% NTSC
Signal Interface	LVDS (2 ch, 8-bit), 30-pin Connector
Input Voltage	5.0V (Typical)
Operating Temperature	0°C to 50°C
Storage Temperature	-20°C to 60°C
Panel Weight	2.31 ± 0.11 kg
Application	Desktop Monitor

Advanced Features

• Surface: Antiglare (Haze 25%) with Hard Coating (3H)
• Refresh Rate: 60Hz native, with embedded MEMC circuit supporting 120Hz
• Backlight: 4-string WLED with 40,000-hour lifespan
• Best View on Symmetry for optimal image quality

Product Images

Important Note: This model entered mass production in Q3 2014 and is currently discontinued. For integration into future products, we strongly recommend contacting Innolux or their distributor for the latest production status and specifications. The information provided is for reference only and should not be used as the sole basis for decision-making.
