43inch LCD TV Panel with 3840*2160pixels UHD Resolution 1.07B Color and 51 pin Connector

Name: 43inch LCD TV Panel with 3840*2160pixels UHD Resolution 1.07B Color and 51 pin Connector
Brand: FOCUS VISION TECHNOLOGY LIMITED
SKU: LC430DGE-FJM2
Price: 30.00 USD
Availability: InStock

Brand Name:	LG
Model Number:	LC430DGE-FJM2
MOQ:	10pcs
Price:	Negotiation
Payment Terms:	T/T,W,Western Union,MoneyGram
Supply Ability:	3000pcs per week

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Rohs,CE,FCC

Quality:

Brand New Original

Package:

Original Industrial Packing

Material:

Glass

Brightness:

390ccd/m2

Resolution:

3840*2160pixels

Contrast Ratio:

1100:1

Color:

1.07B

Working Life:

30k Hours

Connector:

51P

Touch Panel:

Without

Packaging Details:

Industrial packing

Highlight:

UHD3840 RGB ×2160 LCD TV Panel

LC430DGE-FJM2 LCD TV Panel

43inch Glass LCD TV Panel

Product Description

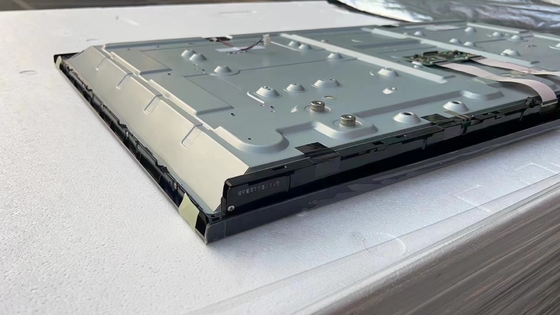

43-inch Glass LCD TV Panel LC430DGE-FJM2

The LC430DGE-FJM2 is a 43-inch diagonal a-Si TFT-LCD display panel from LG Display featuring UHD 3840*2160 resolution, 103 PPI pixel density, and 1.07 billion color support with 51-pin interface.

Product Overview

This LG Display panel features an integral WLED backlight system and IPS technology with normally black, transmissive display characteristics. Designed for television applications, it offers exceptional color reproduction and viewing angles.

Technical Specifications

Brand	LG Display
Model Number	LC430DGE-FJM2
Diagonal Size	43-inch
Panel Type	a-Si TFT-LCD, LCM
Resolution	3840*2160 UHD (103 PPI)
Pixel Format	RGBW Vertical Stripe
Active Area	941.184mm (W) * 529.416mm (H)
Brightness	390 cd/m² (Typical)
Contrast Ratio	1100:1 (Typical)
Viewing Angle	89/89/89/89 (Left/Right/Up/Down, CR≥10)
Response Time	6ms (Typical, G to G)
Display Colors	1.07 Billion (70% NTSC)
Backlight	WLED, 30,000 hours
Signal Interface	V-by-One 8 lane, 51 pins Connector
Input Voltage	12.7V (Typical)

Key Features

UHD 3840*2160 resolution with 103 PPI density
IPS technology for wide viewing angles
1.07 billion color support
WLED backlight with 30,000-hour lifespan
Surface treatment: Antiglare (Haze 3%), Hard coating (2H)
Multiple refresh rate support: 60Hz, 120Hz, 240Hz
Embedded MEMC circuit for motion enhancement

Environmental Specifications

Operating Temperature	0°C to 50°C
Storage Temperature	-20°C to 60°C

Physical Dimensions

Bezel Opening	945.2mm (W) * 533.4mm (H)
Outline Size	975.5mm (W) * 582.3mm (H)
Panel Weight	5.70kg (Typical) / 6.30kg (Maximum)

Important Notice

This model entered mass production in Q3 2016 and is currently discontinued. For integration into future products, we strongly recommend contacting LG Display or their authorized agents for the latest production status and specification details. The information provided is for reference only and should not be used as the sole basis for decision-making.
