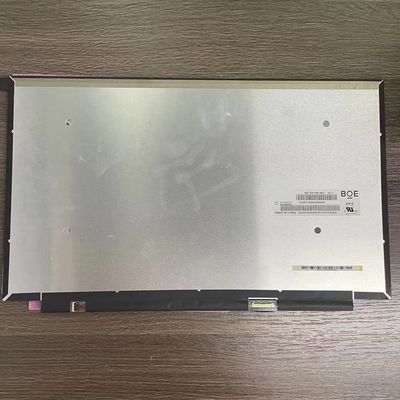

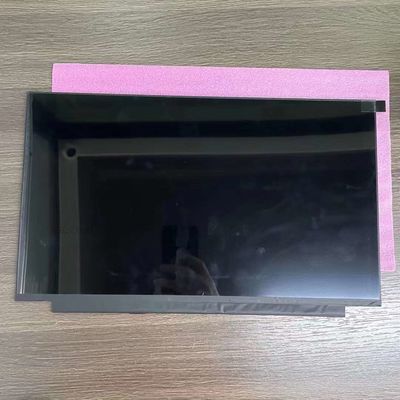

BOE 15.6inch LCD Display Panel NV156FHM-N65 with 1920x1080 Pixels 500cd/m2 Brightness and 30PIN Connector

Name: BOE 15.6inch LCD Display Panel NV156FHM-N65 with 1920x1080 Pixels 500cd/m2 Brightness and 30PIN Connector
Brand: FOCUS VISION TECHNOLOGY LIMITED
SKU: NV156FHM-N65
Price: 30.00 USD
Availability: InStock

Brand Name:	BOE
Model Number:	NV156FHM-N65
MOQ:	10pcs
Price:	Negotiation
Payment Terms:	T/T,W,Western Union,MoneyGram
Supply Ability:	3000pcs per week

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Rohs,CE,FCC

Quality:

Brand New Original

Package:

Original Industrial Packing

Material:

Glass

Brightness:

500ccd/m2

Resolution:

1920*1080pixels

Contrast Ratio:

800:1

Color:

1.06B

Working Life:

15k Hours

Connector:

30P

Touch Panel:

Without

Packaging Details:

Industrial packing

Highlight:

141PPI laptop lcd display

NV156FHM-N65 laptop lcd display

BOE 15.6inch laptop lcd display

Product Description

BOE 15.6-inch Laptop LCD Display NV156FHM-N65

The NV156FHM-N65 is a 15.6-inch diagonal a-Si TFT-LCD display panel from BOE Technology Group Co., Ltd., featuring an integral WLED backlight system with LED driver. This FHD 1920*1080 resolution display offers excellent image quality with 141 PPI pixel density, making it ideal for laptop applications.

Key Features

15.6-inch diagonal display with 1920*1080 FHD resolution
141 PPI pixel density for sharp, clear images
500 cd/m² typical luminance with 800:1 contrast ratio
Wide viewing angles: 85/85/85/85 (Left/Right/Up/Down)
10-bit color depth displaying 1.06 billion colors
eDP 1.4b interface with 30-pin connector
Antiglare, hard coating (3H) surface treatment
Supports multiple refresh rate configurations

Technical Specifications

Model Number	NV156FHM-N65
Active Area	344.16 * 193.59 mm
Outline Dimensions	350.66 * 216.25 * 2.6 mm
Panel Type	a-Si TFT-LCD, LCM
Pixel Format	RGB Vertical Stripe
Response Time	30 ms (Typical, Tr+Td)
Backlight System	10S6P WLED, 15K hours lifespan
Operating Temperature	0°C to 50°C
Storage Temperature	-20°C to 60°C
Vibration Resistance	1.5G (14.7 m/s²) maximum

Refresh Rate Options

This display supports multiple refresh rate configurations:

Standard 60Hz operation
120Hz with embedded MEMC circuit (60Hz input)
120Hz+120Hz (120Hz panel + 120Hz backlight)
240Hz with embedded MEMC circuit (60Hz input)

Important Note: Mass production of this model began in Q3 2019 and it remains in production. For integration into your products, we strongly recommend contacting BOE or their authorized agents for the latest production status and detailed specifications. The information provided here is for reference only and should not be used as the sole basis for decision-making.
