12.1 Inch Laptop LCD Screen HX121WX1-101 V3.0 1280x800 Pixels 300 cd/m² PC LCD Module

Name: 12.1 Inch Laptop LCD Screen HX121WX1-101 V3.0 1280x800 Pixels 300 cd/m² PC LCD Module
Brand: FOCUS VISION TECHNOLOGY LIMITED
SKU: HX121WX1-101
Price: 30.00 USD
Availability: InStock

Brand Name:	HYDIS
Model Number:	HX121WX1-101
MOQ:	10pcs
Price:	Negotiation
Payment Terms:	T/T,W,Western Union,MoneyGram
Supply Ability:	3000pcs per week

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Rohs,CE,FCC

Quality:

Brand New Original

Package:

Original Industrial Packing

Material:

Glass

Brightness:

300ccd/m2

Resolution:

1280*800pixels

Contrast Ratio:

700:1

Color:

16.7M

Working Life:

15k Hours

Connector:

40P

Touch Panel:

Without

Working Voltage:

3.3V

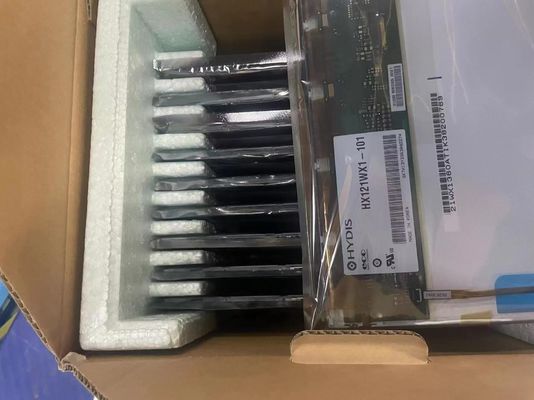

Packaging Details:

Industrial packing

Highlight:

12.1 inch Laptop Pc Lcd Module

HX121WX1-101 Pc Lcd Module

3.3V Laptop Lcd Module

Product Description

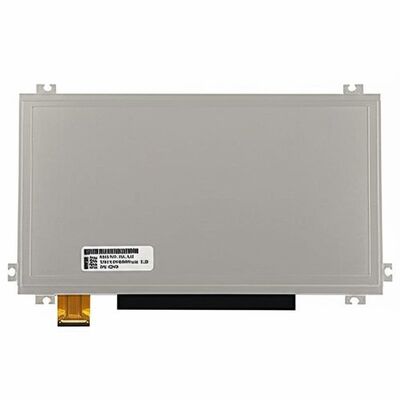

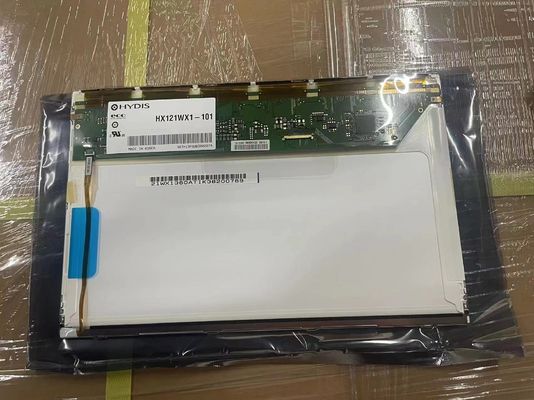

HYDIS 12.1-inch Laptop LCD Module HX121WX1-101 V3.0

This HYDIS 12.1-inch diagonal a-Si TFT-LCD display module features 1280*800 WXGA resolution, 300 cd/m² brightness, and LVDS interface. Designed for laptop applications with matte anti-glare treatment and wide operating temperature range.

Product Specifications

Brand	HYDIS
Model Number	HX121WX1-101
Diagonal Size	12.1 inches
Panel Type	a-Si TFT-LCD, LCM
Resolution	1280(RGB)*800 (WXGA), 124 PPI
Active Area	261.12 * 163.2 mm
Brightness	300 cd/m² (Typical)
Contrast Ratio	700:1 (Typical)
Response Time	30 ms (Typical)
Viewing Angle	90/90/90/90 (CR≥10)
Operating Mode	AFFS, Normally Black, Transmissive
Color Support	262K colors, 42% NTSC
Backlight	WLED [12S4P], 10K hours, With LED Driver
Interface	LVDS (1 ch, 6-bit), 40-pin connector
Power Supply	3.3V (Typical)
Operating Temperature	0°C to 50°C
Storage Temperature	-20°C to 60°C
Surface Treatment	Antiglare, Hard coating (2H)
Touch Panel	Without touch screen

Important Note: This model entered mass production in Q3 2008 and is now discontinued. The information provided is for reference only. For integration into your products, please contact HYDIS or their distributor for the latest production and specification details.
