BOE 12.7 Inch Laptop LCD Module NV127H4M-NX1 V3.0 40PIN 3.3V 2880x864 Pixels 500 cd/m² TFT LCD Display Panel

Name: BOE 12.7 Inch Laptop LCD Module NV127H4M-NX1 V3.0 40PIN 3.3V 2880x864 Pixels 500 cd/m² TFT LCD Display Panel
Brand: FOCUS VISION TECHNOLOGY LIMITED
SKU: NV127H4M-NX1 V3.0
Price: 30.00 USD
Availability: InStock

Brand Name:	BOE
Model Number:	NV127H4M-NX1 V3.0
MOQ:	10pcs
Price:	Negotiation
Payment Terms:	T/T,W,Western Union,MoneyGram
Supply Ability:	3000pcs per week

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Rohs,CE,FCC

Quality:

Brand New Original

Package:

Original Industrial Packing

Material:

Glass

Brightness:

500ccd/m2

Resolution:

2880*864pixels

Contrast Ratio:

1200:1

Color:

16.7M

Working Life:

15k Hours

Connector:

40P

Touch Panel:

Without

Packaging Details:

Industrial packing

Highlight:

12.7 Inch Laptop Tft Lcd Module

NV127H4M-NX1 Tft Lcd Module

40p Pc Lcd Module

Product Description

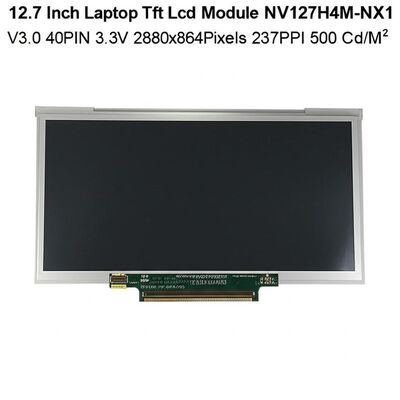

BOE 12.7 Inch Laptop LCD Module NV127H4M-NX1 V3.0

High-performance 12.7-inch diagonal a-Si TFT-LCD display panel with integrated WLED backlight system and LED driver. Features 2880*864 resolution, 237 PPI density, and 500 cd/m² brightness.

Key Features

120Hz refresh rate for smooth motion
100% DCI-P3 color gamut support
WLED backlight with 15,000-hour lifespan
eDP 1.4 interface with 40-pin connector
Advanced display technologies: PSR, SDRRS, CABC, BIST
500 cd/m² high brightness
1200:1 contrast ratio

Technical Specifications

Brand	BOE
Model P/N	NV127H4M-NX1
Diagonal Size	12.7 inches
Panel Type	a-Si TFT-LCD, LCM
Resolution	2880(RGB)*864 (237 PPI)
Active Area	308.448(W) * 92.534(H) mm
Outline Dimensions	313.54(H) * 101.33(V) * 4.3(D) mm
Luminance	500 cd/m² (Typical)
Contrast Ratio	1200:1 (Typical)
Response Time	25ms (Typical, Tr+Td)
Viewing Angle	89/89/89/89 (CR≥10)
Operating Mode	ADS, Normally Black, Transmissive
Support Color	16.7M colors, 100% DCI-P3
Light Source	WLED [10S6P], 15K hours, With LED Driver
Frame Rate	120Hz
Interface Type	eDP (4 Lanes), eDP1.4, HBR2 (5.4G/lane), 40-pin Connector
Power Supply	3.3V (Typical)
Operating Temperature	0°C to 50°C
Storage Temperature	-20°C to 55°C

Product Images

This model entered mass production in Q2 2022 and is currently in production. For the latest production status and detailed specifications, we recommend contacting BOE or their authorized distributors directly.
