43 Inch T430QVN03.0 Lcd Tv Panel UHD3840(RGB)×2160 UHD 103PPI 1.07B Color 51 pin

43 Inch T430QVN03.0 Lcd Tv Panel UHD3840(RGB)×2160 UHD 103PPI 1.07B Color 51 pin

Brand Name: AUO
Model Number: T430QVN03.0
MOQ: 10pcs
Price: Negotiation
Packaging Details: Industrial packing
Payment Terms: T/T,W, Western Union, MoneyGram
Detail Information
Place of Origin:
China
Certification:
Rohs,CE,FCC
Quality:
Brand New Original
Package:
Original Industrial Packing
Material:
Glass
Brightness:
350ccd/m2
Resolution:
3840*2160pixels
Contrast Ratio:
4000:1
Color:
1.06B
Working Life:
30k Hours
Connector:
51P
Touch Panel:
Without
Supply Ability:
3000pcs per week
Highlight:

43Inch Lcd Tv Panel

,

T430QVN03.0 Lcd Tv Panel

Product Description

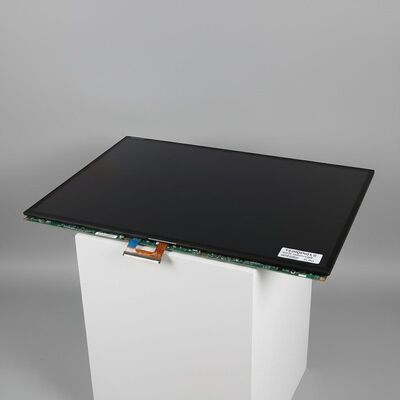

AUO 43Inch LCD TV open cell model T430QVN03.0 UHD3840(RGB)×2160, UHD 103PPI 1.07B Color 51pin



AU Optronics Corp. (hereafter called AUO) T430QVN03.0 CELL is a 43 inch diagonal a-Si TFT-LCD display panel product, without backlight, without touch screen. It features an operating temperature range of 0 ~ 50°C , a storage temperature range of -20 ~ 60°C . It's general features are summarized by einklcd in the following: Reverse I/F, 10 bit, Matte . Based on its features, einklcd recommend that this model be applied to TV Sets etc.Built-in 12 source chips driver IC. According to the information stored in einklcd this model mass production on Q4, 2016, Now this model is in production. We inputted this model's specification on Dec 22 2016 for the first time, and the latest update on Feb 12 2022. If you want to embed T430QVN03.0 CELL CELL in your future product, einklcd strongly recommend that you should contact with AUO or it's distributor to learn lateast production and specification detail. The T430QVN03.0 CELL production status marked on einklcd.com is for reference only and should not be used as the basis for the user's decision making.





Brand
AUO
Model P/N
T430QVN03.0 CELL
Diagonal Size
43"
Panel Type
a-Si TFT-LCD, CELL , FOB
Resolution
3840(RGB)×2160, UHD 103PPI
Pixel Format
RGB Vertical Stripe
Active Area
941.184(W)×529.416(H) mm
Bezel Opening
-
Outline Dim.
953(H)×543(V) ×1.4(D) mm
Treatment
Antiglare (Haze 2%), Hard coating (3H)
Luminance
0 cd/m²
Contrast Ratio
4000:1 (Typ.) (TM)
View Direction
Symmetry
Response Time
8 (Typ.)(G to G)
Viewing Angle
89/89/89/89 (Typ.)(CR≥10)
Operating Mode
AMVA3, Normally Black, Transmissive
Plate Thickness
0.50+0.50 mm
Transmittance
4.3% (Typ.)(with Polarizer)
Support Color
1.07B 73% NTSC
Light Source
No B/L
Weight
1.50Kgs (Typ.)
Designed For
43 Inch T430QVN03.0 Lcd Tv Panel UHD3840(RGB)×2160 UHD 103PPI  1.07B Color 51 pin 0
Frame Rate
60Hz
Touch Panel
Without
D-IC Detail
COF Built-in 12 source chips
Interface Type
V-by-One 8 lane , 51 pins Connector
Power Supply
12.0V (Typ.)
Environment
Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C

43 Inch T430QVN03.0 Lcd Tv Panel UHD3840(RGB)×2160 UHD 103PPI  1.07B Color 51 pin 1
