BOE 21.5 Inch LCD Display Panel HM215WU1-500 1920x1080 FHD 30 Pin LVDS TFT-LCD Module for Desktop Monitor

Name: BOE 21.5 Inch LCD Display Panel HM215WU1-500 1920x1080 FHD 30 Pin LVDS TFT-LCD Module for Desktop Monitor
Brand: FOCUS VISION TECHNOLOGY LIMITED
SKU: HM215WU1-500
Price: 30.00 USD
Availability: InStock

Brand Name:	BOE
Model Number:	HM215WU1-500
MOQ:	10pcs
Price:	Negotiation
Payment Terms:	T/T,W,Western Union,MoneyGram
Supply Ability:	3000pcs per week

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Rohs,CE,FCC

Quality:

Brand New Original

Package:

Original Industrial Packing

Resolution:

800*480pixels

Style:

50PIN IPS

Brightness:

350CD/M2

Color:

16.7M

Contrast Ratio:

500 :1

Working Life:

15K Hours

Packaging Details:

Industrial packing

Highlight:

102PPI LCD Display Panel

HM215WU1-500 LCD Display Panel

200cd/m2 PC LCD Module

Product Description

BOE 21.5 Inch Desktop LCD Display Panel HM215WU1-500

The BOE HM215WU1-500 is a 21.5-inch diagonal a-Si TFT-LCD display panel featuring Full HD 1920×1080 resolution with 102 PPI pixel density. This industrial-grade panel delivers 200 cd/m² luminance and is designed for desktop monitor applications with reliable performance and energy efficiency.

Key Specifications

Brand	BOE
Model Number	HM215WU1-500
Diagonal Size	21.5 inches
Panel Type	a-Si TFT-LCD, LCM
Resolution	1920(RGB)×1080, FHD 102PPI
Active Area	476.64(W) × 268.11(H) mm
Outline Dimensions	495.6(W) × 292.2(H) × 10.7(D) mm
Luminance	200 cd/m² (Typical)
Viewing Angle	45/45/25/40 (Typical, CR≥10)
Optimal Viewing	6 o'clock position
Color Depth	16.7M colors, 72% NTSC
Contrast Ratio	600:1 (Typical)
Response Time	1.5/3.5 ms (Typical, Tr/Td)
Refresh Rate	60Hz
Backlight System	16S4P WLED, 30,000 hours lifespan, No Driver
Signal Interface	LVDS (2 ch, 8-bit), 30 pins Connector
Voltage Supply	5.0V (Typical)
Operating Temperature	0°C to 50°C
Storage Temperature	-20°C to 60°C
Surface Treatment	Antiglare (Haze 25%), Hard coating (3H)
Weight	1.79 kg (Typical)

Key Features

Full HD 1920×1080 resolution with 102 PPI density
WLED backlight technology for energy efficiency
Energy Star 8.0 compliant design
TN panel technology with normally white, transmissive operation
Antiglare surface with 3H hardness coating
Multiple version compatibility (Normal, DO Repair, Samsung)
Designed for desktop monitor applications

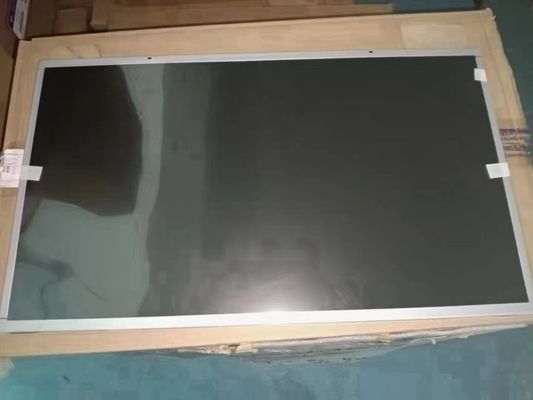

Product Image

Important Note: Production status information is for reference only and should not be used as the basis for decision making. For the latest production and specification details, please contact BOE or their authorized agents directly.
