Innolux 5.0 Inch LCD Display Panel 800RGBx480 WVGA TFT-LCD Module with 350CD/M2 Brightness for UMPC MID VOIP Phone

Name: Innolux 5.0 Inch LCD Display Panel 800RGBx480 WVGA TFT-LCD Module with 350CD/M2 Brightness for UMPC MID VOIP Phone
Brand: FOCUS VISION TECHNOLOGY LIMITED
SKU: EJ050NA-01G
Price: 30.00 USD
Availability: InStock

Brand Name:	Innolux
Model Number:	EJ050NA-01G
MOQ:	10pcs
Price:	Negotiation
Payment Terms:	T/T,W,Western Union,MoneyGram
Supply Ability:	3000pcs per week

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Rohs,CE,FCC

Quality:

Brand New Original

Package:

Original Industrial Packing

Resolution:

800*480pixels

Style:

50PIN IPS

Brightness:

350CD/M2

Color:

16.7M

Contrast Ratio:

500 :1

Working Life:

15K Hours

Packaging Details:

Industrial packing

Highlight:

EJ050NA-01G LCD Display Panel

UMPC LCD Display Panel

PC LCD Module 350Cd/M2

Product Description

Innolux 5.0 Inch UMPC MID VOIP Phone LCD Display Panel

Model: EJ050NA-01G | 800RGB*480 WVGA | 188PPI | 50P

Product Overview

The Innolux EJ050NA-01G is a 5.0-inch diagonal a-Si TFT-LCD display panel featuring 800(RGB)*480 WVGA resolution with 188 PPI pixel density. This display module includes an integral WLED backlight system and is designed for applications including portable navigation devices, VOIP phones, MID UMPC systems, and MP3/PMP players.

Key Specifications

Brand	Chimei Innolux
Model Number	EJ050NA-01G
Diagonal Size	5.0 inches
Panel Type	a-Si TFT-LCD, LCM
Resolution	800(RGB)*480, WVGA 188PPI
Active Area	108(W)*64.8(H) mm
Luminance	350 cd/m² (Typical)
Contrast Ratio	500:1 (Typical)
Viewing Angle	70/70/50/70 (CR≥10)
Color Depth	16.7M colors, 50% NTSC
Response Time	10/15 ms (Typical Tr/Td)
Refresh Rate	60Hz
Backlight	7S2P WLED, 15K hours lifespan
Signal Type	Parallel RGB (1 channel, 8-bit), 50 pins FPC
Operating Temperature	-20°C to 70°C
Storage Temperature	-30°C to 80°C
Mass	58.5g (Typical)

Key Features

TN technology with normally white, transmissive operation
WLED backlight system with 15,000 hours lifespan
Optimized for 6 o'clock viewing direction
Compact outline dimensions: 120.7(W)*76.3(H)*3.3(D) mm
Bezel opening: 110.6(W)*67.6(H) mm
Voltage supply: 3.3/10.4/16.0/-6.0V (DVDD/AVDD/VGH/VGL)
No touch screen included

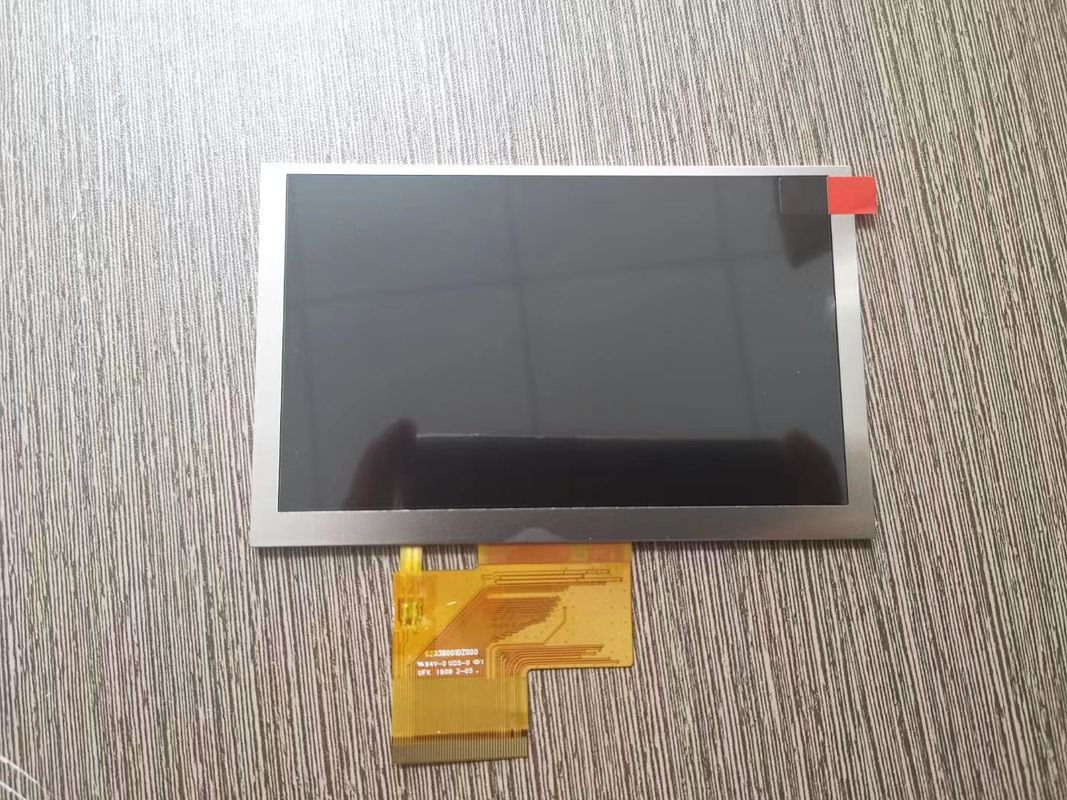

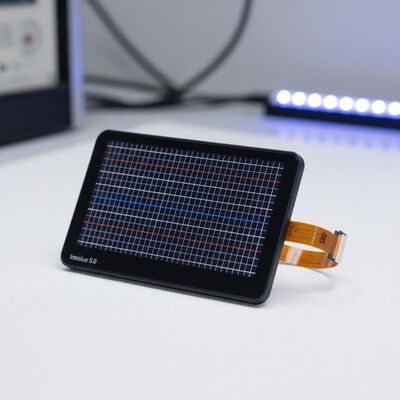

Product Images
