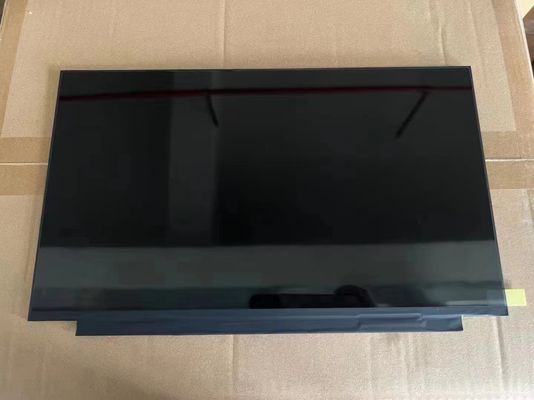

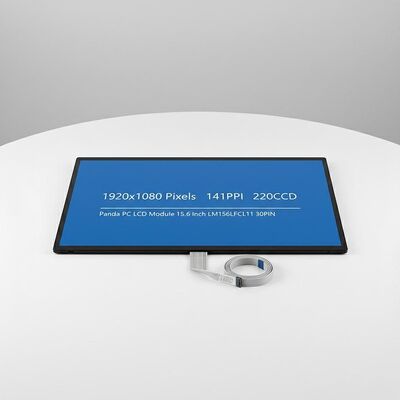

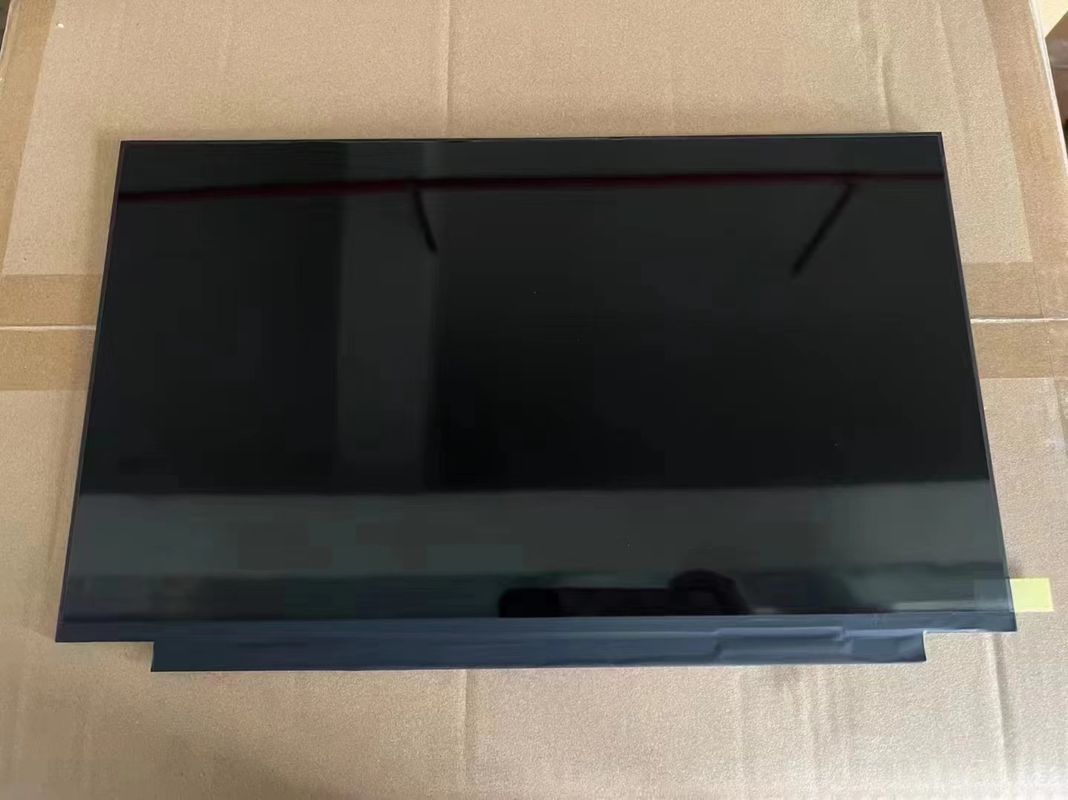

Panda 15.6 Inch PC LCD Module TFT-LCD Display with 1920x1080 Pixels 220cd/m2 Brightness and 30PIN Connector

Name: Panda 15.6 Inch PC LCD Module TFT-LCD Display with 1920x1080 Pixels 220cd/m2 Brightness and 30PIN Connector
Brand: FOCUS VISION TECHNOLOGY LIMITED
SKU: LM156LFCL11
Price: 30.00 USD
Availability: InStock

Brand Name:	Panda
Model Number:	LM156LFCL11
MOQ:	10pcs
Price:	Negotiation
Payment Terms:	T/T,W,Western Union,MoneyGram
Supply Ability:	3000pcs per week

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Rohs,CE,FCC

Quality:

Brand New Original

Package:

Original Industrial Packing

Material:

Glass

Brightness:

220ccd/m2

Resolution:

1920*1080pixels

Contrast Ratio:

1000:1

Color:

16.7M

Working Life:

15k Hours

Connector:

30P

Touch Panel:

Without

Packaging Details:

Industrial packing

Highlight:

LCM PC LCD Module

220CCD PC LCD Module

30PIN PC LCD Module

Product Description

15.6 Inch Panda PC LCD Module LM156LFCL11

High-performance 15.6-inch Oxide TFT-LCD display module designed for laptop applications, featuring Full HD resolution and advanced display technologies.

Key Specifications

Brand	PANDA
Model Number	LM156LFCL11
Diagonal Size	15.6 inches
Panel Type	Oxide TFT-LCD, LCM
Resolution	1920*1080 (FHD), 141 PPI
Active Area	344.16*193.59 mm
Brightness	220 cd/m² (Typical)
Contrast Ratio	1000:1 (Typical)
Viewing Angle	85/85/85/85 (Left/Right/Up/Down)
Response Time	25 ms (Typical)
Interface	DP (2 Lanes), eDP1.2, 30-pin Connector
Operating Temperature	0°C to 50°C

Advanced Features

FFS (Fringe Field Switching) technology for superior viewing angles
WLED backlight system with 15,000-hour lifespan
Integrated LED driver circuitry
Anti-glare hard coating (3H) surface treatment
Support for 262K colors with 45% NTSC color gamut
Multiple refresh rate options: 60Hz, 120Hz, and 240Hz with MEMC
Slim form factor with PCBA flat design (≤3.2mm thickness)

Technical Details

Operating Mode: FFS, Normally Black, Transmissive

Pixel Format: RGB Vertical Stripe

Outline Dimensions: 350.66*216.69*3.2 mm

Power Supply: 3.3V (Typical)

Storage Temperature: -20°C to 60°C

This LM156LFCL11 display module (Product Code: NCP002D) from Nanjing CEC Panda LCD Technology is recommended for laptop applications. Mass production began in Q4 2020 and the model remains in production. For the latest specifications and availability, please contact PANDA or their authorized representatives directly.
