BOE 10.1 Inch TFT-LCD Display Panel with 1280x800 Pixels and 430cd/m2 Brightness for PC LCD Module

Name: BOE 10.1 Inch TFT-LCD Display Panel with 1280x800 Pixels and 430cd/m2 Brightness for PC LCD Module
Brand: FOCUS VISION TECHNOLOGY LIMITED
SKU: GV101WXM-N85
Price: 30.00 USD
Availability: InStock

Brand Name:	BOE
Model Number:	GV101WXM-N85
MOQ:	10pcs
Price:	Negotiation
Payment Terms:	T/T,W,Western Union,MoneyGram
Supply Ability:	3000pcs per week

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Rohs,CE,FCC

Quality:

Brand New Original

Package:

Original Industrial Packing

Material:

Glass

Brightness:

430ccd/m2

Resolution:

1280*800pixels

Contrast Ratio:

800:1

Color:

16.7M

Working Life:

15k Hours

Connector:

40P

Touch Panel:

Without

Packaging Details:

Industrial packing

Highlight:

430CCD PC LCD Module

FCC PC LCD Module

149PIN TFT LCD Display Panel

Product Description

430CCD 40PIN BOE PC LCD Module 10.1 Inch GV101WXM-N85 149PIN 1280x800 Pixels

Product Overview

BOE Technology Group Co., Ltd. GV101WXM-N85 (Product Code: BOE0950) is a 10.1-inch diagonal a-Si TFT-LCD display panel with integrated WLED backlight system and LED driver. This panel features antiglare treatment and operates within a temperature range of -20°C to 70°C. Recommended applications include tablets and similar devices.

Technical Specifications

Brand	BOE
Model P/N	GV101WXM-N85
Diagonal Size	10.1"
Panel Type	a-Si TFT-LCD, LCM
Resolution	1280(RGB)×800, WXGA 149PPI
Pixel Format	RGB Vertical Stripe
Active Area	216.96(W)×135.6(H) mm
Outline Dimensions	228.2(W)×148.85(H)×4.9(D) mm
Surface Treatment	Antiglare (Haze 25%)
Luminance	430 cd/m² (Typ.)
Contrast Ratio	800:1 (Typ.)
Response Time	30ms (Typ.)
Viewing Angle	85/85/85/85 (Typ.)
Operating Mode	ADS, Normally Black, Transmissive
Color Support	16.7M 48% NTSC
Light Source	WLED, 15K hours, With LED Driver
Weight	250g (Max.)
Frame Rate	60Hz
Touch Panel	Without
Interface Type	LVDS (1 ch, 8-bit), eDP1.2, HBR1 (2.7G/lane), 40 pins Connector
Power Supply	3.3V (Typ.)
Operating Temperature	-20°C to 70°C
Storage Temperature	-20°C to 70°C

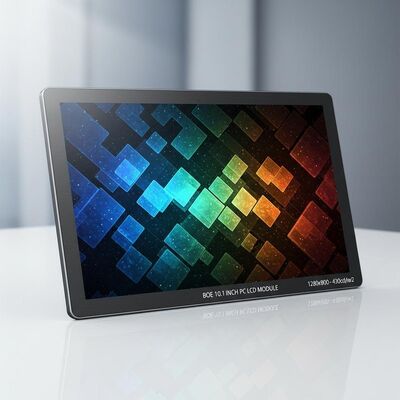

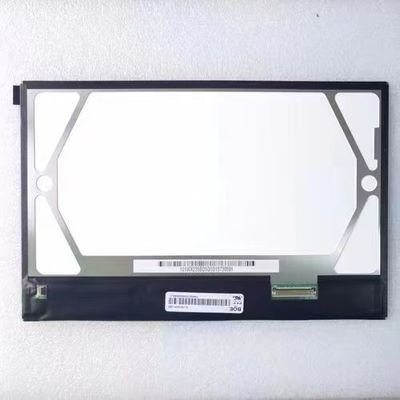

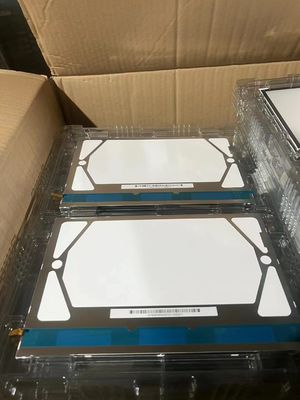

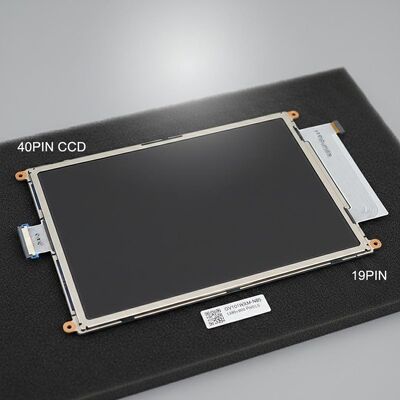

Product Images

Important Note: Mass production began Q1 2021. For the latest production status and specification details, contact BOE or their distributor directly. Information provided is for reference only and should not be used as the sole basis for decision making.
