BOE 10.1 Inch PC LCD Module with 1280x800 Pixels and 430cd/m2 Brightness TFT-LCD Display Panel

Name: BOE 10.1 Inch PC LCD Module with 1280x800 Pixels and 430cd/m2 Brightness TFT-LCD Display Panel
Brand: FOCUS VISION TECHNOLOGY LIMITED
SKU: GV101WXM-N85
Price: 30.00 USD
Availability: InStock

Brand Name:	BOE
Model Number:	GV101WXM-N85
MOQ:	10pcs
Price:	Negotiation
Payment Terms:	T/T,W,Western Union,MoneyGram
Supply Ability:	3000pcs per week

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Rohs,CE,FCC

Quality:

Brand New Original

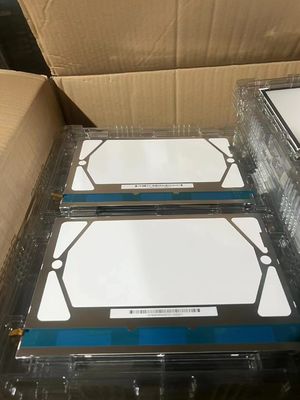

Package:

Original Industrial Packing

Material:

Glass

Brightness:

430ccd/m2

Resolution:

1280*800pixels

Contrast Ratio:

800:1

Color:

16.7M

Working Life:

15k Hours

Connector:

40P

Touch Panel:

Without

Packaging Details:

Industrial packing

Highlight:

430CCD PC LCD Module

FCC PC LCD Module

149PIN TFT LCD Display Panel

Product Description

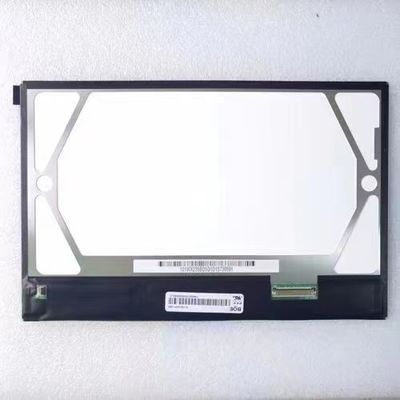

BOE GV101WXM-N85 10.1-inch LCD Display Module

The BOE GV101WXM-N85 is a 10.1-inch diagonal a-Si TFT-LCD display panel with integrated WLED backlight system and LED driver. This industrial-grade LCD module features a high-resolution WXGA display with wide viewing angles and robust environmental specifications suitable for pad and tablet applications.

Key Specifications

Brand	BOE
Model Number	GV101WXM-N85
Diagonal Size	10.1 inches
Panel Type	a-Si TFT-LCD, LCM
Resolution	1280(RGB)*800 (WXGA), 149 PPI
Active Area	216.96(W) * 135.6(H) mm
Outline Dimensions	228.2(W) * 148.85(H) * 4.9(D) mm
Brightness	430 cd/m² (Typical)
Contrast Ratio	800:1 (Typical)
Viewing Angle	85/85/85/85 (CR≥10)
Response Time	30ms (Typical, Tr+Td)
Operating Mode	ADS, Normally Black, Transmissive
Color Support	16.7M colors, 48% NTSC
Backlight	WLED, 15K hours lifespan, With LED Driver

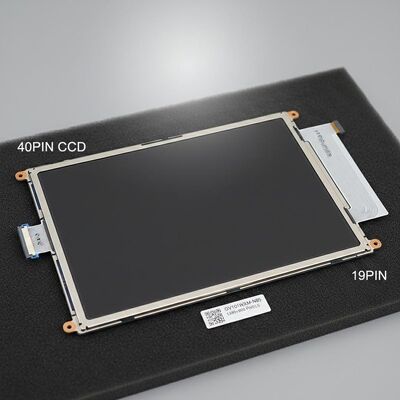

Interface	LVDS (1 ch, 8-bit), eDP1.2, HBR1 (2.7G/lane), 40-pin connector
Power Supply	3.3V (Typical)
Weight	250g (Maximum)

Environmental Specifications

Operating Temperature: -20°C to 70°C
Storage Temperature: -20°C to 70°C

Additional Features

Surface Treatment: Antiglare (Haze 25%)
Frame Rate: 60Hz
No Touch Panel
Reverse Interface
Matte Finish

Production Status: This model entered mass production in Q1 2021 and is currently in production. For the latest production status and detailed specifications, we recommend contacting BOE or their authorized distributors directly.
