LP173WFG-SPB1 LG PC LCD Module 17.3 Inch 40PIN 1980x1080 Pixels 300CCD

LP173WFG-SPB1 LG PC LCD Module 17.3 Inch 40PIN 1980x1080 Pixels 300CCD

Brand Name: LG
Model Number: LP173WFG-SPB1
MOQ: 10pcs
Price: Negotiation
Packaging Details: Industrial packing
Payment Terms: T/T,W, Western Union, MoneyGram
Detail Information
Place of Origin:
China
Certification:
Rohs,CE,FCC
Quality:
Brand New Original
Package:
Original Industrial Packing
Material:
Glass
Brightness:
300ccd/m2
Resolution:
1920*1080pixels
Contrast Ratio:
800:1
Color:
16.7M
Working Life:
30k Hours
Connector:
40P
Touch Panel:
Without
Supply Ability:
3000pcs per week
Highlight:

Antiglare PC LCD Module

,

40PIN PC LCD Module

,

300CCD TFT LCD Display Panel

Product Description

LG PC LCD Module 17.3Inch Size LP173WFG-SPB1 1 40PIN 1980*1080 Pixels 300CCD



LG Display Co., Ltd. (hereafter called LG Display) LP173WFG-SPB1 (Alias: LP173WFG (SP)(B1)) (Product Code: LGD0615) is a 17.3 inch diagonal a-Si TFT-LCD display panel product, with an integral WLED backlight system, With LED Driver , without touch screen. It features an operating temperature range of 0 ~ 50°C , a storage temperature range of -20 ~ 60°C , and the maximal vibration level of 1.0G (9.8 m/s²). It's general features are summarized by einklcd in the following: sRGB, 144Hz, WLED Backlight, With LED Driver, Reverse I/F, Matte, NVIDIA G-Sync , eDP1.3, PSR, SSC, G-sync. Based on its features, einklcd recommend that this model be applied to Laptop, Gaming etc. According to the information stored in einklcd this model mass production on Q1, 2019, Now this model is in production.  We inputted this model's specification on Apr 13 2020 for the first time, and the latest update on Feb 7 2023. If you want to embed LP173WFG-SPB1 LCM in your future product, einklcd strongly recommend that you should contact with LG Display or it's distributor to learn lateast production and specification detail. The LP173WFG-SPB1 production status marked on einklcd.com is for reference only and should not be used as the basis for the user's decision making.





Brand
LG Display
Model P/N
LP173WFG-SPB1

Diagonal Size
17.3"
Panel Type
a-Si TFT-LCD, LCM

Resolution
1920(RGB)×1080, FHD 127PPI
Pixel Format
RGB Vertical Stripe

Active Area
381.888(W)×214.812(H) mm
Bezel Opening
-

Outline Size
389.89(W)×238.31(H) ×3.5(D) mm
Surface
Antiglare, Hard coating (3H)

Brightness
300 cd/m² (Typ.)
Contrast Ratio
800:1 (Typ.) (TM)

Viewing Angle
80/80/80/80 (Min.)(CR≥10)
Display Mode
IPS, Normally Black, Transmissive

Best View on
Symmetry
Response Time
5 (Typ.)(G to G)

Display Colors
16.7M 72% NTSC
Lamp Type
WLED , 12K hours , With LED Driver

Frequency
144Hz
Touch Screen
Without

Shape Style
Slim (PCBA Flat, T≤3.2mm)
Application

Signal Interface
eDP (4 Lanes) , eDP1.3 , HBR2 (5.4G/lane) , 40 pins Connector

Input Voltage
3.3V (Typ.)

Environment
Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C

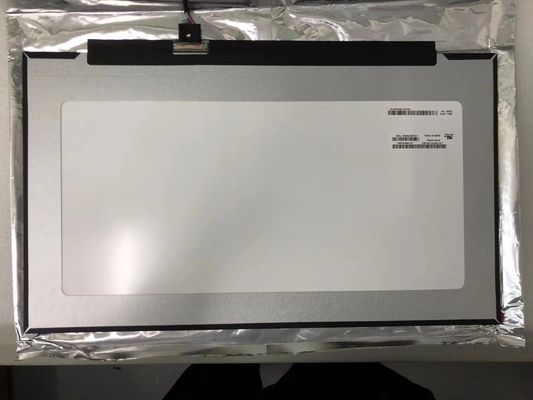

LP173WFG-SPB1 LG PC LCD Module 17.3 Inch 40PIN 1980x1080 Pixels 300CCD 0
