LG 17.3 Inch PC LCD Module with 1920x1080 Pixels and 300cd/m2 Brightness TFT-LCD Display Panel

Name: LG 17.3 Inch PC LCD Module with 1920x1080 Pixels and 300cd/m2 Brightness TFT-LCD Display Panel
Brand: FOCUS VISION TECHNOLOGY LIMITED
SKU: LP173WFG-SPB1
Price: 30.00 USD
Availability: InStock

Brand Name:	LG
Model Number:	LP173WFG-SPB1
MOQ:	10pcs
Price:	Negotiation
Payment Terms:	T/T,W,Western Union,MoneyGram
Supply Ability:	3000pcs per week

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Rohs,CE,FCC

Quality:

Brand New Original

Package:

Original Industrial Packing

Material:

Glass

Brightness:

300ccd/m2

Resolution:

1920*1080pixels

Contrast Ratio:

800:1

Color:

16.7M

Working Life:

30k Hours

Connector:

40P

Touch Panel:

Without

Packaging Details:

Industrial packing

Highlight:

Antiglare PC LCD Module

40PIN PC LCD Module

300CCD TFT LCD Display Panel

Product Description

LG LP173WFG-SPB1 17.3-inch PC LCD Module

Product Overview

17.3-inch diagonal a-Si TFT-LCD display panel with integrated WLED backlight system, featuring 1920*1080 FHD resolution, 144Hz refresh rate, and IPS technology for superior gaming and laptop applications.

Key Specifications

Brand	LG Display
Model Number	LP173WFG-SPB1
Diagonal Size	17.3 inches
Panel Type	a-Si TFT-LCD, LCM
Resolution	1920(RGB)*1080 (FHD), 127 PPI
Active Area	381.888(W) * 214.812(H) mm
Outline Dimensions	389.89(W) * 238.31(H) * 3.5(D) mm
Brightness	300 cd/m² (Typical)
Contrast Ratio	800:1 (Typical)
Viewing Angle	80/80/80/80 (CR≥10)
Display Mode	IPS, Normally Black, Transmissive
Response Time	5ms (Typical, G to G)
Display Colors	16.7M, 72% NTSC
Refresh Rate	144Hz
Signal Interface	eDP (4 Lanes), eDP1.3, HBR2 (5.4G/lane), 40-pin Connector
Input Voltage	3.3V (Typical)
Surface Treatment	Antiglare, Hard coating (3H)
Backlight	WLED, 12K hours, With LED Driver

Advanced Features

144Hz high refresh rate for smooth gaming performance
NVIDIA G-Sync compatibility
IPS technology for wide viewing angles
sRGB color gamut support
eDP 1.3 interface with Panel Self Refresh (PSR)
Spread Spectrum Clocking (SSC)
Slim profile design (PCBA Flat, T≤3.2mm)

Environmental Specifications

Operating Temperature	0°C to 50°C
Storage Temperature	-20°C to 60°C
Max Vibration Level	1.0G (9.8 m/s²)

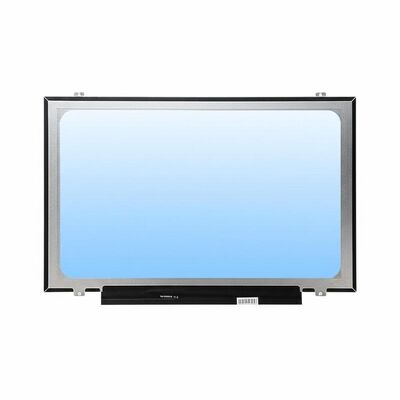

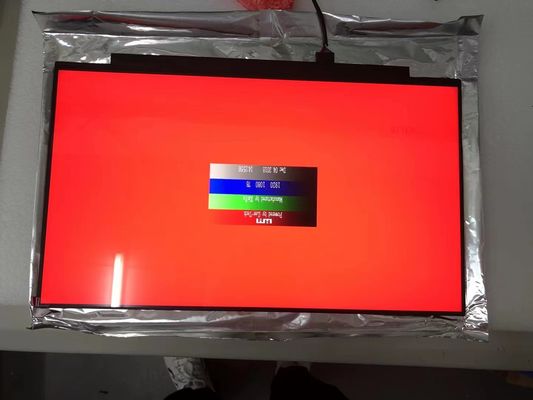

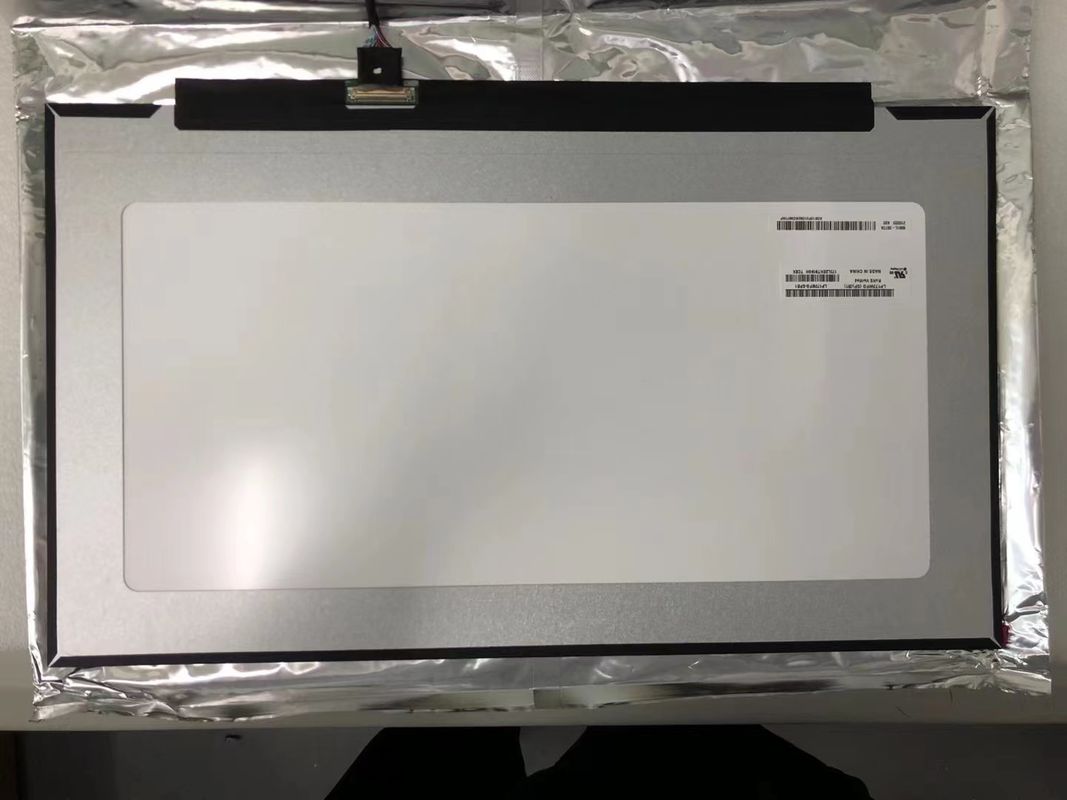

Product Image

Important Notice

Mass production began Q1 2019 and the model is currently in production. For the latest production status and detailed specifications, we strongly recommend contacting LG Display or their authorized distributors directly. The information provided here is for reference only and should not be used as the sole basis for decision-making.
