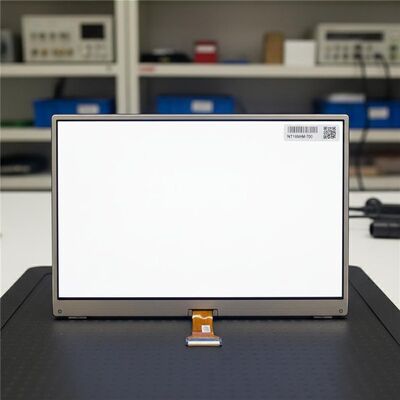

200CD/M2 30PIN BOE 11.6Inch TFT LCD Panel Monitor Module NT116WHM-T00

Name: 200CD/M2 30PIN BOE 11.6Inch TFT LCD Panel Monitor Module NT116WHM-T00
Brand: FOCUS VISION TECHNOLOGY LIMITED
SKU: NT116WHM-T00
Price: 30.00 USD
Availability: InStock

Brand Name:	BOE
Model Number:	NT116WHM-T00
MOQ:	10pcs
Price:	Negotiation
Payment Terms:	T/T,W,Western Union,MoneyGram
Supply Ability:	3000pcs per week

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Rohs,CE,FCC

Quality:

Brand New Original

Package:

Original Industrial Packing

Brightnerss:

200CD/M2

Connector:

30PIN

Color:

265k

Contrast Ratio:

500:1

Working Life:

15K Hours

Resolution:

1366*768pixels

Voltage Supply:

3.3V

Signal Type:

LCM

Packaging Details:

Industrial packing

Highlight:

200CD/M2 TFT LCD Panel

11.6Inch BOE Monitor Panel

NT116WHM-T00 TFT LCD Panel

Product Description

200CD/M² TFT LCD Panel, 30PIN BOE Monitor Panel 11.6 Inch NT116WHM-T00

The NT116WHM-T00 is a 11.6-inch a-Si TFT-LCD display module from BOE featuring WLED backlight, integrated LED driver, and On-Cell touch technology. This high-quality panel delivers 1366*768 WXGA resolution with 135 PPI for sharp, clear visuals.

Key Features

11.6-inch TFT-LCD display with 1366*768 WXGA resolution
135 PPI pixel density for sharp image quality
On-Cell touch technology for responsive input
WLED backlight with integrated LED driver
500:1 contrast ratio for vibrant visuals
eDP (1 Lane) interface with 30-pin connector
Wide operating temperature range: 0°C to 50°C

Technical Specifications

Manufacturer	BOE
Model Name	NT116WHM-T00
Screen Size	11.6 inch
Screen Type	LCM, a-Si TFT-LCD
Resolution	1366(RGB)*768 (WXGA)
Pixel Density	135 PPI
Active Area	256.125 * 144 mm (H*V)
Contrast Ratio	500:1 (Typ.)
Viewing Angle	45/45/20/40 (Typ.)(CR≥10)
Response Time	12 ms (Typ.)(Tr+Td)
Optimal Viewing	6 o'clock
Display Technology	TN, Normally White, Transmissive
Color Depth	262K
Backlight	WLED, 15K hours, With LED Driver
Refresh Rate	60Hz
Touchscreen	On-Cell Touch
Interface	eDP (1 Lane), 30 pins Connector
Voltage Supply	3.3V (Typ.)
Operating Temperature	0°C to 50°C
Storage Temperature	-20°C to 60°C

Application

This display module is specifically designed for laptop applications, offering reliable performance and high-quality visual output for portable computing devices.

Important Note: This model is currently in mass production. For the latest production status and detailed specifications, we strongly recommend contacting BOE or their authorized agents directly. The information provided here is for reference purposes only and should not be used as the sole basis for decision-making.
