BOE LM133LF8L02 13.3Inch 300CD/M2 1920x1080pixels PC LCD Module Laptop Monitor Panel

Name: BOE LM133LF8L02 13.3Inch 300CD/M2 1920x1080pixels PC LCD Module Laptop Monitor Panel
Brand: FOCUS VISION TECHNOLOGY LIMITED
SKU: LM133LF8L02
Price: 30.00 USD
Availability: InStock

Brand Name:	PANDA
Model Number:	LM133LF8L02
MOQ:	10pcs
Price:	Negotiation
Payment Terms:	T/T,W,Western Union,MoneyGram
Supply Ability:	3000pcs per week

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Rohs,CE,FCC

Quality:

Brand New Original

Package:

Original Industrial Packing

Brightnerss:

300CD/M2

Connector:

30PIN

Color:

16.7M

Contrast Ratio:

1000:1

Working Life:

15K Hours

Resolution:

1920*1080pixels

Voltage Supply:

3.3V

Signal Type:

EDP

Packaging Details:

Industrial packing

Highlight:

EDP PC LCD Module

13.3Inch PC LCD Module

166PPI Laptop Monitor Panel

Product Description

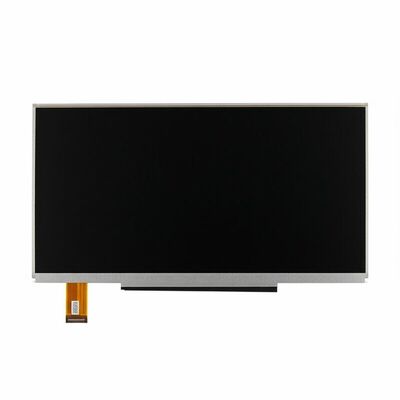

BOE LM133LF8L02 PC LCD Module

Product Overview

The LM133LF8L02 is a 13.3-inch diagonal Oxide TFT-LCD display panel from Nanjing CEC Panda LCD Technology Co., Ltd. (PANDA). This high-performance laptop monitor panel features a 1920*1080 resolution with 166 PPI density and 300 cd/m² brightness, making it ideal for professional laptop applications.

Key Specifications

Display Size	13.3 inches diagonal
Resolution	1920 * 1080 pixels (Full HD)
Pixel Density	166 PPI
Brightness	300 cd/m²
Interface	30-pin eDP 1.3
Backlight	WLED with integrated LED Driver
Surface	Matte finish
Operating Temperature	0°C to 50°C
Storage Temperature	-20°C to 60°C

Product Features

High-quality Oxide TFT-LCD technology
sRGB color gamut support
Reverse interface compatibility
Integrated WLED backlight system
Built-in LED driver
Matte anti-glare surface
eDP 1.3 interface standard

Application Recommendations

This display module is specifically designed for laptop applications, offering excellent image quality and performance for professional and consumer computing devices.

Product Images

Production Information

Mass production began in Q1 2020 and the model is currently in active production. Product code: NCP0045.

Important Note: The production status information provided is for reference only. For integration into your products, we strongly recommend contacting PANDA or their authorized agents for the latest production status and detailed specifications.
