BOE Monitor Panel 27Inch 300CD/M2 1920x1080 Pixels 30PIN PC LCD Module for Desktop Monitor

Name: BOE Monitor Panel 27Inch 300CD/M2 1920x1080 Pixels 30PIN PC LCD Module for Desktop Monitor
Brand: FOCUS VISION TECHNOLOGY LIMITED
SKU: MV270FHM-N60
Price: 30.00 USD
Availability: InStock

Brand Name:	BOE
Model Number:	MV270FHM-N60
MOQ:	10pcs
Price:	Negotiation
Payment Terms:	T/T,W,Western Union,MoneyGram
Supply Ability:	3000pcs per week

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Rohs,CE,FCC

Quality:

Brand New Original

Package:

Original Industrial Packing

Brightnerss:

300CD/M2

Connector:

30PIN

Color:

16.7M

Contrast Ratio:

1000:1

Working Life:

30K Hours

Resolution:

1920*1080pixels

Voltage Supply:

3.0V

Signal Type:

EDP

Packaging Details:

Industrial packing

Highlight:

EDP BOE Monitor Panel

27Inch BOE Monitor Panel

81PPI Laptop LCD display

Product Description

BOE MV270FHM-N60 27-Inch LCD Monitor Panel

300 cd/m² brightness, 81 PPI, 30-pin interface, 1920*1080 Full HD resolution

Product Overview

BOE Technology Group MV270FHM-N60 is a 27.0-inch diagonal a-Si TFT-LCD display panel with integrated WLED backlight system. This industrial-grade panel features matte surface treatment, wide viewing angles, and robust environmental specifications suitable for desktop monitor applications.

Technical Specifications

Panel Brand	BOE
Panel Model	MV270FHM-N60
Panel Size	27.0 inches
Panel Type	a-Si TFT-LCD, LCM
Resolution	1920(RGB)*1080 (FHD), 81 PPI
Display Area	597.888(W) * 336.312(H) mm
Outline Dimensions	611.5(W) * 355.8(H) * 15.2(D) mm
Surface Treatment	Antiglare (Haze 25%), Hard coating (3H)
Brightness	300 cd/m² (Typical)
Contrast Ratio	1000:1 (Typical)
Viewing Angle	89/89/89/89 (Left/Right/Up/Down)
Display Mode	ADS, Normally Black, Transmissive
Response Time	14 ms (Typical, G to G)
Display Colors	16.7M, 72% NTSC
Backlight System	22S4P WLED, 30K hours lifespan
Refresh Rate	60Hz
Signal Interface	LVDS (2 ch, 8-bit), 30-pin connector
Input Voltage	5.0V (Typical)
Panel Weight	3.49 kg (Typical)
Operating Temperature	0°C to 50°C
Storage Temperature	-20°C to 60°C
Vibration Resistance	1.5G (14.7 m/s²) maximum
Application	Desktop Monitor

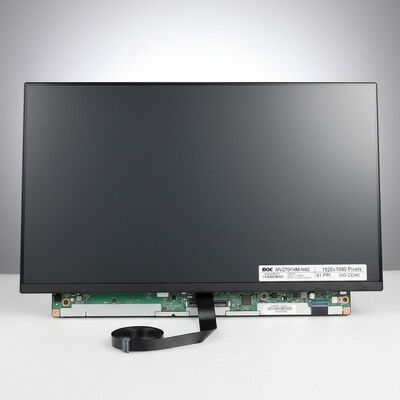

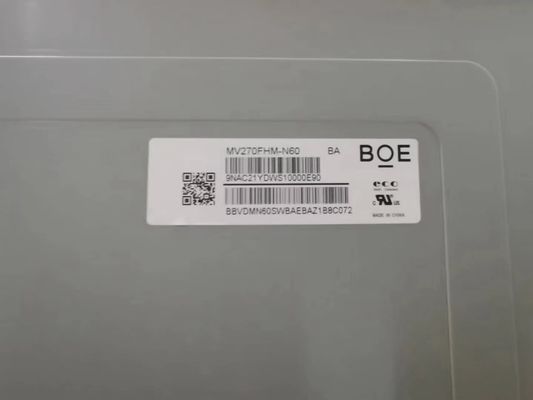

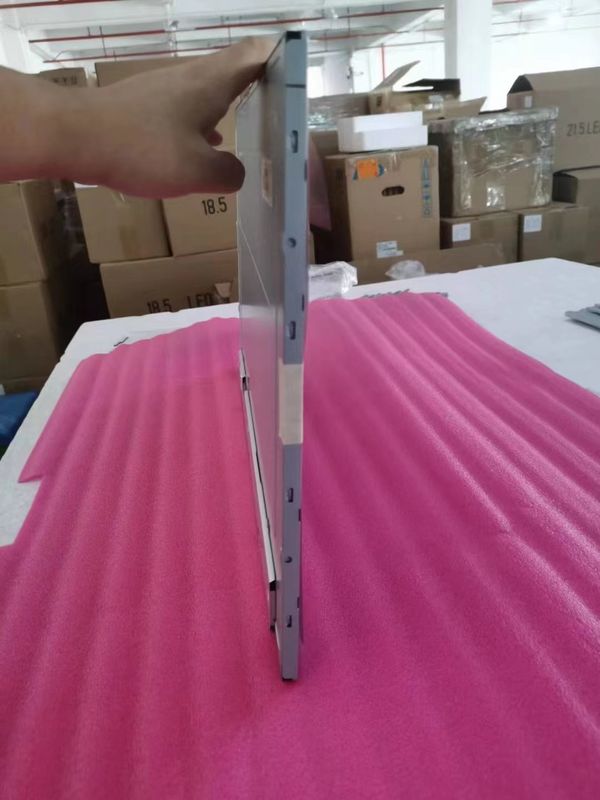

Product Images

Note: Production status and specifications are for reference only. For latest production details and technical specifications, please contact BOE or their authorized distributors.
