300CD/M2 BOE Monitor Panel 30PIN 81PPI 27Inch MV270FHM-N60 1920x1080 Pixels

BOE 300CD/M2 30PIN 81PPI Laptop Monitor Panel PC LCD display 27Inch MV270FHM-N60 1920*1080pixels

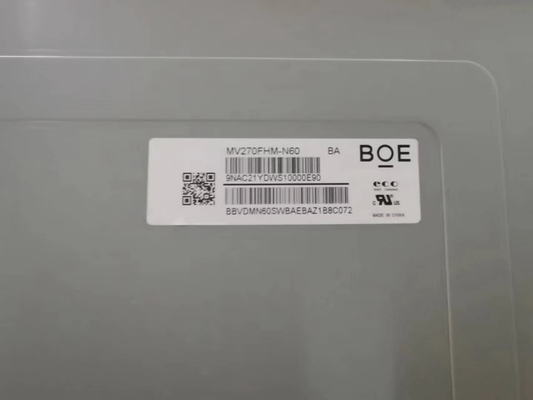

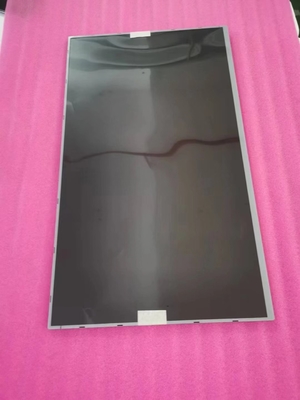

BOE Technology Group Co., Ltd. (hereafter called BOE) MV270FHM-N60 is a 27.0 inch diagonal a-Si TFT-LCD display panel product, with an integral WLED backlight system, without backlight driver, without touch screen. It features an operating temperature range of 0 ~ 50°C , a storage temperature range of -20 ~ 60°C , and the maximal vibration level of 1.5G (14.7 m/s²). It's general features are summarized by Panelook in the following: WLED Backlight, Matte , TCO8.0 ES8.0. Based on its features, Einklcd recommend that this model be applied to Desktop Monitor etc. According to the information stored in einklcd this model mass production on Q4, 2021, Now this model is in production. We inputted this model's specification on Feb 13 2022 for the first time, and the latest update on Aug 3 2022. If you want to embed MV270FHM-N60 LCM in your future product, einklcd strongly recommend that you should contact with BOE or it's distributor to learn lateast production and specification detail. The MV270FHM-N60 production status marked on einklcd.com is for reference only and should not be used as the basis for the user's decision making.

Panel Brand

BOE

Panel Model

MV270FHM-N60
Panel Size

27.0"

Panel Type:

a-Si TFT-LCD, LCM
Resolution

1920(RGB)×1080, FHD, 81PPI Pixel

Format

RGB Vertical Stripe
Display Area

597.888(W)×336.312(H) mmBezel Opening-
Outline Size

611.5(W)×355.8(H) ×15.2(D) mm

SurfaceAntiglare (Haze 25%), Hard coating (3H)
Brightness300 cd/m² (Typ.)Contrast Ratio1000:1 (Typ.) (TM)
Viewing Angle89/89/89/89 (Typ.)(CR≥10) Left / Right / Up / DownDisplay ModeADS, Normally Black, Transmissive [Panelook copyright, copy is strictly prohibited]
IPS Family: AAS, ADS, AHVA, FFS, HIS, IPS, New Mode2, PLS, SFT, Vistarich
VA Family: ASV, FSA, HVA, MVA, PVA, SVA, UV²A, VA
Best View onSymmetryResponse Time14 (Typ.)(G to G)
Display Colors16.7M 72% NTSCLamp Type22S4P WLED , 30K hours , Without Driver
Frequency60HzTouch ScreenWithout
Panel Weight3.49Kgs (Typ.)ApplicationDesktop Monitor
Signal InterfaceLVDS (2 ch, 8-bit) , 30 pins Connector
Input Voltage5.0V (Typ.)
EnvironmentOperating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C
