BOE 400CD/M2 30PIN 15.6 Inch PC LCD Module Laptop Monitor Panel TFT-LCD Display NV156FHM-N6B

Name: BOE 400CD/M2 30PIN 15.6 Inch PC LCD Module Laptop Monitor Panel TFT-LCD Display NV156FHM-N6B
Brand: FOCUS VISION TECHNOLOGY LIMITED
SKU: NV156FHM-N6B
Price: 30.00 USD
Availability: InStock

Brand Name:	BOE
Model Number:	NV156FHM-N6B
MOQ:	10pcs
Price:	Negotiation
Payment Terms:	T/T,W,Western Union,MoneyGram
Supply Ability:	3000pcs per week

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Rohs,CE,FCC

Quality:

Brand New Original

Package:

Original Industrial Packing

Brightnerss:

400CD/M2

Connector:

30PIN

Color:

16.7M

Contrast Ratio:

1500:1

Working Life:

15K Hours

Resolution:

1920*1080pixels

Voltage Supply:

3.3V

Signal Type:

EDP

Packaging Details:

Industrial packing

Highlight:

400CD/M2 Laptop Monitor Panel

141PPI Laptop Monitor Panel

BOE PC LCD display

Product Description

BOE 400CD/M2 30PIN 141PPI Laptop Monitor Panel

15.6 Inch NV156FHM-N6B LCD Display

The NV156FHM-N6B is a 15.6-inch diagonal a-Si TFT-LCD display panel from BOE Technology Group Co., Ltd., featuring an integrated WLED backlight system with LED driver. This high-performance display is designed for laptop applications and offers exceptional visual quality with professional-grade specifications.

Key Features

Full HD 1920*1080 resolution with 141 PPI density
400 cd/m² typical brightness with 1500:1 contrast ratio
100% sRGB color gamut supporting 16.7 million colors
AMD FreeSync technology for smooth visuals
eDP 1.3 interface with 30-pin connector
Anti-glare surface with hard coating (3H)
Multiple refresh rate options including 120Hz and 240Hz modes
Power saving features: PSR, CABC, BIST

Technical Specifications

Panel Brand	BOE
Panel Model	NV156FHM-N6B
Panel Size	15.6 inch
Panel Type	a-Si TFT-LCD, LCM
Resolution	1920(RGB)*1080 (FHD)
Pixel Density	141 PPI
Display Area	344.16mm * 193.59mm
Outline Dimensions	350.66mm * 205.24mm * 5mm
Brightness	400 cd/m² (Typical)
Contrast Ratio	1500:1 (Typical)
Viewing Angle	89/89/89/89 (CR≥10)
Response Time	30ms (Typical, Tr+Td)
Display Colors	16.7M, 100% sRGB
Backlight	11S4P WLED, 15K hours
Refresh Rate	60Hz base, up to 240Hz with MEMC
Interface	eDP (2 Lanes), eDP1.3, 30-pin connector
Input Voltage	3.3V (Typical)
Operating Temperature	0°C to 50°C
Storage Temperature	-20°C to 60°C

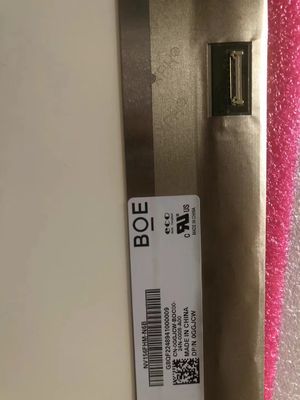

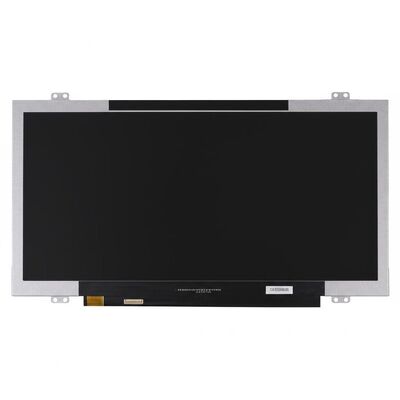

Product Image

Production Note: This model entered mass production in Q2 2020 and is currently in production. For the latest production status and detailed specifications for integration into your products, we strongly recommend contacting BOE or their authorized agents directly.
