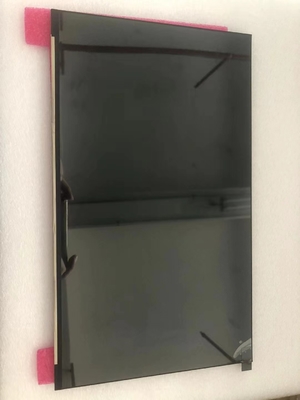

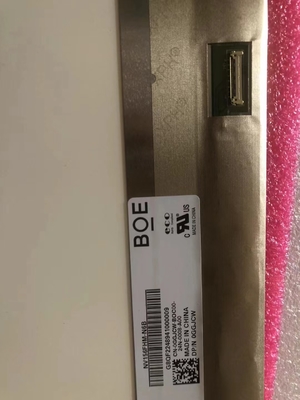

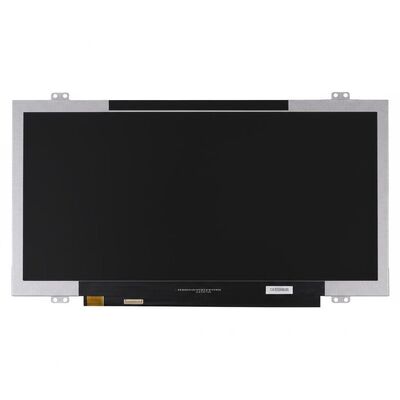

BOE 400CD/M2 30PIN 141PPI Laptop Monitor Panel PC LCD Display 15.6 Inch NV156FHM-N6B

BOE 400CD/M2 30PIN 141PPI Laptop Monitor Panel PC LCD display 15.6 Inch NV156FHM-N6B for computer

NV156FHM-N6B is a 15.6" diagonal a-Si TFT-LCD display panel product from BOE Technology Group Co., Ltd. (hereafter called BOE), with an integral WLED backlight system, With LED Driver , without touch screen. It features an operating temperature range of 0 ~ 50°C , a storage temperature range of -20 ~ 60°C , and the maximal vibration level of 1.5G (14.7 m/s²). It's general features are summarized by Einklcd in the following: sRGB, WLED Backlight, With LED Driver, Reverse I/F, Matte, AMD FreeSync , PSR, BIST, CABC, eDP1.3. Based on its features, einklcd recommend that this model be applied to Laptop etc. According to the information stored in einklcd this model mass production on Q2, 2020, Now this model is in production. We inputted this model's specification on Jun 18 2021 for the first time, and the latest update on Feb 21 2022. If you want to embed the LCM in your future product, einklcd strongly recommend that you should contact with BOE or it's agent to learn lateast production and specification detail of NV156FHM-N6B. The production status marked on einklcd.com is for reference only and should not be used as the basis for the user's decision making.

Panel Brand

BOE

Panel Model

NV156FHM-N6B
Panel Size

15.6"Panel

Type

a-Si TFT-LCD, LCM
Resolution

1920(RGB)×1080, FHD, 141PPI Pixel FormatRGB Vertical Stripe
Display Area 344.16(W)×193.59(H) mmBezel Opening-
Outline Size350.66(W)×205.24(H) ×5(D) mmSurfaceAntiglare, Hard coating (3H)
Brightness400 cd/m² (Typ.)Contrast Ratio1500:1 (Typ.) (TM)
Viewing Angle89/89/89/89 (Typ.)(CR≥10) Left / Right / Up / DownDisplay ModeHADS, Normally Black, Transmissive
Best View onSymmetryResponse Time30 (Typ.)(Tr+Td)
Display Colors16.7M 100% sRGBLamp Type11S4P WLED , 15K hours , With LED Driver
Frequency60Hz [Panelook copyright, copy is strictly prohibited]
120Hz (60HZ Input) : Embedded MEMC Circuit
120Hz+120Hz : 120Hz Panel+120Hz Backlight
240Hz (60HZ Input) : Embedded MEMC CircuitTouch ScreenWithout
Shape StyleSlim (PCBA Bent, T≤3.0mm)ApplicationLaptop
Signal InterfaceeDP (2 Lanes) , eDP1.3 , HBR1 (2.7G/lane) , 30 pins Connector
Input Voltage3.3V (Typ.)
EnvironmentOperating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C
