PVI ET047TC1 4.7inch E Ink Display EPD 540x960 Pixels For Mobile Phone Cell Phone

Name: PVI ET047TC1 4.7inch E Ink Display EPD 540x960 Pixels For Mobile Phone Cell Phone
Brand: FOCUS VISION TECHNOLOGY LIMITED
SKU: ET047TC1
Price: 30.00 USD
Availability: InStock

Brand Name:	PVI
Model Number:	ET047TC1
MOQ:	10pcs
Price:	Negotiation
Payment Terms:	T/T,W,Western Union,MoneyGram
Supply Ability:	3000pcs per week

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Rohs,CE,FCC

Quality:

Brand New Original

Package:

Original Industrial Packing

Version:

Original Package

Color:

White And Black

Meterial:

Glass

Packaging Details:

Industrial packing

Highlight:

540x960 E ink display

4.7inch E ink display

EPD e ink screen

Product Description

PVI ET047TC1 4.7-inch E Ink Display

This 4.7-inch diagonal EPD display panel features 540*960 qHD resolution with 235 PPI, designed specifically for wearable mobile phones and cell phone applications. The E Ink display operates without backlight and touch screen functionality.

Product Overview

The ET047TC1 is a flexible EPD display with plastic substrate, supporting both landscape and portrait orientations with reflective technology. Originally mass produced in Q2 2015, this model is now discontinued.

Technical Specifications

Brand	E Ink
Model	ET047TC1
Display Type	EPD (Electronic Paper Display)
Diagonal Size	4.7 inch
Resolution	540 * 960 pixels (qHD)
Pixel Density	235 PPI
Active Area	58.32mm (H) * 103.68mm (V)
Outline Dimensions	62.1mm (H) * 115.2mm (V) * 0.75mm (D)
Weight	6.60 ± 0.70g
Contrast Ratio	16:1 (Typical, Reflective)
Color Support	Grayscale
Backlight	No
Touch Panel	Without
Interface	Parallel Data (1ch, 8-bit), 44-pin connector
Frame Rate	85Hz
Operating Temperature	0°C to 50°C
Storage Temperature	-25°C to 70°C

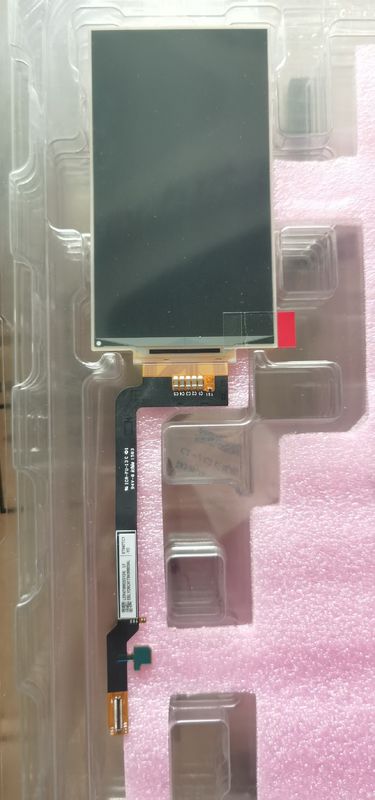

Product Image

Important Notice

This model is discontinued. Einklcd strongly recommends contacting E Ink or its distributor for the latest production and specification details before embedding the ET047TC1 EPD in future products. The production status and specifications provided are for reference only and should not be used as the basis for decision-making.

All specification details are based on datasheet information and are subject to verification with the manufacturer.
