BOE 300CD/M2 14 Inch Laptop Monitor Panel with 1920x1080 Resolution PC LCD Module

Brand Name:	BOE
Model Number:	NV140FHM--N69
MOQ:	10pcs
Price:	Negotiation
Payment Terms:	T/T,W,Western Union,MoneyGram
Supply Ability:	3000pcs per week

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Rohs,CE,FCC

Quality:

Brand New Original

Package:

Original Industrial Packing

Brightnerss:

300CD/M2

Connector:

30PIN

Color:

16.2M

Contrast Ratio:

800:1

Working Life:

15K Hours

Resolution:

1920*1080pixels

Voltage Supply:

3.3V

Signal Type:

EDP

Packaging Details:

Industrial packing

Highlight:

300CD/M2 Laptop Monitor Panel

BOE Laptop Monitor Panel

57PPI PC LCD Module

Product Description

BOE 300CD/M2 Laptop Monitor Panel

14-inch 30PIN 157PPI PC LCD Module NV140FHM-N69 with eDP interface

Product Overview

The NV140FHM-N69 is a 14.0-inch diagonal a-Si TFT-LCD display panel from BOE Technology Group Co., Ltd., featuring an integrated WLED backlight system with LED driver. This high-quality laptop display panel offers excellent color reproduction and viewing characteristics for professional applications.

Key Features

Full HD 1920*1080 resolution with 157 PPI density
100% sRGB color gamut supporting 16.2 million colors
300 cd/m² typical brightness with 800:1 contrast ratio
eDP 1.2 interface with 30-pin connector
WLED backlight with 15,000-hour lifespan
Anti-glare surface with hard coating (3H)
Wide viewing angles: 85/85/85/85 (CR≥10)

Technical Specifications

Panel Model	NV140FHM-N69 (BOE08B5)
Panel Size	14.0 inches
Resolution	1920(RGB)*1080 (FHD)
Pixel Density	157 PPI
Display Area	309.312mm * 173.988mm
Outline Dimensions	314.31mm * 191.09mm * 2.6mm
Brightness	300 cd/m² (Typical)
Contrast Ratio	800:1 (Typical)
Response Time	20ms (Typical, Tr+Td)
Display Colors	16.2 million (100% sRGB)
Interface	eDP (2 Lanes), eDP1.2, 30-pin connector
Input Voltage	3.3V (Typical)
Refresh Rate	60Hz
Operating Temperature	0°C to 50°C
Storage Temperature	-20°C to 60°C

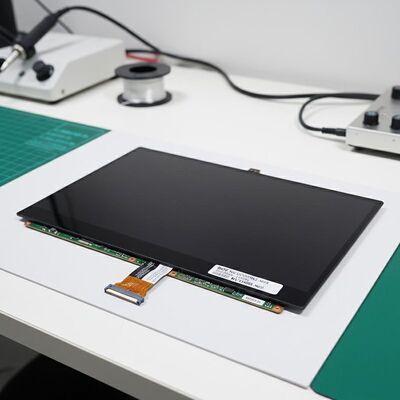

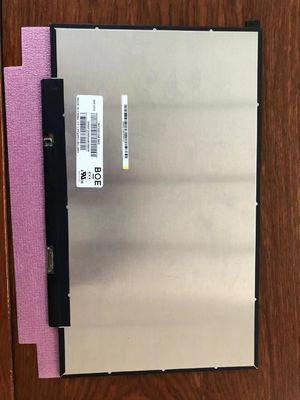

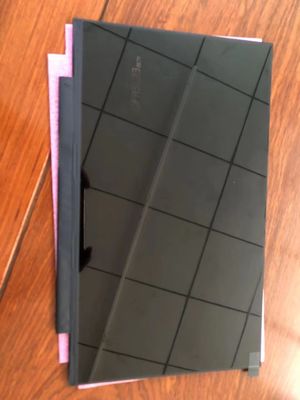

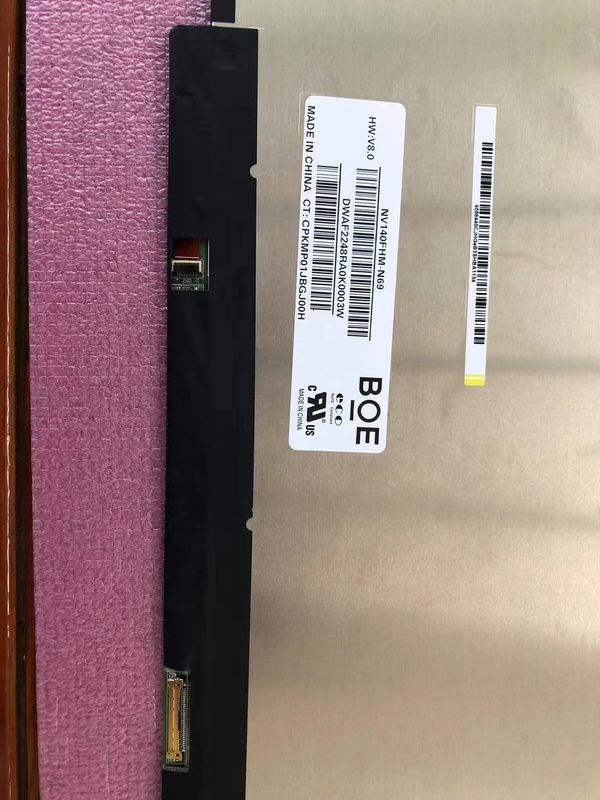

Product Image

Note: Production status information is for reference only. For the latest production and specification details, please contact BOE or their authorized agents before making design decisions.
