| Brand Name: | BOE |
| Model Number: | QV185FHB-N81 |
| MOQ: | 10pcs |
| Price: | Negotiation |
| Packaging Details: | Industrial packing |
| Payment Terms: | T/T,W, Western Union, MoneyGram |

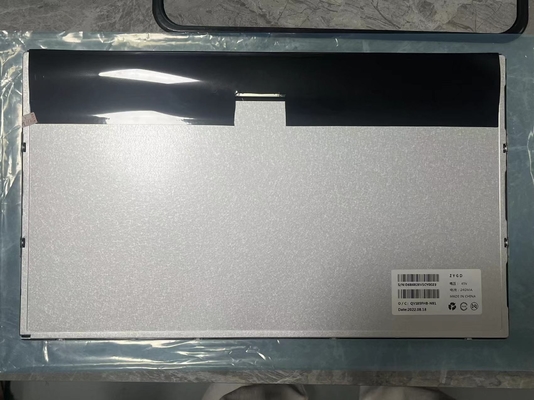

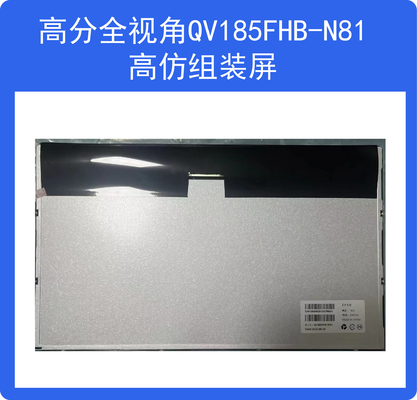

30PIN 119PPI BOE 18.5inch lcd display Panel QV185FHB-N81 A Si TFT LCD Panel 60HZ for Digital signage
BOE Technology Group Co., Ltd. (hereafter called BOE) QV185FHB-N81 is a 18.5 inch diagonal a-Si TFT-LCD display panel product, without backlight, without touch screen. It features an operating temperature range of 0 ~ 50°C , a storage temperature range of -20 ~ 60°C . It's general features are summarized by einklcd in the following: Landscape / Portrait, Matte . Based on its features, einklcd recommend that this model be applied to Digital Signage etc.Built-in 3 source chips driver IC. According to the information stored in Einklcd this model mass production on Q1, 2021, Now this model is in production. We inputted this model's specification on May 28 2021 for the first time, and the latest update on Jul 28 2022. If you want to embed QV185FHB-N81 CELL in your future product, Einklcd strongly recommend that you should contact with BOE or it's distributor to learn lateast production and specification detail. The QV185FHB-N81 production status marked on einklcd.com is for reference only and should not be used as the basis for the user's decision making.
| Panel Brand |
|---|
| Panel Size |
| Resolution |
| Display Area |
| Outline Size |
| Brightness |
| Viewing Angle |
| Best View on |
| Display Colors |
| Frequency |
| Weight |
| BOE |
| 18.5" |
| 1920(RGB)×1080, FHD, 119PPI |
| 408.96(W)×230.04(H) mm |
| 430.4(W)×254.6(H) ×0.8(D) mm |
| 0 cd/m² |
| 89/89/89/89 (Typ.)(CR≥10) |
| Symmetry |
| 16.7M 72% NTSC |
| 60Hz |
| TBD |
| Panel Model |
| Panel Type |
| Pixel Format |
| Bezel Opening |
| Surface |
| Contrast Ratio |
| Display Mode |
| Response Time |
| Lamp Type |
| Touch Screen |
| Application |
| QV185FHB-N81 |
| a-Si TFT-LCD , CELL |
| RGB Vertical Stripe |
| - |
| Antiglare (Haze 25%) |
| 1000:1 (Typ.) (TM) |
| ADS, Normally Black, Transmissive |
| 14 (Typ.)(G to G) |
| No B/L |
| Without |
| Driver IC | COF Built-in 3 source chips |
|---|---|
| Signal Interface | LVDS (2 ch, 8-bit) , 30 pins Connector |
| Input Voltage | 5.0V (Typ.) |
| Environment | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C |
|
|
