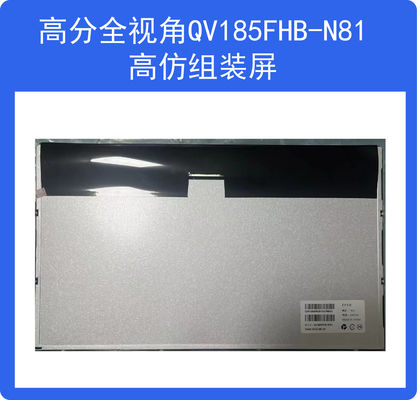

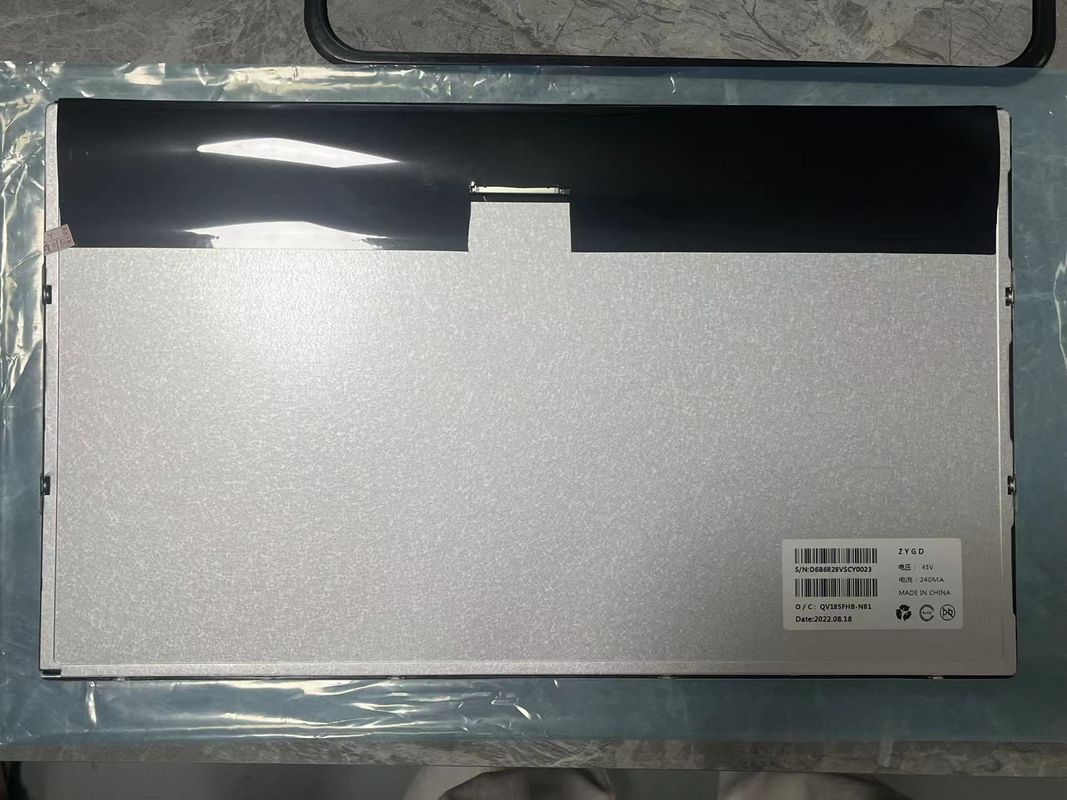

18.5inch BOE TFT LCD Panel with 1920x1080 Resolution and 30PIN Connector for Digital Signage

Name: 18.5inch BOE TFT LCD Panel with 1920x1080 Resolution and 30PIN Connector for Digital Signage
Brand: FOCUS VISION TECHNOLOGY LIMITED
SKU: QV185FHB-N81
Price: 30.00 USD
Availability: InStock

Brand Name:	BOE
Model Number:	QV185FHB-N81
MOQ:	10pcs
Price:	Negotiation
Payment Terms:	T/T,W,Western Union,MoneyGram
Supply Ability:	3000pcs per week

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Rohs,CE,FCC

Quality:

Brand New Original

Package:

Original Industrial Packing

Brightnerss:

200CD/M2

Connector:

30PIN

Color:

16.7M

Contrast Ratio:

1000:1

Working Life:

15K Hours

Resolution:

1920*1080pixels

Voltage Supply:

5.0V

Signal Type:

Lvds

Packaging Details:

Industrial packing

Highlight:

18.5inch LCD Display Panel

119PPI lcd display Panel

BOE A Si TFT LCD Panel

Product Description

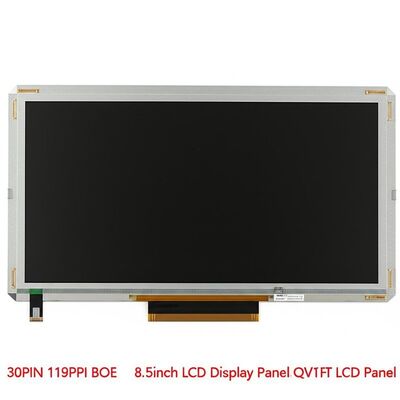

30PIN 119PPI BOE 18.5inch LCD Display Panel QV185FHB-N81 A-Si TFT LCD Panel

The BOE QV185FHB-N81 is an 18.5-inch diagonal a-Si TFT-LCD display panel featuring 119 PPI density and FHD resolution. This panel operates at 60Hz and is specifically designed for digital signage applications. The display offers landscape/portrait orientation with a matte, anti-glare surface for optimal visibility in various lighting conditions.

Product Overview

Manufactured by BOE Technology Group Co., Ltd., this LCD panel cell does not include backlight or touch screen components. Built with 3 source chips driver IC and LVDS interface, it delivers high-quality display performance for professional applications.

Display Specifications
Panel Brand	BOE
Panel Model	QV185FHB-N81
Panel Size	18.5"
Resolution	1920(RGB)*1080, FHD, 119PPI
Display Area	408.96(W)*230.04(H) mm
Outline Size	430.4(W)254.6(H)0.8(D) mm
Panel Type	a-Si TFT-LCD, CELL
Pixel Format	RGB Vertical Stripe

Performance Characteristics
Brightness	0 cd/m² (No Backlight)
Viewing Angle	89/89/89/89 (Typ.)(CR≥10)
Best View On	Symmetry
Contrast Ratio	1000:1 (Typ.) (TM)
Display Mode	ADS, Normally Black, Transmissive
Response Time	14ms (Typ.)(G to G)
Display Colors	16.7M 72% NTSC
Frequency	60Hz

Technical Specifications
Surface Treatment	Antiglare (Haze 25%)
Lamp Type	No B/L
Touch Screen	Without
Driver IC	COF Built-in 3 source chips
Signal Interface	LVDS (2 ch, 8-bit), 30 pins Connector
Input Voltage	5.0V (Typ.)
Operating Temperature	0 ~ 50°C
Storage Temperature	-20 ~ 60°C
Weight	TBD
Application	Digital Signage

Production Note: This model entered mass production in Q1 2021 and is currently in production. Specifications were last updated on July 28, 2022. For the most current production status and technical details, we recommend contacting BOE or their authorized distributors directly.
