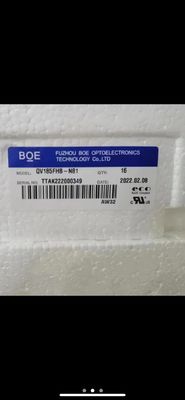

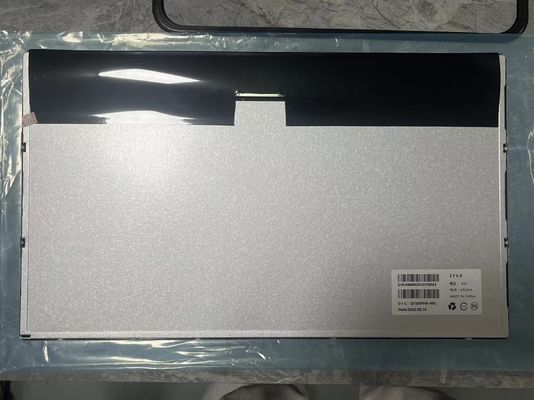

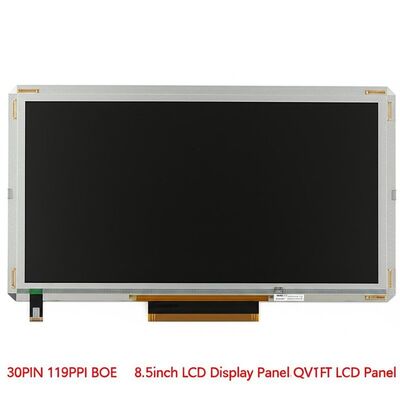

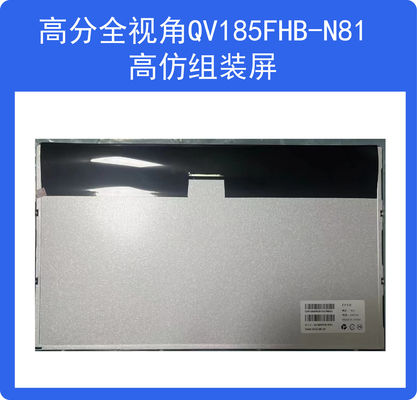

30PIN 119PPI BOE 18.5inch LCD Display Panel QV185FHB-N81 A Si TFT LCD Panel

30PIN 119PPI BOE 18.5inch LCD Display Panel QV185FHB-N81 A Si TFT LCD Panel
30PIN 119PPI BOE 18.5inch LCD Display Panel QV185FHB-N81 A Si TFT LCD Panel 30PIN 119PPI BOE 18.5inch LCD Display Panel QV185FHB-N81 A Si TFT LCD Panel 30PIN 119PPI BOE 18.5inch LCD Display Panel QV185FHB-N81 A Si TFT LCD Panel

Large Image :  30PIN 119PPI BOE 18.5inch LCD Display Panel QV185FHB-N81 A Si TFT LCD Panel

Product Details:
Place of Origin: China
Brand Name: BOE
Certification: Rohs,CE,FCC
Model Number: QV185FHB-N81
Payment & Shipping Terms:
Minimum Order Quantity: 10pcs
Price: Negotiation
Packaging Details: Industrial packing
Delivery Time: 4-5 working day
Payment Terms: T/T,W, Western Union, MoneyGram
Supply Ability: 3000pcs per week

30PIN 119PPI BOE 18.5inch LCD Display Panel QV185FHB-N81 A Si TFT LCD Panel

Description
Quality: Brand New Original Package: Original Industrial Packing
Brightnerss: 200CD/M2 Connector: 30PIN
Color: 16.7M Contrast Ratio: 1000:1
Working Life: 15K Hours Resolution: 1920*1080pixels
Voltage Supply: 5.0V Signal Type: Lvds
High Light:

18.5inch LCD Display Panel

,

119PPI lcd display Panel

,

BOE A Si TFT LCD Panel

30PIN 119PPI BOE 18.5inch lcd display Panel QV185FHB-N81 A Si TFT LCD Panel 60HZ for Digital signage



BOE Technology Group Co., Ltd. (hereafter called BOE) QV185FHB-N81 is a 18.5 inch diagonal a-Si TFT-LCD display panel product, without backlight, without touch screen. It features an operating temperature range of 0 ~ 50°C , a storage temperature range of -20 ~ 60°C . It's general features are summarized by einklcd in the following: Landscape / Portrait, Matte . Based on its features, einklcd recommend that this model be applied to Digital Signage etc.Built-in 3 source chips driver IC. According to the information stored in Einklcd this model mass production on Q1, 2021, Now this model is in production. We inputted this model's specification on May 28 2021 for the first time, and the latest update on Jul 28 2022. If you want to embed QV185FHB-N81 CELL in your future product, Einklcd strongly recommend that you should contact with BOE or it's distributor to learn lateast production and specification detail. The QV185FHB-N81 production status marked on einklcd.com is for reference only and should not be used as the basis for the user's decision making.





Panel Brand
Panel Size
Resolution
Display Area
Outline Size
Brightness
Viewing Angle
Best View on
Display Colors
Frequency
Weight
BOE
18.5"
1920(RGB)×1080, FHD, 119PPI
408.96(W)×230.04(H) mm
430.4(W)×254.6(H) ×0.8(D) mm
0 cd/m²
89/89/89/89 (Typ.)(CR≥10)
Symmetry
16.7M 72% NTSC
60Hz
TBD
Panel Model
Panel Type
Pixel Format
Bezel Opening
Surface
Contrast Ratio
Display Mode
Response Time
Lamp Type
Touch Screen
Application
QV185FHB-N81
a-Si TFT-LCD , CELL
RGB Vertical Stripe
-
Antiglare (Haze 25%)
1000:1 (Typ.) (TM)
ADS, Normally Black, Transmissive
14 (Typ.)(G to G)
No B/L
Without
Driver IC COF Built-in 3 source chips
Signal Interface LVDS (2 ch, 8-bit) , 30 pins Connector
Input Voltage 5.0V (Typ.)
Environment Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C





30PIN 119PPI BOE 18.5inch LCD Display Panel QV185FHB-N81 A Si TFT LCD Panel 0
