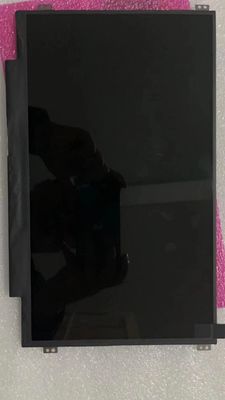

BOE 11.6 Inch 200CD/M2 30PIN 135PPI NT116WHM-T00 TFT-LCD Display Monitor Module

Name: BOE 11.6 Inch 200CD/M2 30PIN 135PPI NT116WHM-T00 TFT-LCD Display Monitor Module
Brand: FOCUS VISION TECHNOLOGY LIMITED
SKU: NT116WHM-T00
Price: 30.00 USD
Availability: InStock

Brand Name:	BOE
Model Number:	NT116WHM-T00
MOQ:	10pcs
Price:	Negotiation
Payment Terms:	T/T,W,Western Union,MoneyGram
Supply Ability:	3000pcs per week

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Rohs,CE,FCC

Quality:

Brand New Original

Package:

Original Industrial Packing

Brightnerss:

200CD/M2

Connector:

30PIN

Color:

265k

Contrast Ratio:

500:1

Working Life:

15K Hours

Resolution:

1366*768pixels

Voltage Supply:

3.3V

Signal Type:

LCM

Packaging Details:

Industrial packing

Highlight:

LCD BOE monitor panel

LCM BOE monitor panel

11.6 Inch a Si TFT LCD panel

Product Description

200CD/M2 30PIN 135PPI BOE Monitor Panel 11.6 Inch NT116WHM-T00 A-Si TFT LCD Panel

The NT116WHM-T00 is a high-quality 11.6-inch diagonal a-Si TFT-LCD display panel manufactured by BOE Technology Group Co., Ltd. This professional-grade monitor module features an integrated WLED backlight system with LED driver and On-Cell Touch technology, making it ideal for laptop applications and embedded display solutions.

Key Features

11.6-inch WXGA display with 1366*768 resolution
135 PPI pixel density for sharp image quality
On-Cell Touch technology integrated
WLED backlight with 15,000 hours lifespan
eDP interface with 30-pin connector
500:1 contrast ratio for vibrant visuals

Technical Specifications

Manufacturer	BOE
Model Number	NT116WHM-T00
Screen Size	11.6 inch
Display Technology	LCM, a-Si TFT-LCD
Resolution	1366(RGB)*768 (WXGA)
Pixel Density	135 PPI
Active Area	256.125 * 144 mm (H*V)
Contrast Ratio	500:1 (Typical)
Viewing Angle	45/45/20/40 (Typical, CR≥10)
Response Time	12 ms (Typical, Tr+Td)
Optimal Viewing	6 o'clock position
Display Mode	TN, Normally White, Transmissive
Color Depth	262K colors
Backlight System	WLED, 15K hours, With LED Driver
Refresh Rate	60Hz
Touchscreen	On-Cell Touch
Interface	eDP (1 Lane), 30 pins Connector
Operating Voltage	3.3V (Typical)
Operating Temperature	0°C to 50°C
Storage Temperature	-20°C to 60°C

Important Note: This product information is provided for reference purposes. For the most current production status and detailed specifications, we strongly recommend contacting BOE or their authorized agents directly before making integration decisions.
