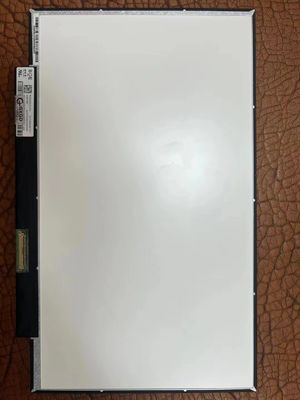

BOE 135PPI LCD Display Panel 11.6Inch NV116WHM-T11 1366×768Pixels

BOE 135PPI Desktop Monitor Module 11.6Inch NV116WHM-T11 1366×768Pixels 220CD/M2 40PIN

BOE Technology Group Co., Ltd. (hereafter called BOE) NV116WHM-T11 (Product Code: BOE0771) is a 11.6 inch diagonal a-Si TFT-LCD display panel product, with an integral WLED backlight system, With LED Driver , touchscreen On-Cell Touch. It features an operating temperature range of 0 ~ 50°C , a storage temperature range of -20 ~ 60°C , and the maximal vibration level of 1.5G (14.7 m/s²). It's general features are summarized by EINKLCD in the following: WLED Backlight, With LED Driver, Reverse I/F, Glossy , eDP1.2; For DELL. Based on its features, Einklcd recommend that this model be applied to Laptop etc. According to the information stored in Einklcd this model mass production on Q1, 2018, Now this model is in production. We inputted this model's specification on Nov 27 2020 for the first time, and the latest update on Mar 24 2022. If you want to embed NV116WHM-T11 Assembly in your future product, Einklcd strongly recommend that you should contact with BOE or it's distributor to learn lateast production and specification detail. The NV116WHM-T11 production status marked on Einklcd.com is for reference only and should not be used as the basis for the user's decision making.

Manufacturer

BOE

Model Name

NV116WHM-T11 (BOE0771)

Screen Size

11.6 inch

Screen Type

Assembly , a-Si TFT-LCD

Pixel Number

1366(RGB)×768 (WXGA) 135PPI

Arrangement

RGB Vertical Stripe

Active Area(mm)

256.125 × 144 (H×V)

Outline(mm)

287.7 × 185.6 × 4.2 (H×V×D)

Bezel Area(mm)

-

Treatment

Glare (Haze 0%)

Luminance

220 cd/m² (Typ.)

Contrast Ratio

1200 : 1 (Typ.) (TM)

Viewing Angle

85/85/85/85 (Typ.)(CR≥10)

Response

30 (Typ.)(Tr+Td) ms

Good View at

Symmetry

Work Mode

-

Color Depth

262K 50% NTSC

Backlight

8S3P WLED , 15K hours , With LED Driver

Outline Shape

Slim (PCBA Flat, T≤3.2mm)

Used for

Refresh Rate

60Hz

Touchscreen

On-Cell Touch

Signal Type

eDP (1 Lane) , eDP1.2 , HBR1 (2.7G/lane) , 40 pins Connector

Voltage Supply

3.3V (Typ.)

Max. Ratings

Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C
