BOE 11.6 Inch LCD Display Panel 1366×768 Pixels 220CD/M2 TFT-LCD Module for Desktop Monitor

Name: BOE 11.6 Inch LCD Display Panel 1366×768 Pixels 220CD/M2 TFT-LCD Module for Desktop Monitor
Brand: FOCUS VISION TECHNOLOGY LIMITED
SKU: NV116WHM-T11
Price: 30.00 USD
Availability: InStock

Brand Name:	BOE
Model Number:	NV116WHM-T11
MOQ:	10pcs
Price:	Negotiation
Payment Terms:	T/T,W,Western Union,MoneyGram
Supply Ability:	3000pcs per week

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Rohs,CE,FCC

Quality:

Brand New Original

Package:

Original Industrial Packing

Brightnerss:

220CD/M2

Connector:

40PIN

Color:

265k

Contrast Ratio:

1200:1

Working Life:

15K Hours

Resolution:

1366*768pixels

Voltage Supply:

3.3V

Signal Type:

LCM

Packaging Details:

Industrial packing

Highlight:

220CD/M2 40PIN LCD Display Panel

NV116WHM-T11 Desktop Monitor Module

Product Description

BOE 135PPI LCD Display Panel 11.6-Inch NV116WHM-T11

BOE Technology Group Co., Ltd. NV116WHM-T11 (Product Code: BOE0771) is a high-quality 11.6-inch diagonal a-Si TFT-LCD display panel featuring an integrated WLED backlight system with LED driver and On-Cell Touch technology. This desktop monitor module delivers sharp 1366*768 WXGA resolution with 135 pixels per inch density.

Product Specifications

Manufacturer	BOE
Model Name	NV116WHM-T11 (BOE0771)
Screen Size	11.6 inch
Screen Type	Assembly, a-Si TFT-LCD
Resolution	1366*768 pixels (WXGA) at 135 PPI
Pixel Arrangement	RGB Vertical Stripe
Active Area	256.125 * 144 mm (H*V)
Outline Dimensions	287.7 * 185.6 * 4.2 mm (HVD)
Surface Treatment	Glare (Haze 0%)
Luminance	220 cd/m² (Typical)
Contrast Ratio	1200:1 (Typical)
Viewing Angle	85/85/85/85 (Typical, CR≥10)
Response Time	30 ms (Typical, Tr+Td)
Color Depth	262K colors, 50% NTSC
Backlight	8S3P WLED, 15K hours lifespan, With LED Driver
Outline Shape	Slim (PCBA Flat, T≤3.2mm)
Refresh Rate	60Hz
Touchscreen	On-Cell Touch
Signal Interface	eDP (1 Lane), eDP1.2, HBR1 (2.7G/lane), 40-pin Connector
Operating Voltage	3.3V (Typical)
Operating Temperature	0°C to 50°C
Storage Temperature	-20°C to 60°C
Vibration Resistance	Max. 1.5G (14.7 m/s²)

Application

This display panel is recommended for laptop applications and other embedded display systems requiring high-quality visual performance in compact form factors.

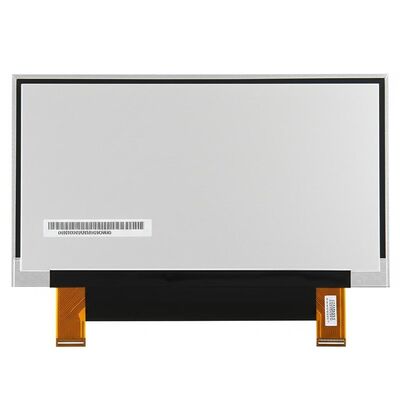

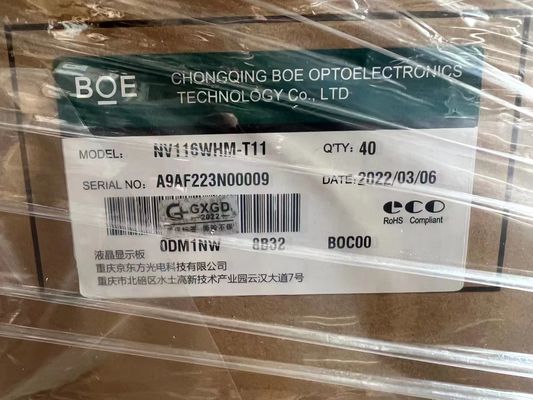

Product Images

Production Note: This model entered mass production in Q1 2018 and is currently in production. For the latest production status and detailed specifications, we strongly recommend contacting BOE or their authorized distributors directly. Information provided here is for reference only and should not be used as the sole basis for decision-making.
