BOE 11.6Inch 2000CD/M2 Brightness 40PIN Connector TFT-LCD Display Panel Desktop Monitor Module

Name: BOE 11.6Inch 2000CD/M2 Brightness 40PIN Connector TFT-LCD Display Panel Desktop Monitor Module
Brand: FOCUS VISION TECHNOLOGY LIMITED
SKU: NT116WHM-A11
Price: 30.00 USD
Availability: InStock

Brand Name:	BOE
Model Number:	NT116WHM-A11
MOQ:	10pcs
Price:	Negotiation
Payment Terms:	T/T,W,Western Union,MoneyGram
Supply Ability:	3000pcs per week

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Rohs,CE,FCC

Quality:

Brand New Original

Package:

Original Industrial Packing

Brightnerss:

2000CD/M2

Connector:

40PIN

Color:

265k

Contrast Ratio:

500:1

Working Life:

15K Hours

Resolution:

1366*768pixels

Voltage Supply:

3.3V

Signal Type:

LCM

Packaging Details:

Industrial packing

Highlight:

1366×768 Desktop Monitor LCD Module

BOE 135PPI LCD Monitor Module

Product Description

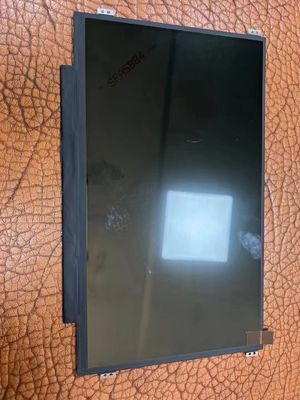

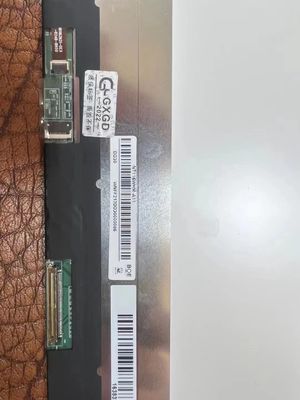

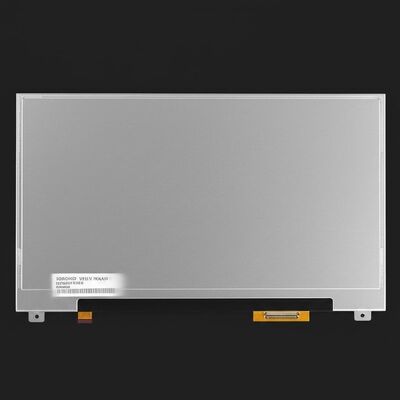

BOE NT116WHM-A11 11.6-Inch Desktop Monitor Module

BOE Technology Group Co., Ltd. NT116WHM-A11 (Product Code: BOE06AB) is a 11.6-inch diagonal a-Si TFT-LCD display panel with integrated WLED backlight system, LED driver, PCAP touchscreen, and optical bonding technology.

Product Overview

This industrial-grade display module features an operating temperature range of 0~50°C and storage temperature range of -20~60°C, with maximum vibration tolerance of 1.5G (14.7 m/s²). Originally mass produced in Q2 2016, this model is now discontinued.

Key Features

11.6-inch a-Si TFT-LCD display assembly
1366 * 768 WXGA resolution (135 PPI)
200 cd/m² typical luminance
PCAP touchscreen with optical bonding
WLED backlight with LED driver
eDP interface with 40-pin connector
Slim profile design (PCBA Flat, T≤3.2mm)

Technical Specifications

Manufacturer	BOE
Model Name	NT116WHM-A11 (BOE06AB)
Screen Size	11.6 inch
Screen Type	Assembly, a-Si TFT-LCD
Resolution	1366(RGB)*768 (WXGA) 135PPI
Active Area	256.13 * 144 mm (H*V)
Outline Dimensions	281.2 * 182.9 * 4.05 mm (HVD)
Surface Treatment	Hard coating (7H)
Luminance	200 cd/m² (Typ.)
Contrast Ratio	500:1 (Typ.)
Viewing Angle	45/45/20/40 (Typ.)(CR≥10)
Response Time	12 ms (Typ.)(Tr+Td)
Display Technology	TN, Normally White, Transmissive
Color Depth	262K, 45% NTSC
Backlight System	6S4P WLED, 15K hours, With LED Driver
Refresh Rate	60Hz
Touchscreen	PCAP, Optical Bonding
Signal Interface	eDP (1 Lane), HBR1 (2.7G/lane), 40-pin connector
Operating Voltage	3.3V (Typ.)
Operating Temperature	0 ~ 50°C
Storage Temperature	-20 ~ 60°C

Important Note: This model is discontinued. For integration into future products, we strongly recommend contacting BOE or their distributor for the latest production and specification details. The production status information is for reference only and should not be used as the basis for decision making.
