200CD/M2 40PIN BOE 135PPI Desktop Monitor Module 11.6Inch NT116WHM-A11

BOE 135PPI Desktop Monitor Module 11.6Inch NT116WHM-A11 1366×768 200CD/M2 40PIN

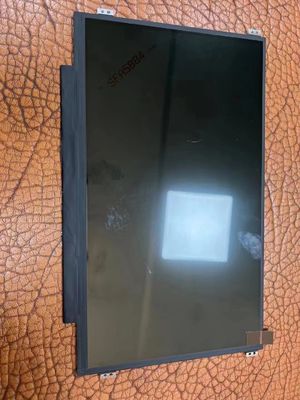

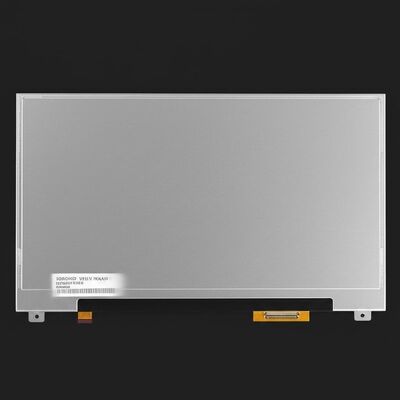

BOE Technology Group Co., Ltd. (hereafter called BOE) NT116WHM-A11 (Product Code: BOE06AB) is a 11.6 inch diagonal a-Si TFT-LCD display panel product, with an integral WLED backlight system, With LED Driver , touchscreen PCAP, Optical Bonding. It features an operating temperature range of 0 ~ 50°C , a storage temperature range of -20 ~ 60°C , and the maximal vibration level of 1.5G (14.7 m/s²). It's general features are summarized by Einklcd in the following: With Touch, WLED Backlight, With LED Driver, Reverse I/F , for DELL. Based on its features, Einklcd recommend that this model be applied to Laptop etc. According to the information stored in einklcd this model mass production on Q2, 2016, Now this model is discontinued. We inputted this model's specification on May 25 2021 for the first time, and the latest update on Jan 20 2022. If you want to embed NT116WHM-A11 Assembly in your future product, einklcd strongly recommend that you should contact with BOE or it's distributor to learn lateast production and specification detail. The NT116WHM-A11 production status marked on einklcd.com is for reference only and should not be used as the basis for the user's decision making.

Manufacturer

BOE

Model Name

NT116WHM-A11 (BOE06AB)

Screen Size

11.6 inch

Screen Type

Assembly, a-Si TFT-LCD

Pixel Number

1366(RGB)×768 (WXGA) 135PPI

Arrangement

RGB Vertical Stripe

Active Area(mm)

256.13 × 144 (H×V)

Outline(mm)

281.2 × 182.9 × 4.05 (H×V×D)

Bezel Area(mm)

-

Treatment

Hard coating (7H)

Luminance

200 cd/m² (Typ.)

Contrast Ratio

500 : 1 (Typ.) (TM)

Viewing Angle

45/45/20/40 (Typ.)(CR≥10)

Response

12 (Typ.)(Tr+Td) ms

Good View at

-

Work Mode

TN, Normally White, Transmissive

Color Depth

262K 45% NTSC

Backlight

6S4P WLED , 15K hours , With LED Driver

Outline Shape

Slim (PCBA Flat, T≤3.2mm)

Used for

Refresh Rate

60Hz

Touchscreen

PCAP, Optical Bonding

Signal Type

eDP (1 Lane) , HBR1 (2.7G/lane) , Connector 40 pins

Voltage Supply

3.3V (Typ.)

Max. Ratings

Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C
