Sharp 13.4inch 500CD/M2 Desktop LCD Monitor Module LQ134R1JX45 with 3840×2400 Resolution

Name: Sharp 13.4inch 500CD/M2 Desktop LCD Monitor Module LQ134R1JX45 with 3840×2400 Resolution
Brand: FOCUS VISION TECHNOLOGY LIMITED
SKU: LQ134R1JX45
Price: 30.00 USD
Availability: InStock

Brand Name:	Sharp
Model Number:	LQ134R1JX45
MOQ:	10pcs
Price:	Negotiation
Payment Terms:	T/T,W,Western Union,MoneyGram
Supply Ability:	3000pcs per week

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Rohs,CE,FCC

Quality:

Brand New Original

Package:

Original Industrial Packing

Brightnerss:

500CD/M2

Connector:

40PIN

Color:

262k

Contrast Ratio:

600:1

Working Life:

16.7 Hours

Resolution:

3840*2400pixels

Voltage Supply:

3.3V

Signal Type:

LCM

Packaging Details:

Industrial packing

Highlight:

3840×2400 Desktop LCD Monitor Module

13.4inch 1338PPI LCD Monitor Module

500CD/M2 Desktop LCD Monitor Module

Product Description

Sharp 13.4-inch 1338PPI Desktop LCD Monitor Module

Model: LQ134R1JX45 - 3840*2400 resolution, 500 cd/m² brightness, 30-pin interface

The LQ134R1JX45 is a 13.4-inch diagonal Oxide TFT-LCD display panel from Sharp Corporation featuring an integrated WLED backlight system with LED driver. This high-resolution monitor module operates within a temperature range of 0~50°C and withstands storage temperatures of -25~60°C with maximum vibration tolerance of 1.0G (9.8 m/s²).

Key Features

Panel Brand	Sharp
Panel Model	LQ134R1JX45
Panel Size	13.4-inch
Panel Type	Oxide TFT-LCD, LCM
Resolution	3840(RGB)*2400, 338PPI
Brightness	500 cd/m² (Typical)
Contrast Ratio	1500:1 (Typical)
Viewing Angle	89/89/89/89 (Typical, CR≥10)
Response Time	30ms (Typical, Tr+Td)
Display Colors	16.7M, 100% sRGB
Backlight	WLED, 15K hours, With LED Driver
Signal Interface	eDP (4 Lanes), 40-pin Connector
Input Voltage	3.3V (Typical)
Operating Temperature	0 ~ 50°C
Storage Temperature	-25 ~ 60°C

Additional Specifications

Display Area: 288(W)*180(H) mm
Pixel Format: RGB Vertical Stripe
Display Mode: New Mode2, Normally Black, Transmissive
Best View: Symmetry
Touch Screen: Without
Shape Style: Slim (PCBA Bent, T≤3.0mm)
Surface: Glossy
Interface: Reverse I/F

Application

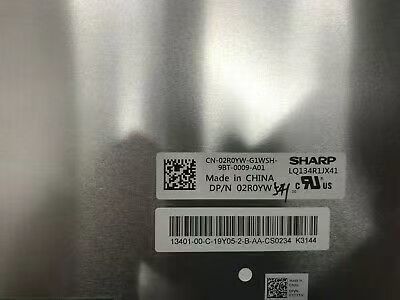

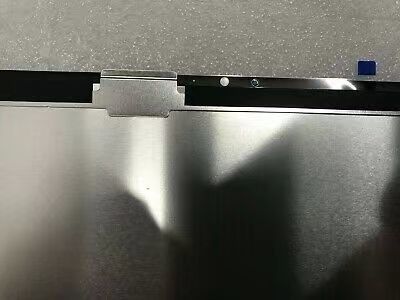

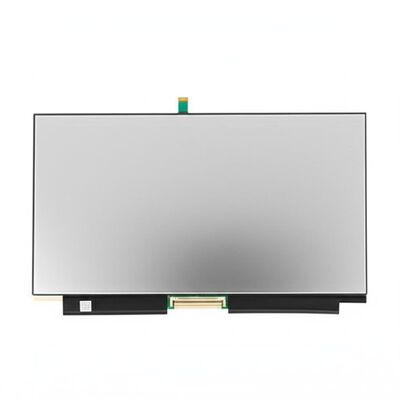

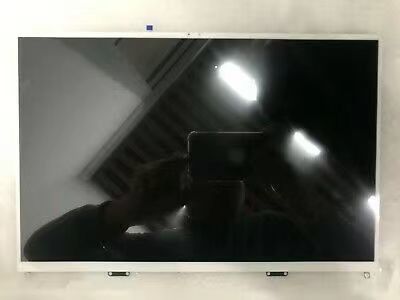

Product Image

Important Note: This model is recommended for laptop applications. For integration into your products, we strongly recommend contacting Sharp or their authorized agents for the latest production status and specification details. The information provided here is for reference only and should not be used as the sole basis for decision-making.
