LG 135PPI Desktop Monitor Module 11.6Inch LP116WH7 SPC2 1366×768

LG 135PPI Desktop Monitor Module 11.6Inch LP116WH7 SPC2 1366×768
LG 135PPI Desktop Monitor Module 11.6Inch LP116WH7 SPC2 1366×768 LG 135PPI Desktop Monitor Module 11.6Inch LP116WH7 SPC2 1366×768

Large Image :  LG 135PPI Desktop Monitor Module 11.6Inch LP116WH7 SPC2 1366×768

Product Details:
Place of Origin: China
Brand Name: LG
Certification: Rohs,CE,FCC
Model Number: LP116WH7 SPC2
Payment & Shipping Terms:
Minimum Order Quantity: 10pcs
Price: Negotiation
Packaging Details: Industrial packing
Delivery Time: 4-5 working day
Payment Terms: T/T,W, Western Union, MoneyGram
Supply Ability: 3000pcs per week
Detailed Product Description
Quality: Brand New Original Package: Original Industrial Packing
Brightnerss: 220CD/M2 Connector: 30PIN
Color: 262k Contrast Ratio: 600:1
Working Life: 15K Hours Resolution: 1366*768pixels
Voltage Supply: 3.3V Signal Type: LCM
High Light:

220CD/M2 30PIN Desktop Monitor Module

,

LP116WH7 TFT LCD display panel

LG 135PPI Desktop Monitor Module 11.6Inch LP116WH7 SPC2 1366×768 220CD/M2 30PIN



LG Display Co., Ltd. (hereafter called LG Display) LP116WH7-SPC2 (Alias: LP116WH7 (SP)(C2)) (Product Code: LGD04DC) is a 11.6 inch diagonal a-Si TFT-LCD display panel product, with an integral WLED backlight system, With LED Driver , without touch screen. It features an operating temperature range of 0 ~ 50°C , a storage temperature range of -20 ~ 60°C . It's general features are summarized by Einklcd in the following: WLED Backlight, With LED Driver, Glossy . Based on its features, Einklcd recommend that this model be applied to Laptop etc. According to the information stored in Einklcd this model mass production on Q4, 2016, Now this model is discontinued. We inputted this model's specification on Dec 21 2018 for the first time, and the latest update on Jan 10 2022. If you want to embed LP116WH7-SPC2 LCM in your future product, Einklcd strongly recommend that you should contact with LG Display or it's distributor to learn lateast production and specification detail. The LP116WH7-SPC2 production status marked on einklcd.com is for reference only and should not be used as the basis for the user's decision making.



Brand:LG

Display Model: LP116WH7-SPC2 (LGD04DC)
Diagonal Size: 11.6 inch

Typea-Si TFT-LCD, LCM
Pixel Format: 1366(RGB)×768 [WXGA] 135PPIConfigurationRGB Vertical Stripe
Active Area256.125(H)×144(V) mm

Outline Dim.268.35(H)×157.35(V) ×4.8(D) mm
Bezel Area 259.25(H)×147.8(V) mm

TreatmentGlare (Haze 0%), Hard coating (3H)
Luminance220 cd/m² (Typ.)

Contrast Ratio600:1 (Typ.) (TM)
View Direction :Symmetry

Response Time35 (Typ.)(Tr+Td)
Viewing Angle:80/80/80/80 (Min.)(CR≥10) Left / Right / Up / Down

Operating Mode:IPS, Normally Black, Transmissive
Support Color: 262K 49% NTSC

Light Source: WLED , 15K hours , With LED Driver
Form StyleSlim (PCBA Bent, T≤3.0mm)

Designed For Laptop
Frame Rate 60Hz
120Hz (60HZ Input) : Embedded MEMC Circuit
120Hz+120Hz : 120Hz Panel+120Hz Backlight
240Hz (60HZ Input) : Embedded MEMC Circuit

Touch Panel:Without
Interface Type:eDP (2 Lanes) , HBR1 (2.7G/lane) , 30 pins Connector
Power Supply:3.3V (Typ.)
Environment:Operating Temperature: 0 ~ 50 °C ;

Storage Temperature: -20 ~ 60 °C

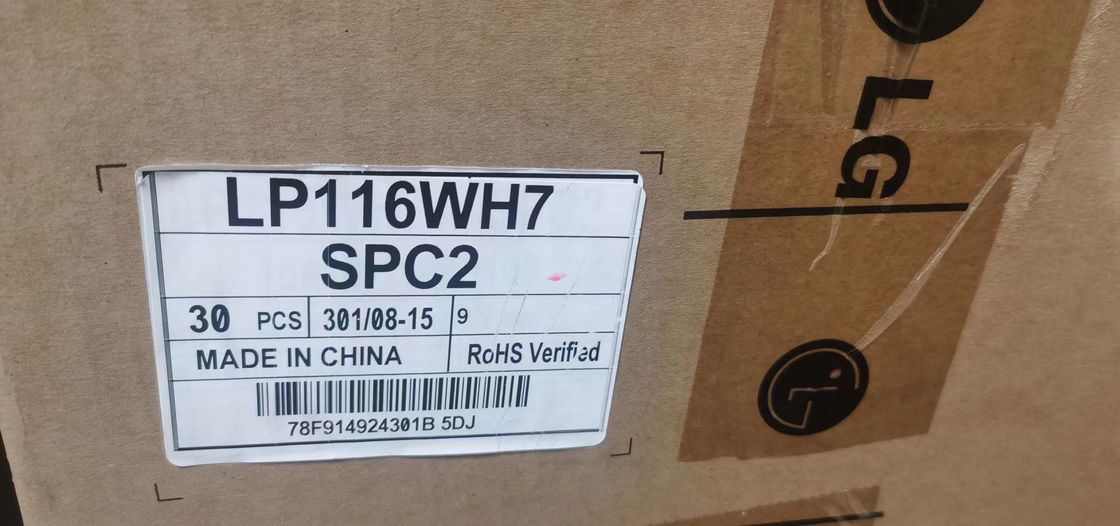

LG 135PPI Desktop Monitor Module 11.6Inch LP116WH7 SPC2 1366×768 0

LG 135PPI Desktop Monitor Module 11.6Inch LP116WH7 SPC2 1366×768 1
