| Brand Name: | TIANMA |
| Model Number: | TM156VDSG17 |
| MOQ: | 10pcs |
| Price: | Negotiation |
| Packaging Details: | Industrial packing |
| Payment Terms: | T/T,W, Western Union, MoneyGram |

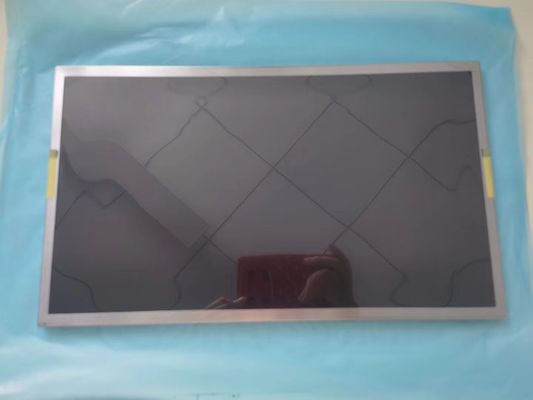

TIANMA 15.6 inch industrial lcd panel TM156VDSG17 WXGA 141PPI 1920x1080pixels Lcd Display Panel 400cd/M2
Tianma Microelectronics Co., Ltd. (hereafter called TIANMA) TM156VDSG17 is a 15.6 inch diagonal a-Si TFT-LCD display panel product, with an integral WLED backlight system, With LED Driver , without touch screen. It features an operating temperature range of -20 ~ 70°C , a storage temperature range of -20 ~ 70°C , and the maximal vibration level of 1.2G (11.76 m/s²). It's general features are summarized by Einklcd in the following: WLED Backlight, Life ≥ 50K hours, With LED Driver, Matte . Based on its features, Einklcd recommend that this model be applied to Industrial etc. According to the information stored in einklcd this model mass production on Q1, 2020, Now this model is in production. We inputted this model's specification on Apr 17 2020 for the first time. If you want to embed TM156VDSG17 LCM in your future product, Einklcd strongly recommend that you should contact with TIANMA or it's distributor to learn lateast production and specification detail. The TM156VDSG17 production status marked on einklcd.com is for reference only and should not be used as the basis for the user's decision making.
Manufacturer:TIANMA
Model Name: TM156VDSG17
Screen Size: 15.6 inch
Screen Type: LCM, a-Si TFT-LCD
Pixel Number: 1920(RGB)×1080 (FHD) 141PPI
Arrangement RGB Vertical Stripe
Active Area(mm):344.16 × 193.59 (H×V)
Outline(mm)363.8 × 215.9 × 6.8 (H×V×D)
Bezel Area(mm) 347.55 × 196.75 (H×V)
Treatment Antiglare, Hard coating (3H)
Luminance 400 cd/m² (Typ.)
Contrast Ratio1000 : 1 (Typ.) (TM)
Viewing Angle88/88/88/88 (Typ.)(CR≥10) Left / Right / Up / Down
Response: 25 (Typ.)(Tr+Td) ms
Good View at Symmetry
Work Mode:SFT, Normally Black, Transmissive
Color Depth16.7M 72% NTSC
Backlight: WLED , 50K hours , With LED Driver
Mass 610g (Typ.)
Used for Industrial
Refresh Rate 60Hz 120Hz (60HZ Input) : Embedded MEMC Circuit
120Hz+120Hz : 120Hz Panel+120Hz Backlight
240Hz (60HZ Input) : Embedded MEMC Circuit
Touchscreen: Without
Signal TypeLVDS (2 ch, 8-bit) , Connector 30 pins
Voltage Supply3.3V (Typ.)
Max. RatingsStorage Temp.: -20 ~ 70 °C Operating Temp.: -20 ~ 70 °C
|
|
