| Brand Name: | BOE |
| Model Number: | HV550FHB-N20 |
| MOQ: | 10pcs |
| Price: | Negotiation |
| Packaging Details: | Industrial packing |
| Payment Terms: | T/T,W, Western Union, MoneyGram |

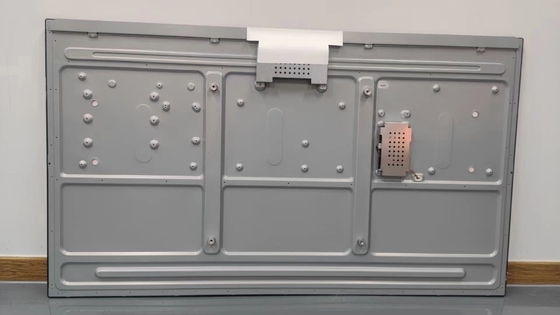

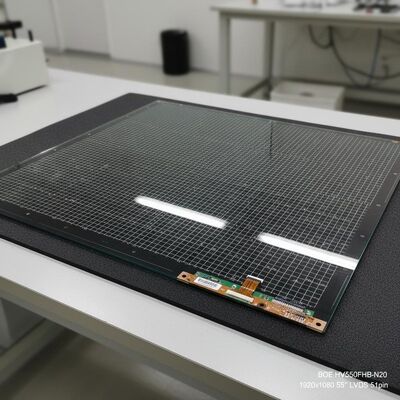

55inch BOE LCD TV Panel open cell HV550FHB-N20 1920*1080pixels 55" LVDS 51pin
HV550FHB-N20 is a 55" diagonal a-Si TFT-LCD display panel product from BOE Technology Group Co., Ltd. (hereafter called BOE), without backlight, without touch screen. It features an operating temperature range of 0 ~ 50°C , a storage temperature range of -20 ~ 60°C . It's general features are summarized by einklcd in the following: sRGB, Matte . Based on its features, einklcd recommend that this model be applied to TV Sets etc.Built-in 6 source +8 gate chips driver IC. According to the information stored in einklcd this model mass production on Q3, 2015, Now this model is in production. We inputted this model's specification on Dec 18 2015 for the first time, and the latest update on Aug 19 2020. If you want to embed the CELL in your future product, einklcd strongly recommend that you should contact with BOE or it's agent to learn lateast production and specification detail of HV550FHB-N20. The production status marked on einklcd.com is for reference only and should not be used as the basis for the user's decision making. All specification details are inputted by einklcd engineers according to datasheet, but mistakes maybe made during inputting.
| Manufacturer |
|---|
| Screen Size |
| Pixel Number |
| Active Area(mm) |
| Bezel Area(mm) |
| Luminance |
| Viewing Angle |
| Good View at |
| Glass Thickness |
| Color Depth |
| Mass |
| Refresh Rate |
| BOE |
| 55 inch |
| 1920(RGB)×1080 (FHD) 40PPI |
| 1209.6 × 680.4 (H×V) |
| - |
| 0 (cd/m²) |
| 89/89/89/89 (Typ.)(CR≥10) |
| Symmetry |
| 0.50+0.50 mm |
| 16.7M 99% sRGB |
| 2.46Kgs (Typ.) |
| 60Hz |
| Model Name |
| Screen Type |
| Arrangement |
| Outline(mm) |
| Treatment |
| Contrast Ratio |
| Work Mode |
| Response |
| Transmissivity |
| Backlight |
| Used for |
| Touchscreen |
| HV550FHB-N20 |
| CELL , a-Si TFT-LCD |
| RGB Vertical Stripe |
| 1224.8 × 699.3 × 1.4 (H×V×D) |
| Antiglare (Haze 1%), Hard coating (3H) |
| 1200 : 1 (Typ.) (TM) |
| ADS, Normally Black, Transmissive |
| 8 (Typ.)(G to G) ms |
| 5.8% (Typ.)(with Polarizer) |
| No B/L |
| Without |
| Driver IC list | Built-in COF 6 source +8 gate chips |
|---|---|
| Signal Type | LVDS (2 ch, 10-bit) , 51 pins Connector |
| Voltage Supply | 12.0V (Typ.) |
| Max. Ratings | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
|
|
