BOE 11.6Inch LCD Display Panel Desktop Monitor Module with 1366×768 Resolution and 350CD/M2 Brightness

Name: BOE 11.6Inch LCD Display Panel Desktop Monitor Module with 1366×768 Resolution and 350CD/M2 Brightness
Brand: FOCUS VISION TECHNOLOGY LIMITED
SKU: NV116WHM-T04
Price: 30.00 USD
Availability: InStock

Brand Name:	BOE
Model Number:	NV116WHM-T04
MOQ:	10pcs
Price:	Negotiation
Payment Terms:	T/T,W,Western Union,MoneyGram
Supply Ability:	3000pcs per week

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Rohs,CE,FCC

Quality:

Brand New Original

Package:

Original Industrial Packing

Brightnerss:

250CD/M2

Connector:

40PIN

Color:

262k

Contrast Ratio:

1000:1

Working Life:

15K Hours

Resolution:

1366*768pixels

Voltage Supply:

3.3V

Signal Type:

LCM

Packaging Details:

Industrial packing

Highlight:

NV116WHM-T04 LCD Module

Desktop Monitor Display Panel 1366×768

Product Description

BOE 135PPI Desktop Monitor Display Panel

11.6-Inch NV116WHM-T04 | 350 cd/m² | 40-Pin Interface

Product Overview

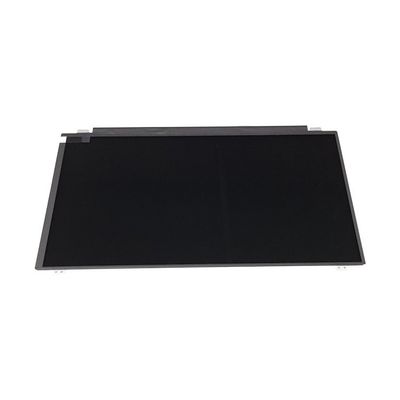

The NV116WHM-T04 (Product Code: BOE0965) is a high-performance 11.6-inch diagonal a-Si TFT-LCD display panel from BOE Technology Group Co., Ltd. This advanced display module features an integrated WLED backlight system with LED driver and On-Cell touch technology, designed for demanding industrial and commercial applications.

Key Features

High resolution: 1366 * 768 WXGA with 135 PPI density
Bright 350 cd/m² display with 1000:1 contrast ratio
WLED backlight system with integrated LED driver

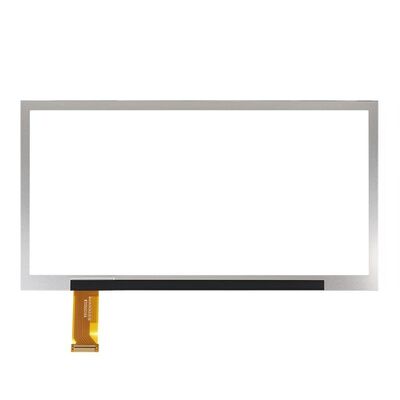

On-Cell touch technology for seamless integration

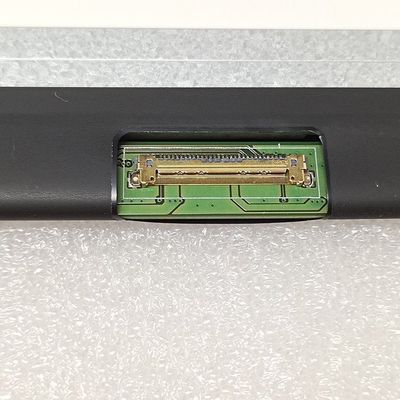

eDP 1.2 interface with 40-pin connector
Wide viewing angles: 85/85/85/85 (CR≥10)
Slim profile design with PCBA flat configuration
Supports 262K colors with 50% NTSC gamut

Technical Specifications

Panel Brand	BOE
Panel Size	11.6 inches
Resolution	1366(RGB) * 768 (WXGA)
Display Area	256.125 * 144 mm
Outline Dimensions	278 * 168 * 3.2 mm
Brightness	250 cd/m² (Typical), 350 cd/m² maximum
Viewing Angle	85/85/85/85 (Typical, CR≥10)
Display Colors	262K, 50% NTSC
Refresh Rate	60Hz
Signal Interface	eDP (1 Lane), eDP1.2, HBR1 (2.7G/lane), 40-pin connector
Input Voltage	3.3V (Typical)
Operating Temperature	0°C to 50°C
Storage Temperature	-20°C to 60°C
Vibration Resistance	Maximal 1.5G (14.7 m/s²)

Panel Details

This display panel utilizes ADS (Advanced Super Dimension Switch) technology with normally black, transmissive display mode. The surface features glare treatment with hard coating (3H hardness) for durability. Response time is 20ms (typical) for Tr+Td, ensuring smooth performance for various applications.

Application Recommendations

Recommended for laptop computers, industrial control systems, portable devices, and other applications requiring high-quality display performance in compact form factors. The integrated On-Cell touch capability makes it ideal for interactive applications.

Production Note: This model entered mass production in Q1 2021 and is currently in production. Specifications and production status are subject to change. For integration into your products, we strongly recommend contacting BOE or their authorized agents for the latest production and specification details.
