Sharp 6inch E-Paper LCD Display LS060S2UD01 with 600*800pixels Resolution and 32Pin FPC for E-Book Reader

Name: Sharp 6inch E-Paper LCD Display LS060S2UD01 with 600*800pixels Resolution and 32Pin FPC for E-Book Reader
Brand: FOCUS VISION TECHNOLOGY LIMITED
SKU: LS060S2UD01
Price: 29.00 USD
Availability: InStock

Brand Name:	sharp
Model Number:	LS060S2UD01
MOQ:	10pcs
Price:	negotiation
Payment Terms:	T/T
Supply Ability:	30000pcs per week

Detail Information

Product Description

Detail Information

Place of Origin:

Japan

Certification:

rosh,ce,fcc

Material:

Glass

Contact:

32Pin FPC

Resolution:

600*800pixels,166PPI

Panel Type:

LCM

Contrast Ratio:

15:1

Input Voltage:

3.3V

Viewing Angle:

Packaging Details:

Industrial package

Highlight:

LS060S2UD01 CG Silicon display panel

166PPI E Paper Lcd Display

Product Description

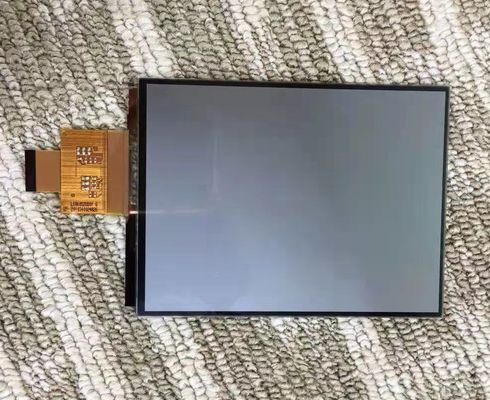

Sharp 6-inch E-Paper LCD Display LS060S2UD01

The Sharp LS060S2UD01 is a 6.0-inch diagonal CG-Silicon display panel designed specifically for e-book reader applications. This reflective memory LCD features no backlight and no touch screen, optimized for optimal reading experience.

Product Specifications

Panel Brand	Sharp
Panel Model	LS060S2UD01
Panel Size	6.0"
Panel Type	CG-Silicon, LCM
Resolution	600*800 SVGA, 166 PPI
Display Area	91.8(W)*122.4(H) mm
Outline Size	96.8(W)*132.8(H) mm
Viewing Angle	55/55/55/55 (Typ.)(CR≥2) Left/Right/Up/Down
Contrast Ratio	15:1 (Typ.) (RF)
Display Mode	TN, Normally White, Reflective
Response Time	10/20 (Typ.)(Tr/Td)
Display Colors	Grayscale
Weight	36.0g
Signal Interface	CPU, 32 pins FPC
Input Voltage	3.3V (Typ.)
Operating Temperature	-20 ~ 70°C
Storage Temperature	-30 ~ 80°C
Touch Screen	Without
Application	E-Book Reader

Key Features

Portrait orientation design
Reflective memory LCD technology
No backlight required
Grayscale display optimized for text
Lightweight at only 36.0g
Wide operating temperature range

Important Note: This model began mass production in Q1 2010 and is now discontinued. We strongly recommend contacting Sharp or their authorized agents for the latest production status and specification details before integrating this display into your product. The information provided is for reference only and should not be used as the sole basis for decision-making.
