Sharp 6inch E-Paper Lcd Display LS060S2UD01 For E-Book Reader

Sharp 6inch E-Paper Lcd Display LS060S2UD01 For E-Book Reader
Sharp 6inch E-Paper Lcd Display LS060S2UD01 For E-Book Reader Sharp 6inch E-Paper Lcd Display LS060S2UD01 For E-Book Reader

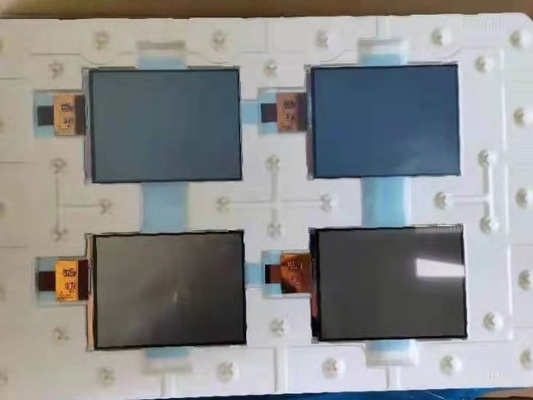

Large Image :  Sharp 6inch E-Paper Lcd Display LS060S2UD01 For E-Book Reader

Product Details:
Place of Origin: Japan
Brand Name: sharp
Certification: rosh,ce,fcc
Model Number: LS060S2UD01
Payment & Shipping Terms:
Minimum Order Quantity: 10pcs
Price: negotiation
Packaging Details: Industrial package
Delivery Time: 4-5 days
Payment Terms: T/T
Supply Ability: 30000pcs per week
Detailed Product Description
Material: Glass Contact: 32Pin FPC
Resolution: 600*800pixels,166PPI Panel Type: LCM
Contrast Ratio: 15:1 Input Voltage: 3.3V
Viewing Angle: 55
High Light:

LS060S2UD01 CG Silicon display panel

,

166PPI E Paper Lcd Display

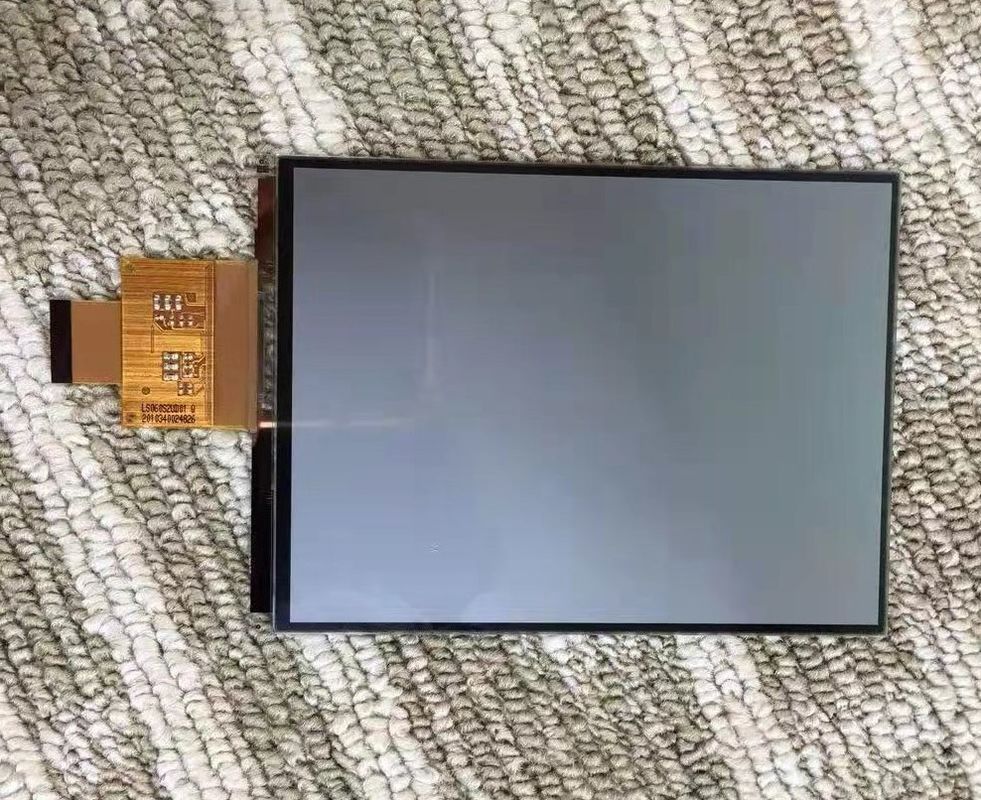

Sharp 6inch e-paper lcd display LS060S2UD01 for e-book reader



LS060S2UD01 is a 6.0" diagonal CG-Silicon display panel product from Sharp Corporation (hereafter called Sharp), without backlight, without touch screen. It features an operating temperature range of -20 ~ 70°C , a storage temperature range of -30 ~ 80°C . It's general features are summarized by einklcd in the following: Portrait type, Reflective , Memory LCD. Based on its features, einklcd recommend that this model be applied to E-Book Reader etc. According to the information stored in einklcd this model mass production on Q1, 2010, Now this model is discontinued. We inputted this model's specification on Apr 10 2013 for the first time, and the latest update on Jan 22 2017. If you want to embed the LCM in your future product, einklcd strongly recommend that you should contact with Sharp or it's agent to learn lateast production and specification detail of LS060S2UD01. The production status marked on einklcd.com is for reference only and should not be used as the basis for the user's decision making.



Sharp 6inch E-Paper Lcd Display LS060S2UD01 For E-Book Reader 0



Panel Brand
Panel Size
Resolution
Display Area
Outline Size
Brightness
Viewing Angle
Best View on
Display Colors
Frequency
Weight
Sharp
6.0"
600(BW)×800, SVGA, 166PPI
91.8(W)×122.4(H) mm
96.8(W)×132.8(H) mm
-
55/55/55/55 (Typ.)(CR≥2) Left / Right / Up / Down
-
Grayscale
-
36.0g
Panel Model
Panel Type
Pixel Format
Bezel Opening
Surface
Contrast Ratio
Display Mode
Response Time
Lamp Type
Touch Screen
Application
LS060S2UD01
CG-Silicon , LCM
-
-
-
15:1 (Typ.) (RF)
TN, Normally White, Reflective [Panelook copyright, copy is strictly prohibited]
IPS Family: AAS, ADS, AHVA, FFS, IPS, New Mode2, PLS, SFT, Vistarich
VA Family: ASV, HVA, MVA, PVA, SVA, UV²A, VA
10/20 (Typ.)(Tr/Td)
No B/L
Without
E-Book Reader
Signal Interface CPU , 32 pins FPC
Input Voltage 3.3V (Typ.)
Environment Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C
