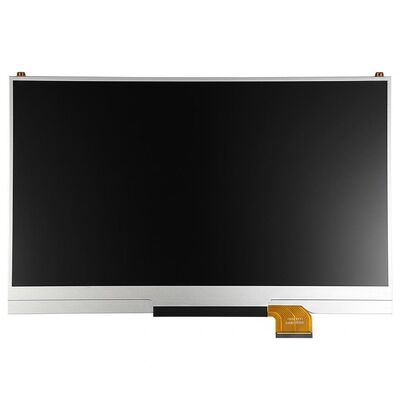

BOE 12.5Inch 3840×2160 400CD/M2 PC LCD Module Desktop Monitor Module with 40PIN Connector

Name: BOE 12.5Inch 3840×2160 400CD/M2 PC LCD Module Desktop Monitor Module with 40PIN Connector
Brand: FOCUS VISION TECHNOLOGY LIMITED
SKU: NV125QUM-N81
Price: 30.00 USD
Availability: InStock

Brand Name:	BOE
Model Number:	NV125QUM-N81
MOQ:	10pcs
Price:	Negotiation
Payment Terms:	T/T,W,Western Union,MoneyGram
Supply Ability:	3000pcs per week

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Rohs,CE,FCC

Quality:

Brand New Original

Package:

Original Industrial Packing

Brightnerss:

400CD/M2

Connector:

40PIN

Color:

16.7M

Contrast Ratio:

1500:1

Working Life:

15K Hours

Resolution:

3840*2160pixels

Voltage Supply:

3.3V

Signal Type:

EPD

Packaging Details:

Industrial packing

Highlight:

NV125QUM-N81 LCD PC Module

Desktop PC LCD Module 400CD/M2

3840×2160 Desktop PC LCD Module

Product Description

EDP 352PPI Desktop PC LCD Module BOE 12.5Inch 3840*2160 400CD/M2 40PIN

High-Resolution Display Module

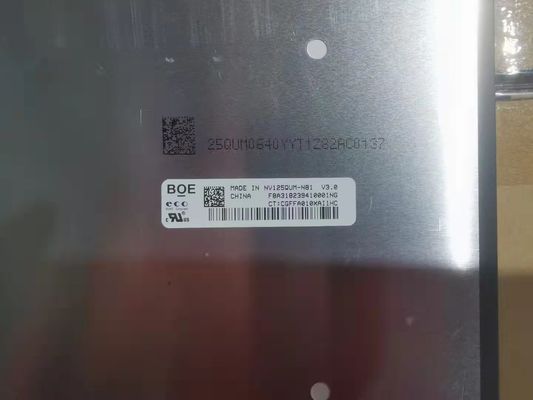

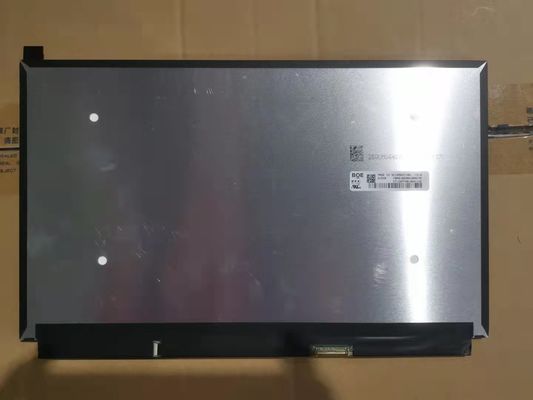

The NV125QUM-N81 is a 12.5-inch diagonal a-Si TFT-LCD display panel from BOE Technology Group Co., Ltd., featuring an integrated WLED backlight system with LED driver. This module delivers exceptional image quality with UHD resolution and comprehensive color support.

Technical Specifications

Panel Brand	BOE	Panel Model	NV125QUM-N81
Panel Size	12.5"	Panel Type	a-Si TFT-LCD, LCM
Resolution	3840(RGB)*2160, UHD, 352PPI	Pixel Format	RGB Vertical Stripe
Display Area	276.48(W)*155.52(H) mm	Outline Size	282.08(W)168.89(H)4.6(D) mm
Surface	Antiglare	Brightness	400 cd/m² (Typ.)
Contrast Ratio	1500:1 (Typ.) (TM)	Viewing Angle	85/85/85/85 (Typ.)(CR≥10)
Display Mode	HADS, Normally Black, Transmissive	Best View	Symmetry
Response Time	35ms (Typ.)(Tr+Td)	Display Colors	16.7M 100% Adobe RGB
Lamp Type	8S8P WLED, 15K hours, With LED Driver	Frequency	60Hz
Touch Screen	Without	Shape Style	Slim (PCBA Bent, T≤3.0mm)

Interface & Electrical Specifications

Signal Interface: eDP (4 Lanes), eDP1.3, HBR2 (5.4G/lane), 40 pins Connector
Input Voltage: 3.3V (Typ.)

Environmental Specifications

Operating Temperature: 0 ~ 50 °C
Storage Temperature: -20 ~ 60 °C
Maximal Vibration Level: 1.5G (14.7 m/s²)

Application & Features

Primary Applications: Laptop, Pad & Tablet
Key Features: Adobe RGB, sRGB, WLED Backlight, With LED Driver, Reverse I/F, Matte, eDP1.3

Important Note: This model entered mass production in Q4 2016 and is currently discontinued. The production status information is for reference only and should not be used as the basis for decision making. For current production status and latest specifications, please contact BOE or their authorized agents directly.
