BOE 21.5 Inch PC LCD Module with 1920×1080 Resolution 250 cd/m² Brightness and 30K Hours Working Life

BOE 21.5 Inch PC LCD Module with 1920×1080 Resolution 250 cd/m² Brightness and 30K Hours Working Life

BOE 21.5 Inch PC LCD Module with 1920×1080 Resolution 250 cd/m² Brightness and 30K Hours Working Life

Brand Name: BOE
Model Number: MV215FHM-N72
MOQ: 10pcs
Price: Negotiation
Payment Terms: T/T,W,Western Union,MoneyGram
Supply Ability: 3000pcs per week
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
Rohs,CE,FCC
Quality:
Brand New Original
Package:
Original Industrial Packing
Brightnerss:
250CD/M2
Connector:
30PIN
Color:
16.7M
Contrast Ratio:
1000:1
Working Life:
30K Hours
Resolution:
1920*1080pixels
Voltage Supply:
5.0V
Signal Type:
LVDS
Packaging Details:
Industrial packing
Highlight:

250CD/M2 30PIN Desktop Monitor Module

,

MV215FHM-N72 PC LCD Module

,

BOE 21.5Inch LCD Monitor Module

Product Description
LVDS 102PPI Desktop Monitor Module BOE 21.5Inch MV215FHM-N72 1920*1080
The MV215FHM-N72 is a 21.5-inch diagonal a-Si TFT-LCD display panel from BOE Technology Group Co., Ltd., featuring an integrated WLED backlight system. This high-quality monitor module offers Full HD resolution with 102 PPI density, making it ideal for desktop monitor applications.
Key Features
  • Full HD 1920*1080 resolution with 102 PPI pixel density
  • 3-side borderless design for seamless integration
  • sRGB color gamut covering 100% sRGB for accurate color reproduction
  • WLED backlight with 30,000-hour lifespan
  • Matte anti-glare surface with hard coating (3H)
  • TUV Low Blue Light certification for reduced eye strain
  • LVDS interface with 30-pin connector
  • Reverse type display technology
Technical Specifications
BrandBOE
ModelMV215FHM-N72
Diagonal Size21.5 inch
Display Typea-Si TFT-LCD, LCM
Resolution1920(RGB)*1080 [FHD] 102PPI
Active Area476.064(H) * 267.786(V) mm
Outline Dimensions484.464(H) * 284.486(V) * 12.9(D) mm
Brightness250 cd/m² (Typical)
Contrast Ratio1000:1 (Typical)
Response Time14ms (Typical, G to G)
Viewing Angle89/89/89/89 (CR≥10)
Operating ModeADS, Normally Black, Transmissive
Color Support16.7M colors, 100% sRGB
InterfaceLVDS (2 ch, 8-bit), 30-pin connector
Power Supply5.0V (Typical)
Weight1.80 kg (Typical)
Frame Rate60Hz
Touch PanelWithout touch screen
Environmental Specifications
Operating Temperature0°C to 50°C
Storage Temperature-20°C to 60°C
Maximal Vibration Level1.5G (14.7 m/s²)

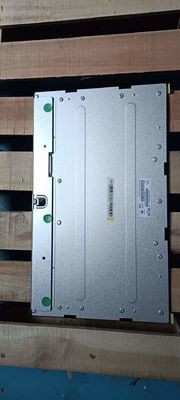

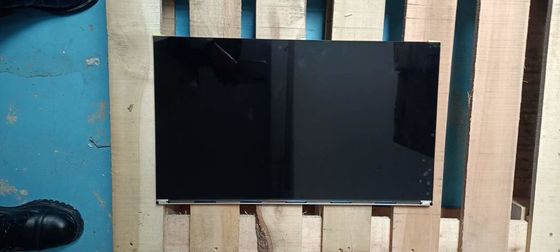

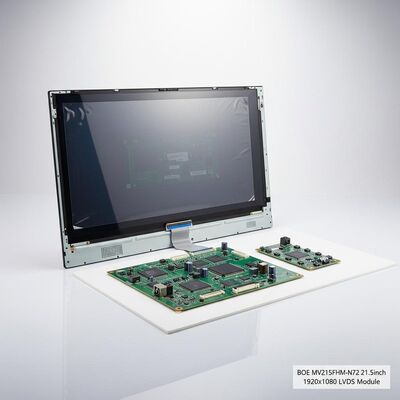

Product Images
BOE 21.5 Inch PC LCD Module with 1920×1080 Resolution 250 cd/m² Brightness and 30K Hours Working Life 0 BOE 21.5 Inch PC LCD Module with 1920×1080 Resolution 250 cd/m² Brightness and 30K Hours Working Life 1
Important Note: This model entered mass production in Q1 2023 and is currently in production. For the latest production status and detailed specifications for integration into your products, we strongly recommend contacting BOE or their authorized agents directly. All specification details are provided for reference purposes only and should be verified with the manufacturer.
