Product Details:
|
| Quality: | Brand New Original | Package: | Original Industrial Packing |
|---|---|---|---|
| Brightnerss: | 400CD/M2 | Connector: | 36PIN |
| Color: | 16.7M | Contrast Ratio: | 800:1 |
| Working Life: | 15K Hours | Touch Panel: | Without |
| Resolution: | 1200*800pixels | Voltage Supply: | 3.3V |
| Signal Type: | LVDS | ||
| High Light: | 149PPI PC LCD Module,LVDS 1280x800 PC LCD Module,AUO 10.1inch TFT LCD Display |
||
AUO 10.1inch 1280(RGB)×800 (WXGA) 149PPI cd/m2 Desktop 400Lcd Monitor 36pin 800:1 3.3V 16.7M color LVDS

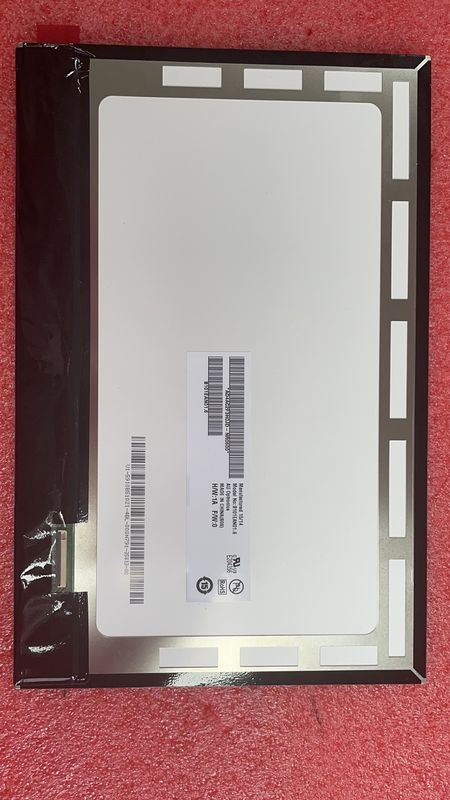

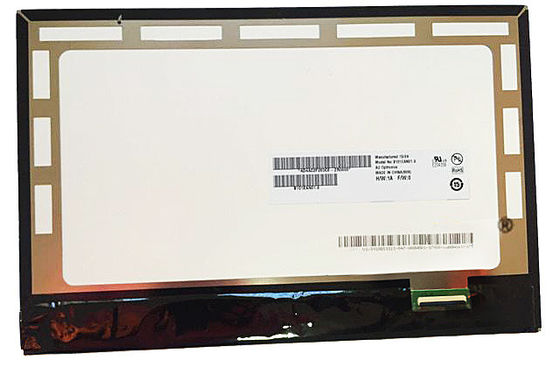

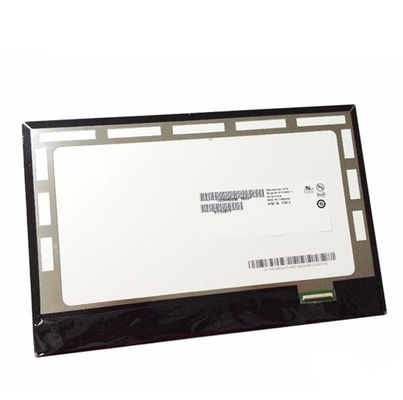

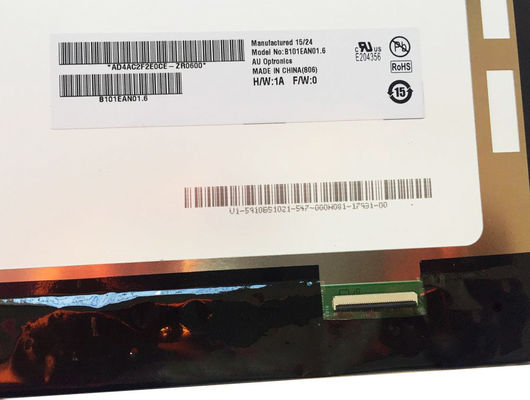

B101EAN01.6 is a 10.1" diagonal a-Si TFT-LCD display panel product from AU Optronics Corp. (hereafter called AUO), with an integral WLED backlight system, without backlight driver, without touch screen. It features an operating temperature range of 0 ~ 50°C , a storage temperature range of -20 ~ 60°C , and the maximal vibration level of 1.5G (14.7 m/s²). It's general features are summarized by einklcd in the following: WLED Backlight, Reverse I/F, Glossy . Based on its features, einklcd recommend that this model be applied to Pad & Tablet etc. According to the information stored in einklcd this model mass production on Q2, 2014, Now this model is discontinued. We inputted this model's specification on Nov 10 2014 for the first time, and the latest update on Jul 24 2018. If you want to embed the LCM in your future product, einklcd strongly recommend that you should contact with AUO or it's agent to learn lateast production and specification detail of B101EAN01.6. The production status marked on einklcd.com is for reference only and should not be used as the basis for the user's decision making.
| Manufacturer |
|---|
| Screen Size |
| Pixel Number |
| Active Area(mm) |
| Bezel Area(mm) |
| Luminance |
| Viewing Angle |
| Good View at |
| Color Depth |
| Mass |
| Refresh Rate |
| AUO |
| 10.1 inch |
| 1280(RGB)×800 (WXGA) 149PPI |
| 216.96 × 135.6 (H×V) |
| - |
| 400 (Typ.)(cd/m²) |
| 89/89/89/89 (Typ.)(CR≥10) |
| Symmetry |
| 16.7M 50% NTSC |
| 140g (Max.) |
| 60Hz |
| Model Name |
| Screen Type |
| Arrangement |
| Outline(mm) |
| Treatment |
| Contrast Ratio |
| Work Mode |
| Response |
| Backlight |
| Used for |
| Touchscreen |
| B101EAN01.6 |
| LCM , a-Si TFT-LCD |
| RGB Vertical Stripe |
| 227.72 × 147.8 × 4.6 (H×V×D) |
| Glare (Haze 0%), Hard coating (3H) |
| 800 : 1 (Typ.) (TM) |
| AHVA, Normally Black, Transmissive |
| 30 (Typ.)(Tr+Td) ms |
| 6S4P WLED , 15K hours , No Driver |
| Without |
| Signal Type | LVDS (1 ch, 8-bit) , 36 pins Connector |
|---|---|
| Voltage Supply | 3.3V (Typ.) |
| Max. Ratings | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
