AUO 10.1inch 1280x800 Resolution LVDS PC LCD Module with 16.7M Color and 400cd/m² Brightness

Name: AUO 10.1inch 1280x800 Resolution LVDS PC LCD Module with 16.7M Color and 400cd/m² Brightness
Brand: FOCUS VISION TECHNOLOGY LIMITED
SKU: B101EAN01.6
Price: 30.00 USD
Availability: InStock

Brand Name:	AUO
Model Number:	B101EAN01.6
MOQ:	10pcs
Price:	Negotiation
Payment Terms:	T/T,W,Western Union,MoneyGram
Supply Ability:	3000pcs per week

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Rohs,CE,FCC

Quality:

Brand New Original

Package:

Original Industrial Packing

Brightnerss:

400CD/M2

Connector:

36PIN

Color:

16.7M

Contrast Ratio:

800:1

Working Life:

15K Hours

Touch Panel:

Without

Resolution:

1200*800pixels

Voltage Supply:

3.3V

Voltage Supply:

3.3V

Signal Type:

LVDS

Packaging Details:

Industrial packing

Highlight:

149PPI PC LCD Module

LVDS 1280x800 PC LCD Module

AUO 10.1inch TFT LCD Display

Product Description

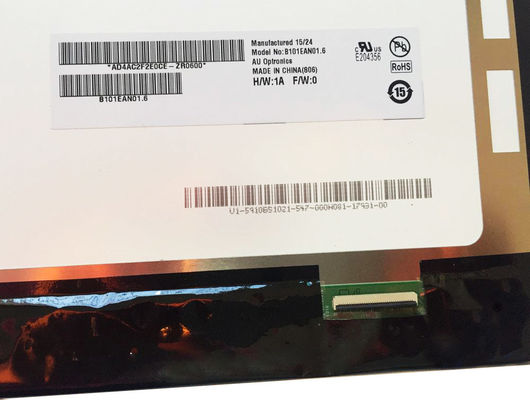

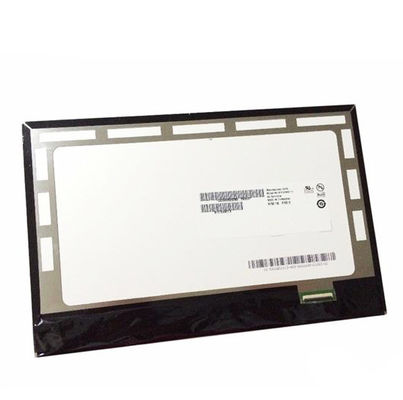

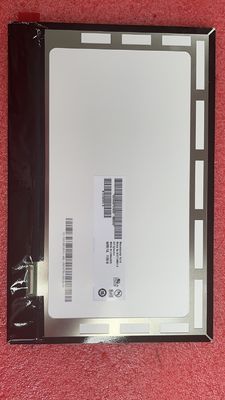

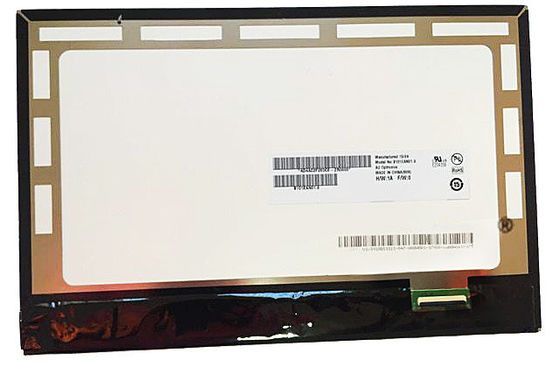

AUO B101EAN01.6 10.1-inch LCD Display Module

High-performance 10.1-inch TFT-LCD display module featuring 1280*800 WXGA resolution with 149 PPI pixel density. This LVDS interface module delivers 16.7 million colors with 400 cd/m² brightness and 800:1 contrast ratio.

Key Specifications

Manufacturer	AU Optronics Corp. (AUO)
Model	B101EAN01.6
Screen Size	10.1 inch
Resolution	1280(RGB)*800 (WXGA) - 149 PPI
Active Area	216.96 * 135.6 mm (H*V)
Brightness	400 cd/m² (Typical)
Contrast Ratio	800:1 (Typical)
Viewing Angle	89/89/89/89 (CR≥10)
Color Depth	16.7 Million Colors (50% NTSC)

Technical Features

Display Technology: a-Si TFT-LCD with AHVA mode
Interface: LVDS (1 channel, 8-bit), 36-pin connector
Power Supply: 3.3V (Typical)
Backlight: 6S4P WLED, 15,000 hours lifetime
Response Time: 30 ms (Typical, Tr+Td)
Surface Treatment: Glare (Haze 0%), Hard coating (3H)
Operating Mode: Normally Black, Transmissive

Environmental Specifications

Operating Temperature	0°C to 50°C
Storage Temperature	-20°C to 60°C
Vibration Resistance	1.5G (14.7 m/s²) maximum

Physical Dimensions

Outline: 227.72 * 147.8 * 4.6 mm (H*V*D)
Mass: 140g (Maximum)

Important Note: This model (B101EAN01.6) has been discontinued. For current production status and latest specifications, please contact AU Optronics Corp. or their authorized agents directly. The information provided is for reference only and should not be used as the sole basis for decision making.

Recommended Applications: Tablet computers, portable devices, industrial displays, and embedded systems requiring high-resolution LCD performance.
