SAMSUNG 15" 1024x768 Resolution 250cd/m2 Brightness 20pin LVDS Connector Desktop LCD Monitor LTM150XH-L01

Name: SAMSUNG 15" 1024x768 Resolution 250cd/m2 Brightness 20pin LVDS Connector Desktop LCD Monitor LTM150XH-L01
Brand: FOCUS VISION TECHNOLOGY LIMITED
SKU: LTM150XH-L01
Price: 30.00 USD
Availability: InStock

Brand Name:	SAMSUNG
Model Number:	LTM150XH-L01
MOQ:	10pcs
Price:	Negotiation
Payment Terms:	T/T,W,Western Union,MoneyGram
Supply Ability:	3000pcs per week

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Rohs,CE,FCC

Quality:

Brand New Original

Package:

Original Industrial Packing

Brightnerss:

250CD/M2

Connector:

20PIN

Color:

16.2M

Contrast Ratio:

300:1

Working Life:

35K Hours

Touch Panel:

Without

Resolution:

1024*768pixels

Voltage Supply:

3.3V

Signal Type:

LVDS

Packaging Details:

Industrial packing

Highlight:

85PPI Desktop Lcd Module

1024x768 Desktop Lcd Module

LTM150XH-L01

Product Description

SAMSUNG 15" 1024x768 85PPI Desktop LCD Module LTM150XH-L01

Samsung LTM150XH-L01 is a 15.0-inch diagonal a-Si TFT-LCD display panel with integrated CCFL backlight system. This XGA resolution module features LVDS interface and is designed for desktop monitor applications.

Key Features

15.0-inch XGA display (1024*768 resolution)
250 cd/m² typical luminance
300:1 contrast ratio
16.2 million color support
LVDS interface with 20-pin connector
3.3V operating voltage
Antiglare surface treatment with hard coating

Technical Specifications

Manufacturer	SAMSUNG
Model Name	LTM150XH-L01
Screen Size	15.0 inch
Screen Type	LCM, a-Si TFT-LCD
Resolution	1024(RGB)*768 (XGA) 85PPI
Active Area	304.128 * 228.096 mm (H*V)
Outline Dimensions	331.6 * 254.8 * 13 mm (HVD)
Luminance	250 cd/m² (Typ.)
Contrast Ratio	300:1 (Typ.)
Viewing Angle	70/70/55/65 (Typ.)(CR≥10)
Response Time	5/20 ms (Typ.)(Tr/Td)
Color Depth	16.2M colors, 65% NTSC
Backlight	4 CCFL lamps, 35K hours lifespan, No Driver
Signal Type	LVDS (1 ch, 8-bit), 20 pins Connector
Voltage Supply	3.3V (Typ.)
Operating Temperature	0 ~ 50°C
Storage Temperature	-20 ~ 60°C
Mass	1.35 kg (Max.)
Refresh Rate	60Hz
Touchscreen	Without

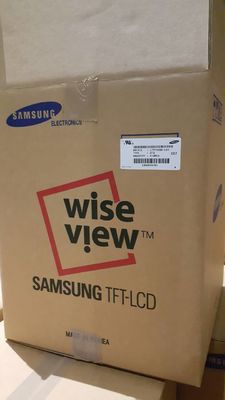

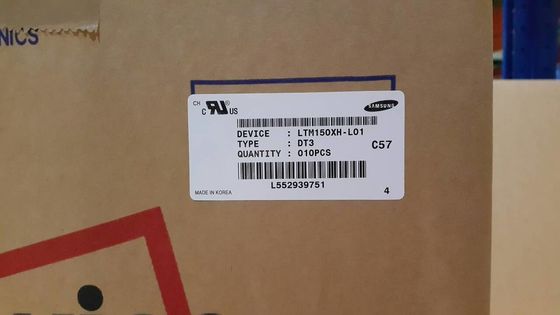

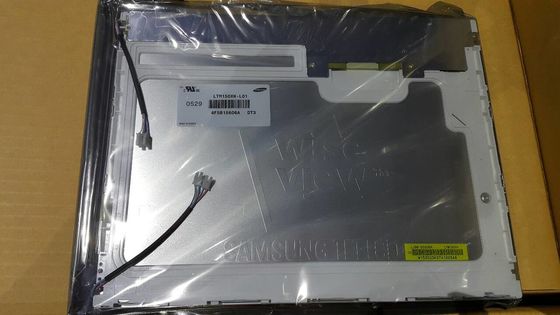

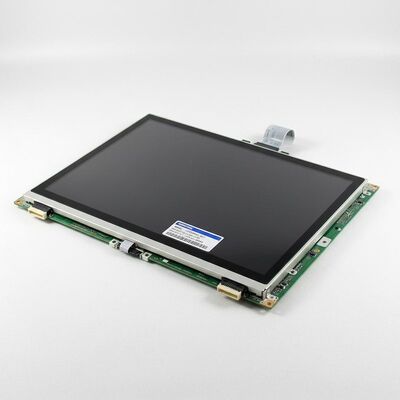

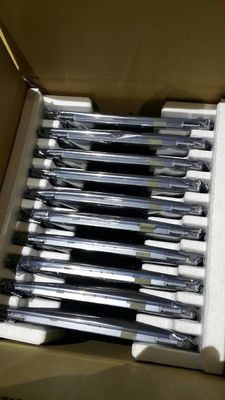

Product Images

Important Note: This model began mass production in Q2 2000 and is now discontinued. For current production status and latest specifications, please contact SAMSUNG or their authorized distributors directly.
