SAMSUNG 15" 1024(RGB)×768 (XGA) 85PPI 250cd/m2 Desktop Lcd Monitor LTM150XH-L01 20pin 300:1 3.3V 16.2M color LVDS

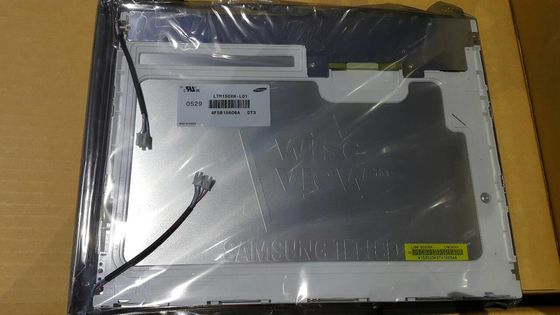

Samsung Display Co., Ltd. (hereafter called SAMSUNG) LTM150XH-L01 is a 15.0 inch diagonal a-Si TFT-LCD display panel product, with an integral CCFL backlight system, without backlight driver, without touch screen. It features an operating temperature range of 0 ~ 50°C , a storage temperature range of -20 ~ 60°C . It's general features are summarized by Panelook in the following: Lamp Repaceable, Matte . Based on its features, Einklcd recommend that this model be applied to Desktop Monitor etc. According to the information stored in Einklcd this model mass production on Q2, 2000, Now this model is discontinued.  We inputted this model's specification on Jan 5 2011 for the first time, and the latest update on Aug 26 2017. If you want to embed LTM150XH-L01 LCM in your future product, Einklcd strongly recommend that you should contact with SAMSUNG or it's distributor to learn lateast production and specification detail. The LTM150XH-L01 production status marked on Einklcd.com is for reference only and should not be used as the basis for the user's decision making.

Manufacturer

SAMSUNG

Model Name

LTM150XH-L01

Screen Size

15.0 inch

Screen Type

LCM , a-Si TFT-LCD

Pixel Number

1024(RGB)×768 (XGA) 85PPI

Arrangement

RGB Vertical Stripe

Active Area(mm)

304.128 × 228.096 (H×V)

Outline(mm)

331.6 × 254.8 × 13 (H×V×D)

Bezel Area(mm)

307.2 × 231.1 (H×V)

Treatment

Antiglare (Haze 25%), Hard coating (3H)

Luminance

250 cd/m² (Typ.)

Contrast Ratio

300 : 1 (Typ.) (TM)

Viewing Angle

70/70/55/65 (Typ.)(CR≥10)

Response

5/20 (Typ.)(Tr/Td) ms

Good View at

6 o'clock

Work Mode

TN, Normally White, Transmissive

Color Depth

16.2M 65% NTSC

Backlight

4 pcs CCFL , 35K hours , No Driver

Mass

1.35Kgs (Max.)

Used for

Refresh Rate

60Hz

Touchscreen

Without

Signal Type

LVDS (1 ch, 8-bit) , 20 pins Connector

Voltage Supply

3.3V (Typ.)

Max. Ratings

Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C
