IVO M140NWR6 R3 14 Inch 1366×768 Resolution 220 cd/m² Brightness TFT-LCD Display PC LCD Module

IVO M140NWR6 R3 14 Inch 1366×768 Resolution 220 cd/m² Brightness TFT-LCD Display PC LCD Module

IVO M140NWR6 R3 14 Inch 1366×768 Resolution 220 cd/m² Brightness TFT-LCD Display PC LCD Module

Brand Name: IVO
Model Number: M140NWR6 R3
MOQ: 10pcs
Price: Negotiation
Payment Terms: T/T,W,Western Union,MoneyGram
Supply Ability: 3000pcs per week
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
Rohs,CE,FCC
Quality:
Brand New Original
Package:
Original Industrial Packing
Resolution:
1366*768pixels
Style:
FHD 30P
Brightness:
220 CCD M2
Color:
262K
Contrast Ratio:
500 :1
Working Life:
15K Hours
Packaging Details:
Industrial packing
Highlight:

1936 * 768 Laptop Lcd Screen

,

14 Inch Lcd Display Panel

Product Description
M140NWR6 R3 IVO 14 Inch 1936*768 Flat Screen Monitor
Product Overview
Panel Brand IVO
Panel Model M140NWR6 R3
Panel Size 14.0"
Panel Type a-Si TFT-LCD, LCM
Resolution 1366*768 (WXGA)
Pixel Format RGB Vertical Stripe
Display Specifications
Display Area 309.399*173.952 mm
Brightness 220 cd/m² (Typical)
Contrast Ratio 500:1 (Typical)
Viewing Angle 45/45/15/35 (CR≥10)
Display Mode TN, Normally White
Best View Position 6 o'clock
Response Time 8ms (Typical)
Display Colors 262K (45% NTSC)
Technical Specifications
Backlight Type WLED, 15K hours
Refresh Rate 60Hz
Touch Screen Without
Signal Interface eDP (1 Lane)
Input Voltage 3.3V (Typical)
Environmental Specifications
Operating Temperature 0°C to 50°C
Storage Temperature -20°C to 60°C

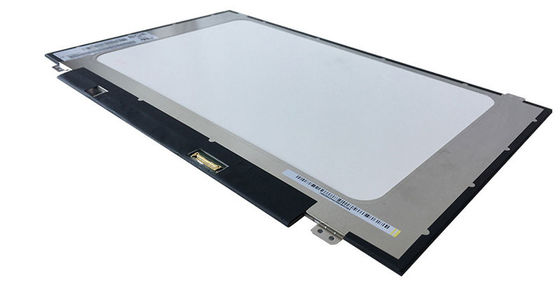

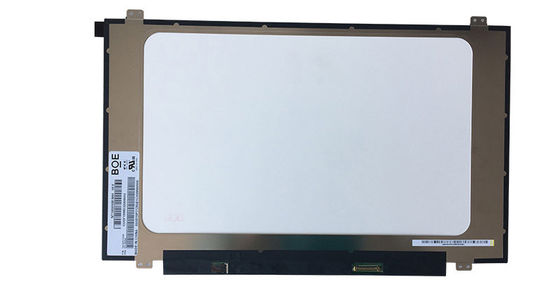

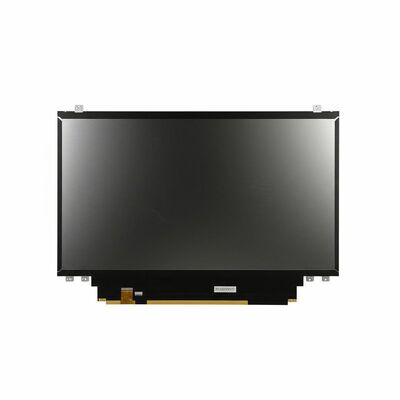

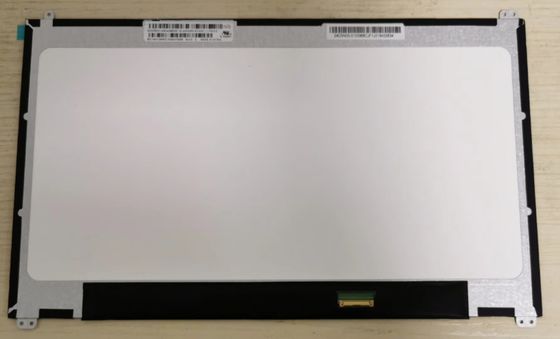

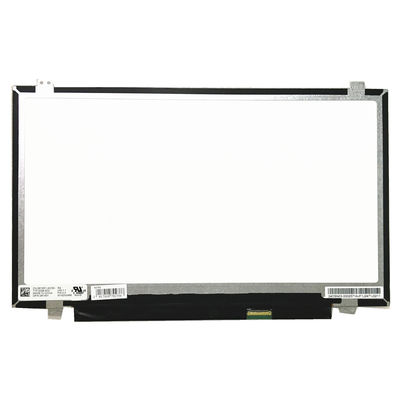

Product Images
IVO M140NWR6 R3 14 Inch 1366×768 Resolution 220 cd/m² Brightness TFT-LCD Display PC LCD Module 0 IVO M140NWR6 R3 14 Inch 1366×768 Resolution 220 cd/m² Brightness TFT-LCD Display PC LCD Module 1 IVO M140NWR6 R3 14 Inch 1366×768 Resolution 220 cd/m² Brightness TFT-LCD Display PC LCD Module 2
