LG 7 Inch PC LCD Module with 800*1280 Pixels 490CD/M2 Brightness and 34 Pin Connector

Name: LG 7 Inch PC LCD Module with 800*1280 Pixels 490CD/M2 Brightness and 34 Pin Connector
Brand: FOCUS VISION TECHNOLOGY LIMITED
SKU: LD070WX4-SM01
Price: 30.00 USD
Availability: InStock

Brand Name:	LG
Model Number:	LD070WX4-SM01
MOQ:	10pcs
Price:	Negotiation
Payment Terms:	T/T,W,Western Union,MoneyGram
Supply Ability:	3000pcs per week

Detail Information

Product Description

Detail Information

Place of Origin:

korea

Certification:

Rohs,CE,FCC

Quality:

Brand New Original

Package:

Original Industrial Packing

Material:

Glass Oled

Color:

16.2m Colors

Model:

XGA

Style:

Wide Screen High Resolution 800*1280Pixels

Brightness:

490cd

Connector:

Contrast Ratio:

800:1

Working Time:

30k Hours

Packaging Details:

Industrial packing

Highlight:

lcd display panel

lcd digital display

Product Description

LG 7 Inch PDA Tablet PC LCD Module LD070WX4-SM01

Product Overview

LG 7-inch PDA Tablet PC LCD screen LD070WX4-SM01 featuring 800*1280 pixels resolution, 490 cd/m² brightness, and 34-pin MIPI interface.

Technical Specifications

Panel Brand LG Display

Panel Model LD070WX4-SM01

Panel Size 7.0"

Panel Type a-Si TFT-LCD, LCM

Resolution 800*1280 (WXGA)

Pixel Format RGB Vertical Stripe

Brightness 490 cd/m² (Typ.)

Contrast Ratio 800:1 (Typ.)

Viewing Angle 85/85/85/85 (Typ.)

Display Mode IPS, Normally Black

Response Time 50ms (Max.)

Display Colors 16.7M

Backlight 5S5P WLED

Signal Interface MIPI (4 lanes), 34 pins

Input Voltage 3.3V (Typ.)

Operating Temp. -10°C to 60°C

Storage Temp. -20°C to 70°C

Panel Weight 85.0g (Max.)

Product Details

The LD070WX4-SM01 is a 7.0" diagonal a-Si TFT-LCD display panel from LG Display featuring an integrated WLED backlight system without driver. This portrait-type display is designed for applications including Amazon Kindle Fire 7HD and is recommended for pad and tablet devices. The panel entered mass production in Q2 2013 and remains in current production.

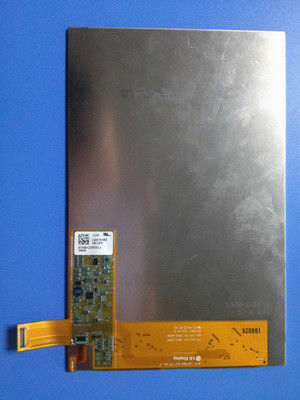

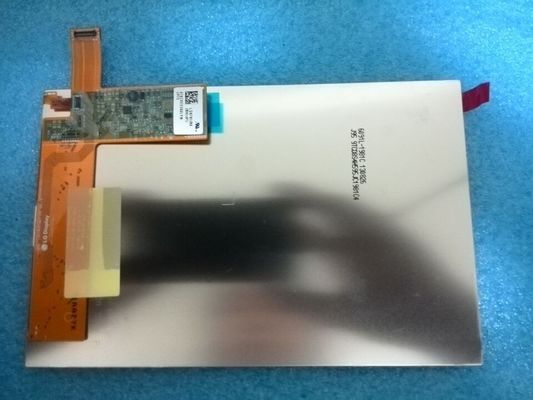

Product Images

For integration into your products, we strongly recommend contacting LG Display or their authorized agents for the latest production status and detailed specifications. The information provided is for reference only and should not be used as the sole basis for decision-making.
