| Brand Name: | innolux |
| Model Number: | NJ101IA-01S |
| MOQ: | 10pcs |
| Price: | Negotiation |
| Packaging Details: | Industrial packing |
| Payment Terms: | T/T,W, Western Union, MoneyGram |

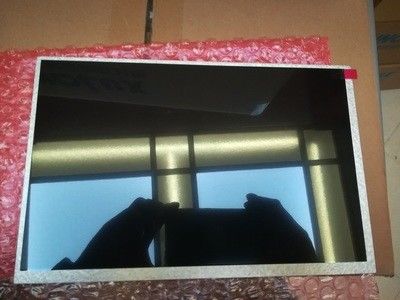

NJ101IA-01S 1280*800 Pixels Lcd Display Panel Innolux 10.1" 500ccd/m2 40 Pin For Tablet PC PAD
Panel Brand
Innolux
Panel Model
NJ101IA-01S
Panel Size
10.1"
Panel Type
a-Si TFT-LCD, LCM
Resolution
1280(RGB)×800 , WXGA
Pixel Format
RGB Vertical Stripe
Display Area
216.96(W)×135.6(H) mm
Bezel Opening
219.46(W)×138.1(H) mm
Outline Size
229.46(W)×149.1(H) ×7.7(D) mm
Surface
Hard coating
Brightness
500 cd/m² (Typ.)
Contrast Ratio
800:1 (Typ.) (TM)
Viewing Angle
85/85/85/85 (Typ.)(CR≥10)
Display Mode
IPS, Normally Black, Transmissive
Best View on
Symmetry
Response Time
10/15 (Typ.)(Tr/Td)
Display Colors
16.7M 50% (CIE1931)
Lamp Type
WLED , 20K hours , Without Driver
Frequency
60Hz
Touch Screen
Without
Panel Weight
292.7g (Typ.)
Application
PAD and PC
Signal Interface
LVDS (1 ch, 8-bit) , 40 pins , Connector
Input Voltage
2.5/8.2/22.0/-7.0V (Typ.)(VDD/AVDD/VGH/VGL)
Environment
Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C
The NJ101IA-01S is a 10.1 inch diagonal a-Si TFT-LCD display panel product from Innolux Corporation (hereafter called Innolux), with an integral WLED backlight system, without backlight driver, without touch screen. It features an operating temperature range of -20 ~ 70°C , a storage temperature range of -30 ~ 80°C . It's general features are summarized by EINKLCD in the following: WLED Backlight . Based on its features, EINKLCD recommend that this model be applied to Pad & Tablet etc. According to the information stored in EINKLCD this model mass production on Q4, 2014, Now this model is in production. We inputted this model's specification on Jan 13 2015 for the first time, and the latest update on Mar 2 2018. If you want to embed NJ101IA-01S LCM in your future product, Einklcd strongly recommend that you should contact with Innolux or it's agent to learn lateast production and specification detail. The NJ101IA-01S production status marked on einklcd.com is for reference only and should not be used as the basis for the user's decision making
All lcd products we sell are brand new !
|
|
