Innolux NJ101IA-01S 10.1 Inch 1280x800 Resolution 500cd/m2 Brightness LCD Display Panel for Tablet PC PAD

Name: Innolux NJ101IA-01S 10.1 Inch 1280x800 Resolution 500cd/m2 Brightness LCD Display Panel for Tablet PC PAD
Brand: FOCUS VISION TECHNOLOGY LIMITED
SKU: NJ101IA-01S
Price: 30.00 USD
Availability: InStock

Brand Name:	innolux
Model Number:	NJ101IA-01S
MOQ:	10pcs
Price:	Negotiation
Payment Terms:	T/T,W,Western Union,MoneyGram
Supply Ability:	3000pcs per week

Detail Information

Product Description

Detail Information

Place of Origin:

china

Certification:

Rohs,CE,FCC

Quality:

Brand New Original

Package:

Original Industrial Packing

Material:

Glass Oled

Color:

16.7m Colors

Model:

WLED

Style:

Wide Screen High Resolution 1280*800

Brightness:

500cd

Connector:

40PIN

Contrast Ratio:

800:1

Working Time:

20k Hours

Packaging Details:

Industrial packing

Highlight:

lcd digital display

lcd touch screen module

Product Description

NJ101IA-01S 10.1" LCD Display Panel

High-resolution 1280*800 WXGA LCD display panel from Innolux, designed for tablet PCs and PAD applications with excellent brightness and viewing angles.

Technical Specifications

Panel Brand	Innolux
Panel Model	NJ101IA-01S
Panel Size	10.1 inches
Panel Type	a-Si TFT-LCD, LCM
Resolution	1280(RGB)*800 (WXGA)
Pixel Format	RGB Vertical Stripe
Display Area	216.96*135.6 mm
Brightness	500 cd/m² (Typical)
Contrast Ratio	800:1 (Typical)
Viewing Angle	85/85/85/85 (CR≥10)
Display Mode	IPS, Normally Black, Transmissive
Response Time	10/15 ms (Tr/Td)
Display Colors	16.7 Million
Backlight	WLED, 20K hours lifespan

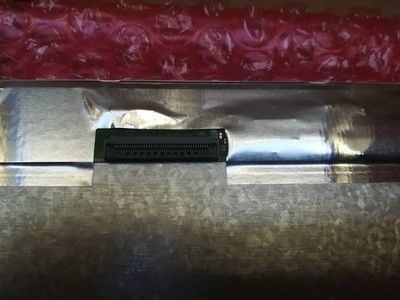

Signal Interface	LVDS (1 ch, 8-bit), 40-pin connector
Operating Temperature	-20°C to 70°C
Storage Temperature	-30°C to 80°C
Panel Weight	292.7g (Typical)

Product Overview

The NJ101IA-01S is a 10.1-inch TFT-LCD display panel featuring an integrated WLED backlight system without driver or touch screen. This IPS panel delivers excellent color reproduction and wide viewing angles, making it ideal for tablet PC and PAD applications.

Physical Dimensions

Display Area: 216.96*135.6 mm
Bezel Opening: 219.46*138.1 mm
Outline Size: 229.46*149.1*7.7 mm
Surface: Hard coating

Production Status: This model entered mass production in Q4 2014 and is currently in production. For the latest specifications and availability, we recommend contacting Innolux or their authorized agents.

Quality Assurance: All LCD products we sell are brand new and guaranteed for quality and performance.
