| Brand Name: | LG |
| Model Number: | LA058WQ1-SD01 |
| MOQ: | 10pcs |
| Price: | Negotiation |
| Packaging Details: | Industrial packing |
| Payment Terms: | T/T,W, Western Union, MoneyGram |

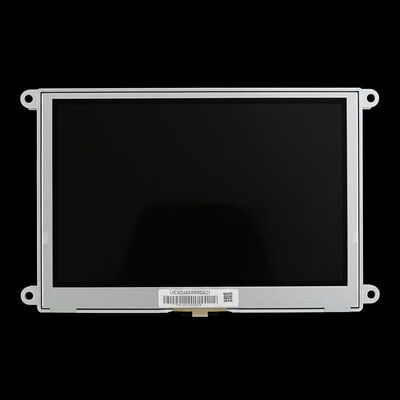

Manufacturer
LG Display
Model Name
LA058WQ1-SD01
Screen Size
5.8 inch
Screen Type
LCM, a-Si TFT-LCD
Pixel Number
400(RGB)×240 (WQVGA)
Arrangement
RGB Vertical Stripe
Active Area(mm)
126.36 × 75.84 (H×V)
Outline(mm)
152 × 97 (H×V×D)
Bezel Area(mm)
130.8 × 80.3 (H×V)
Treatment
Antiglare (Haze 11%), Antireflection
Luminance
470 cd/m² (Min.)
Contrast Ratio
900 : 1 (Typ.) (TM)
Viewing Angle
70/70/30/30 (Typ.)(CR≥10)
Response
15/10 (Typ.)(Tr/Td) ms
Good View at
Symmetry
Work Mode
IPS, Normally Black, Transmissive
Color Depth
262K 63% (CIE1931)
Backlight
7S1P WLED , 20K hours , No Driver
Mass
211/216g (Typ./Max.)
Used for
Refresh Rate
60Hz
Touchscreen
Without
Signal Type
Parallel RGB (1 ch, 6-bit) , FPC , 40 pins
Voltage Supply
3.3V (Typ.)
Max. Ratings
Storage Temp.: -40 ~ 105 °C Operating Temp.: -40 ~ 95 °C
It's 470cd/m2 lcd MODEL for industrial lcd,Car GPS Navigator screen BENZ A180
All our LCD LED screen monitor module panel products will be full test one by one before sending .
|
|
