20 Inch LCD TV Panel with 1366*768 Pixels Resolution and 410cd/m2 Brightness

Brand Name:	LG
Model Number:	LC200WX1-SLB3
MOQ:	10pcs
Price:	Negotiation
Payment Terms:	T/T,W,Western Union,MoneyGram
Supply Ability:	3000pcs per week

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Rohs,CE,FCC

Quality:

Brand New Original

Package:

Original Industrial Packing

Resolution:

1366*768

Style:

30PIN IPS

Brightness:

410 CD/M2

Color:

16.7M

Contrast Ratio:

600 :1

Packaging Details:

Industrial packing

Highlight:

flat screen tv panel

lcd tv display panel

Product Description

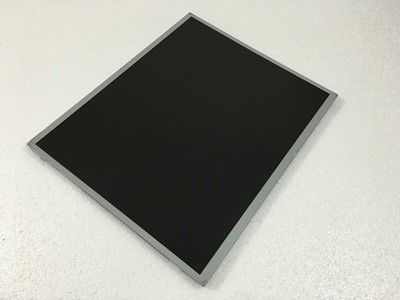

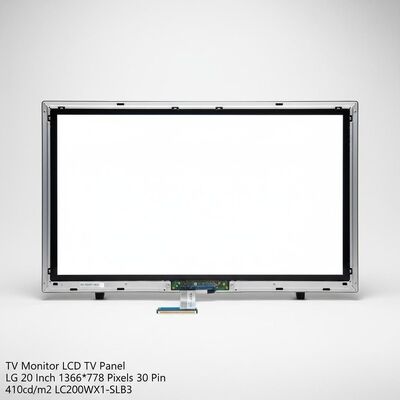

TV Monitor LCD Panel - LG 20 Inch WXGA Display

Product Overview

High-quality LG.Philips LCD panel featuring 20-inch diagonal size with 1366*768 WXGA resolution, designed for professional display applications.

Technical Specifications

Parameter	Specification
Brand	LG.Philips LCD
Model	LC200WX1-SLB3
Diagonal Size	20.0 inch
Pixel Format	1366(RGB)*768 [WXGA]
Active Area	443.609(H)*249.408(V) mm
Bezel Area	448.0(H)*253.8(V) mm
Luminance	410 cd/m² (Typical)
Contrast Ratio	600:1 (Typical)
Viewing Angle	89/89/89/89 (Typical, CR≥10)
Response Time	8/9 ms (Typical, Tr/Td)
Support Color	16.7 Million
Weight	2.80 kg (Typical)
Frame Rate	60Hz

Display Technology

Type: a-Si TFT-LCD, LCM
Configuration: RGB Vertical Stripe
Operating Mode: IPS, Normally Black, Transmissive
Light Source: CCFL [5 pcs], 60K hours, With Inverter
Surface Treatment: Antiglare, Hard coating (3H)

Interface & Power

Interface Type: 30 pins LVDS (1 ch, 8-bit), Connector
Power Supply: 12.0V (Typical)
Outline Dimensions: 472(H)*275(V)*38.5(D) mm

Environmental Specifications

Operating Temperature: 0°C to 50°C
Storage Temperature: -20°C to 60°C

Quality Assurance: All original products undergo comprehensive testing before shipment. Detailed specification documents available upon request - please contact us for complete technical documentation.
