9.7 inch E Ink Display with Anti Glare Hard Coating and 1200x825 Resolution for Ebook Readers

9.7 inch E Ink Display with Anti Glare Hard Coating and 1200x825 Resolution for Ebook Readers

9.7 inch E Ink Display with Anti Glare Hard Coating and 1200x825 Resolution for Ebook Readers

Brand Name: PVI
Model Number: ED097OC4
MOQ: 10pcs
Price: Negotiation
Payment Terms: T/T,W,Western Union,MoneyGram
Supply Ability: 3000pcs per week
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
Rohs,CE,FCC
Quality:
Brand New Original
Quality:
Brand New Original
Quality:
Brand New Original
Package:
Original Industrial Packing
Version:
Ebook Reader Use
Version:
Ebook Reader Use
Connector:
33P
Resolution:
1200*825pixels
Color:
White And Black
Material:
Glass
Packaging Details:
Industrial packing
Highlight:

arduino epaper display

,

electronic paper display monitor

Product Description
ED097OC4 Flexible E Paper Display
PVI EPD 9.7-inch black and white e-paper display with anti-glare hard coating, CE/FCC certified. Ideal for applications including Amazon Kindle DXG and other e-reader devices.
Technical Specifications
Brand PVI
Model ED097OC4
Diagonal Size 9.7 inch
Display Type EPD (Electronic Paper Display)
Pixel Format 1200 * 825
Configuration Rectangle
Active Area 202.8(H) * 139.425(V) mm
Outline Dimensions 218.8(H) * 156.425(V) mm
Surface Treatment Anti-glare, Hard coating
Contrast Ratio 12:1 (Typ.) (RF)
Response Time 1000ms (Max.) (update)
Operating Mode Reflective
Supported Colors Grayscale
Light Source No Backlight
Weight 80.0 ± 5.0g
Frame Rate 50Hz
Interface Type 33 pins Parallel Data (1ch, 8-bit), FPC
Operating Temperature 0°C ~ 50°C
Storage Temperature -25°C ~ 70°C

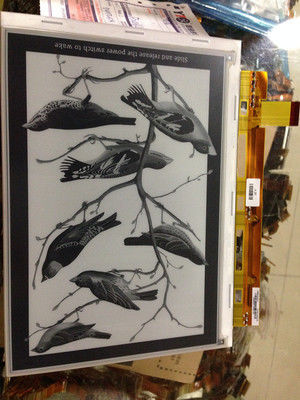

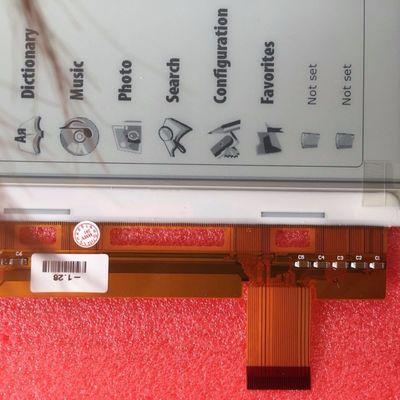

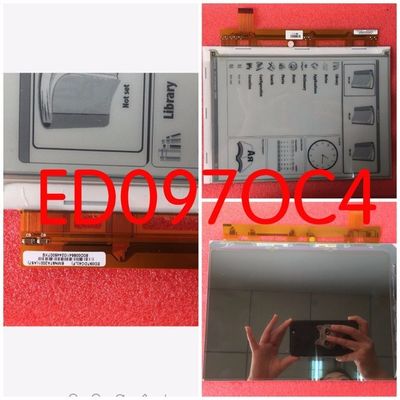

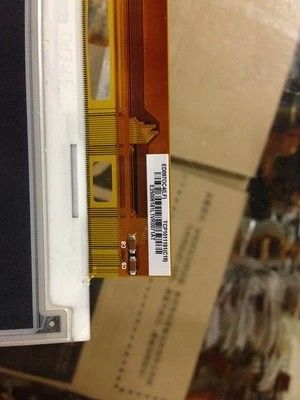

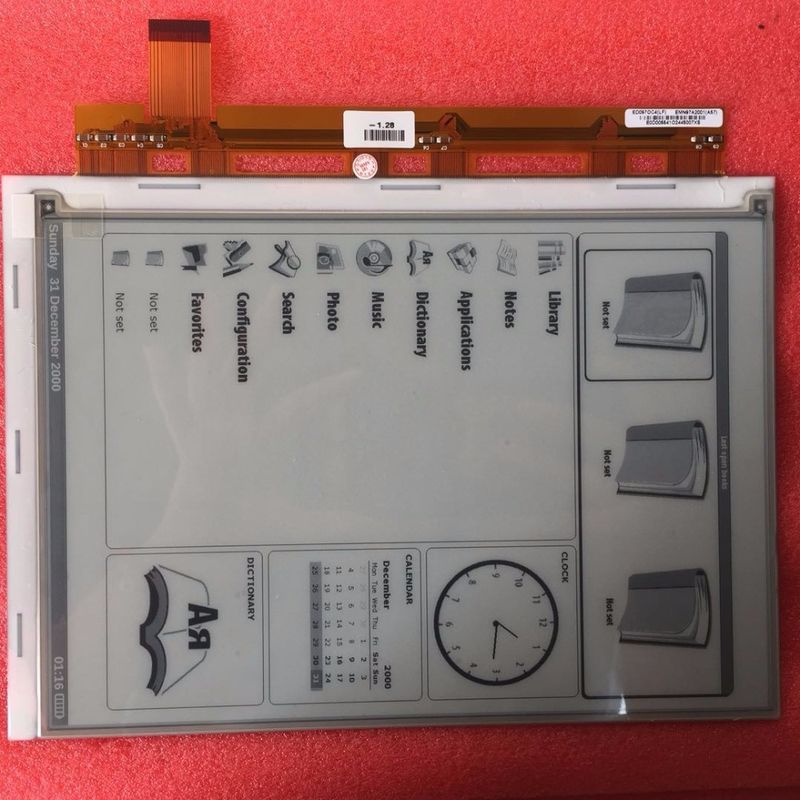

Product Images
9.7 inch E Ink Display with Anti Glare Hard Coating and 1200x825 Resolution for Ebook Readers 0 9.7 inch E Ink Display with Anti Glare Hard Coating and 1200x825 Resolution for Ebook Readers 1 9.7 inch E Ink Display with Anti Glare Hard Coating and 1200x825 Resolution for Ebook Readers 2 9.7 inch E Ink Display with Anti Glare Hard Coating and 1200x825 Resolution for Ebook Readers 3 9.7 inch E Ink Display with Anti Glare Hard Coating and 1200x825 Resolution for Ebook Readers 4 9.7 inch E Ink Display with Anti Glare Hard Coating and 1200x825 Resolution for Ebook Readers 5
Quality Assurance
All original products undergo comprehensive testing before shipment
Each unit is individually tested to ensure optimal performance
Additional Information
Complete specification details available upon request. Please contact us via email for detailed technical documentation.
