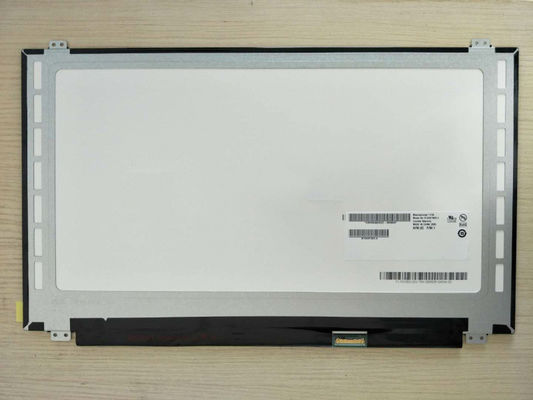

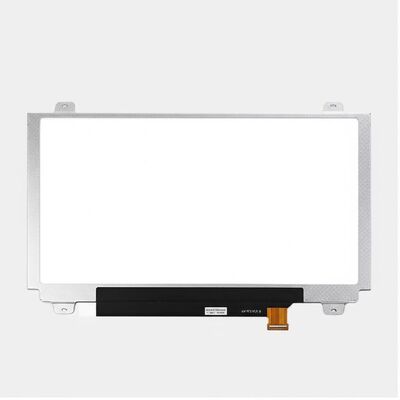

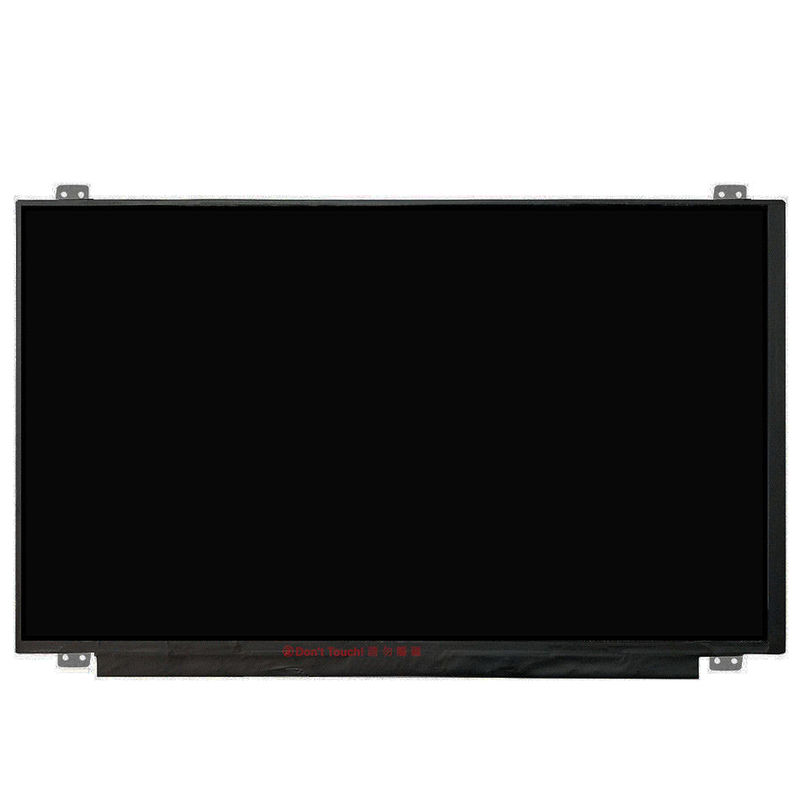

B156HTN03.8 PC LCD Module 15.6 Inch TFT-LCD Display Panel with 1920x1080 Resolution 220 CCD Brightness and 30 Pin Connector

Name: B156HTN03.8 PC LCD Module 15.6 Inch TFT-LCD Display Panel with 1920x1080 Resolution 220 CCD Brightness and 30 Pin Connector
Brand: FOCUS VISION TECHNOLOGY LIMITED
SKU: b156htn03.8
Price: 30.00 USD
Availability: InStock

Brand Name:	auo
Model Number:	b156htn03.8
MOQ:	10pcs
Price:	Negotiation
Payment Terms:	T/T,W,Western Union,MoneyGram
Supply Ability:	3000pcs per week

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Rohs,CE,FCC

Quality:

Brand New Original

Package:

Original Industrial Packing

Resolution:

1920*1080pixels

Style:

WLED30P

Brightness:

220 CCD M2

Color:

262K

Contrast Ratio:

400 :1

Working Life:

15K Hours

Packaging Details:

Industrial packing

Highlight:

lcd touch screen module

lcd digital display

Product Description

B156HTN03 8 PC LCD Module High Resolution For HP Tablet PC 220 CCD 30 Pin Replacement

Product Overview

AUO 15.61-inch LCD display B156HTN03.8 designed as a replacement for HP tablet PCs, featuring 1920*1080 resolution, 220 cd/m² brightness, and 30-pin connector interface.

Technical Specifications

Panel Brand	AUO
Panel Model	B156HTN03.8 (AUO38ED)
Panel Size	15.6 inch
Panel Type	a-Si TFT-LCD, LCM
Resolution	1920(RGB) * 1080, FHD
Pixel Format	RGB Vertical Stripe
Display Area	344.16(W) * 193.59(H) mm
Outline Size	359.5(W) * 223.8(H) * 3.2(D) mm
Surface	Antiglare
Brightness	220 cd/m² (Typ.)
Contrast Ratio	400:1 (Typ.) (TM)
Viewing Angle	45/45/15/35 (Typ.)(CR ≥10)
Display Mode	TN, Normally White, Transmissive
Best View on	6 o'clock
Response Time	8 (Typ.)(Tr+Td)
Display Colors	262K 45% (CIE1931)
Lamp Type	WLED, 15K hours, With LED Driver
Frequency	60Hz
Touch Screen	Without
Shape Style	Slim (PCBA Flat, Depth ≤3.2mm)
Signal Interface	eDP (2 Lanes), 30 pins, Connector
Input Voltage	3.3V (Typ.)
Operating Temperature	0 ~ 50 °C
Storage Temperature	-20 ~ 60 °C

Product Images

All products will be sent to customer after inspection one by one to ensure quality and performance standards.
